Запчасти Bobcat 331 MANIFOLD ASSY (331) 234313000-234316022, (331E) 234412000-234413148, (334) 234513000-234515932 HYDRAULIC SYSTEM

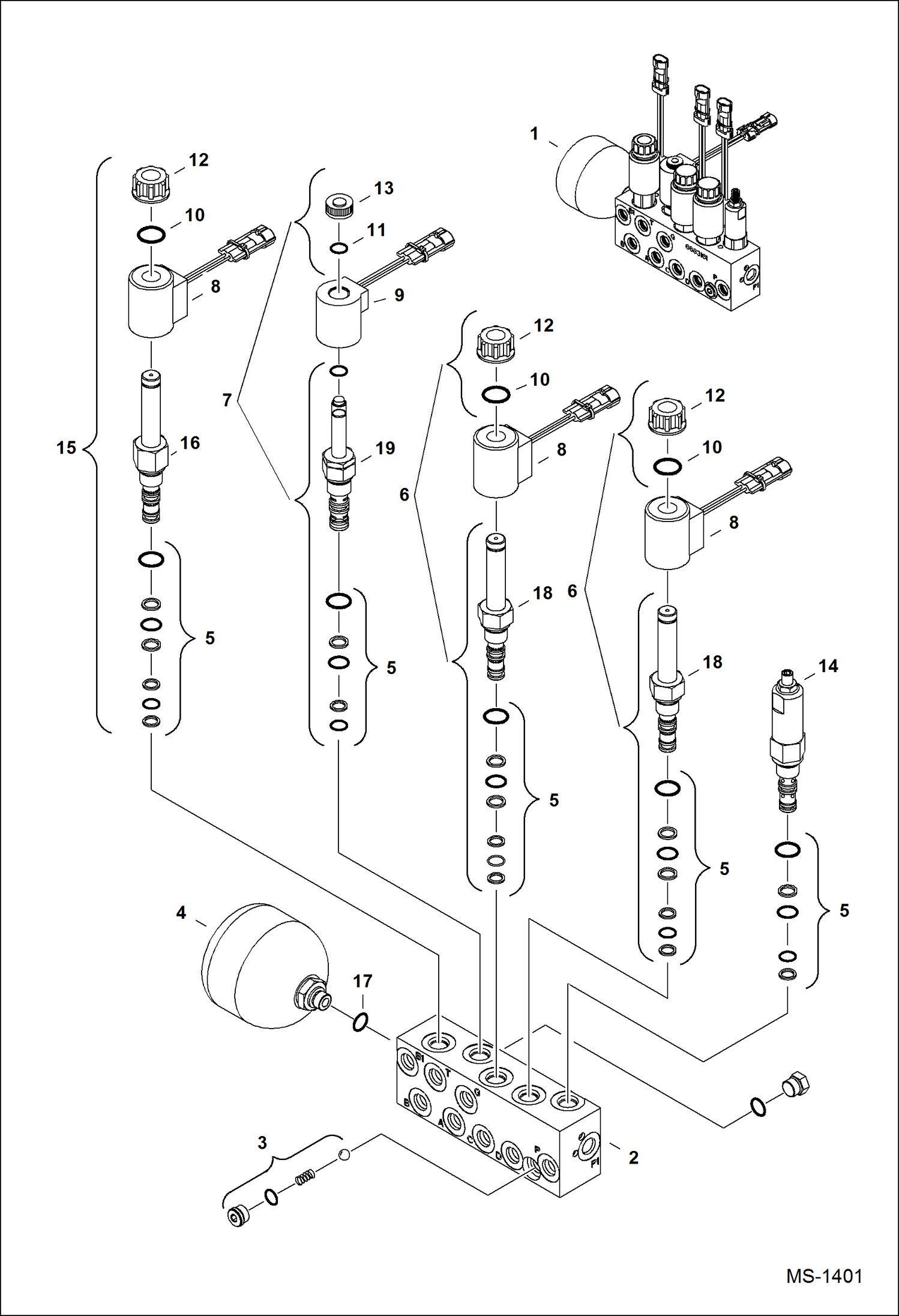

Схема запчастей Bobcat 331 - MANIFOLD ASSY (331) 234313000-234316022, (331E) 234412000-234413148, (334) 234513000-234515932 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

MANIFOLD See Illustration MANIFOLD ASSY/ MS1465 NLA - Ref. 2-17 - Order 6690054 - Was 6685162 - A

2

BLOCK NSS - Order Ref. 1

3

6678990

VALVE Assy.

4

6685832

ACCUMULATOR Was 6679031 - A

5

6679078

SEAL KIT

6

6679032

VALVE W/Ref. 5, 10, 12 & 18 - aux

7

6678988

VALVE W/Ref. 5, 11, 13 & 19 - 2 speed

8

6679074

COIL

9

6678984

COIL

10

6679684

O-RING

11

6679509

O-RING Was 6679865 - D

12

6679075

NUT

13

6679076

NUT

14

6685284

VALVE Was 6679033 - B,D

15

6683163

VALVE W/Ref. 5, 8, 10, 12 & 16 - assy - joysticks

16

6683162

VALVE

17

79K6

O RING 10

18

STEM NSS - Order Ref. 6

19

STEM NSS - Oreder Ref. 7

Выбрано товаров: 19
