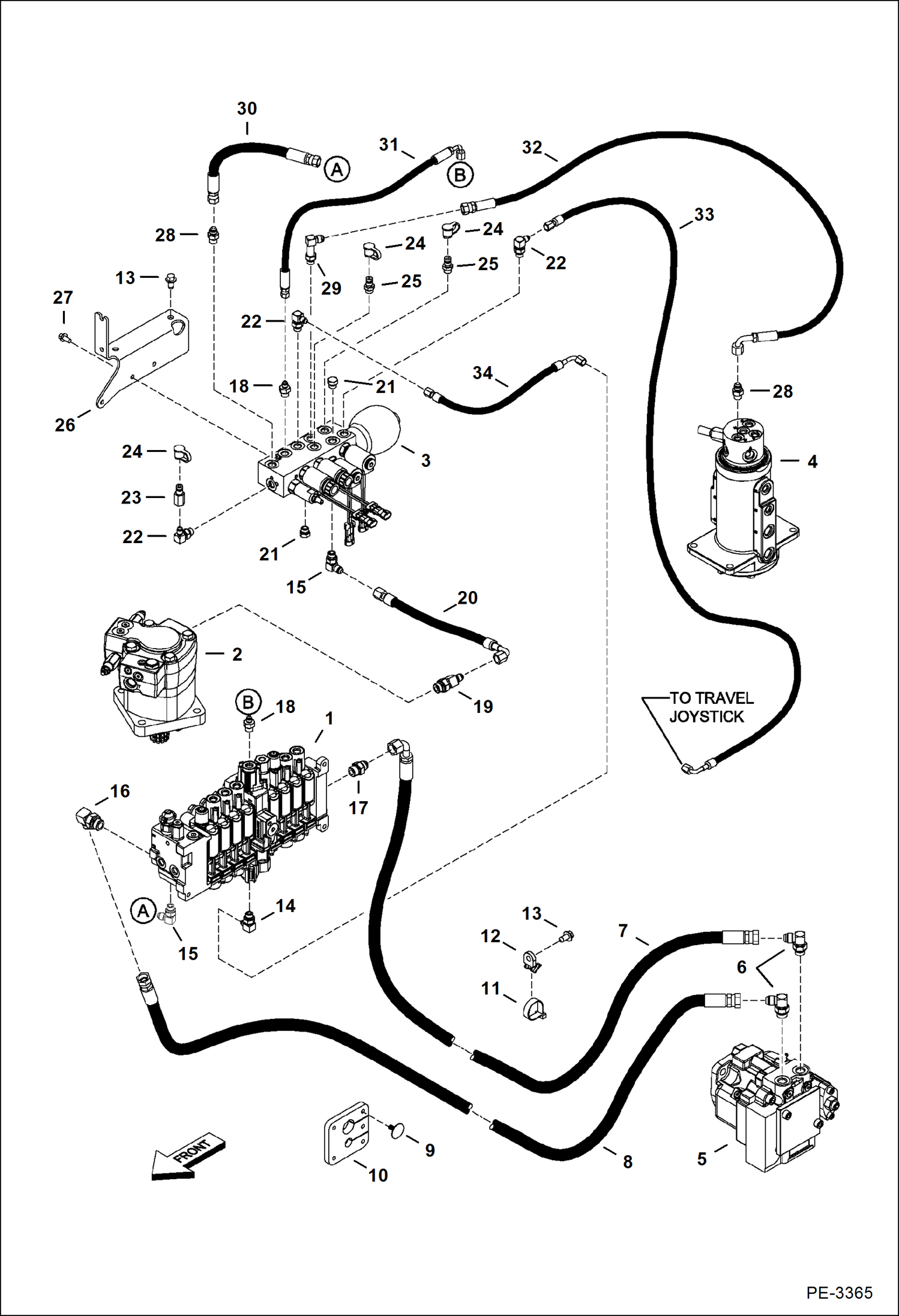

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Manifold & Pump) (331) 234316877 & Above, (331E) 234413319 & Above, (334) 234515533 & Above HYDRAULIC SYSTEM

1

VALVE ASSY See Illustration CONTROL VALVE/ MS1430 - control

2

7001955

MOTOR, DRIVE HYD SLEW See Illustration SWING MOTOR/ MS1847 - swing - Was 6687117 - A

3

MANIFOLD See Illustration MANIFOLD ASSY/ MS1401

4

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

5

6686525

PUMP, HYD See Illustration HYDRAULIC PISTON PUMP/ MS2048 - hydraulic

6

17KB0808

FITTING, HYD ELBOW

6

79K8

O RING 10

7

7107494

HOSE

8

7107495

HOSE

9

6664559

FASTENER

10

7110885

PLATE foam

11

6678669

STRAP

12

6679034

MOUNT

13

26GM10020

BOLT

14

7124150

ELBOW

14

79K6

O RING 10

15

17KB0606

FITTING

15

79K6

O RING 10

16

17KB0810

FITTING, HYD ELBOW

16

79K10

O RING 10

17

15KB0808

FITTING, HYD CONNECTOR

17

79K8

O RING 10

18

15KB0406

FTG HYD S CONNECTOR

18

79K6

O RING 10

19

21KB0608

FTG Hyd Straight Tee

19

79K8

O RING 10

20

7125140

HOSE

21

24K5

PLUG

21

79K6

O RING 10

22

17KB0406

FITTING, HYD ELBOW

22

79K6

O RING 10

23

7000009

PLUG diagnostic

24

6630367

CAP

25

6630168

COUPLER diagnostic

26

6807263

MOUNT manifold

27

29CM816

SCREW

28

15KB0606

FITTING, HYD CONNECTOR

28

79K6

O RING 10

29

6812815

FITTING

29

79K6

O RING 10

30

7107497

HOSE

31

6809329

HOSE

32

6587294

HOSE

33

7106605

HOSE

34

7125144

HOSE
