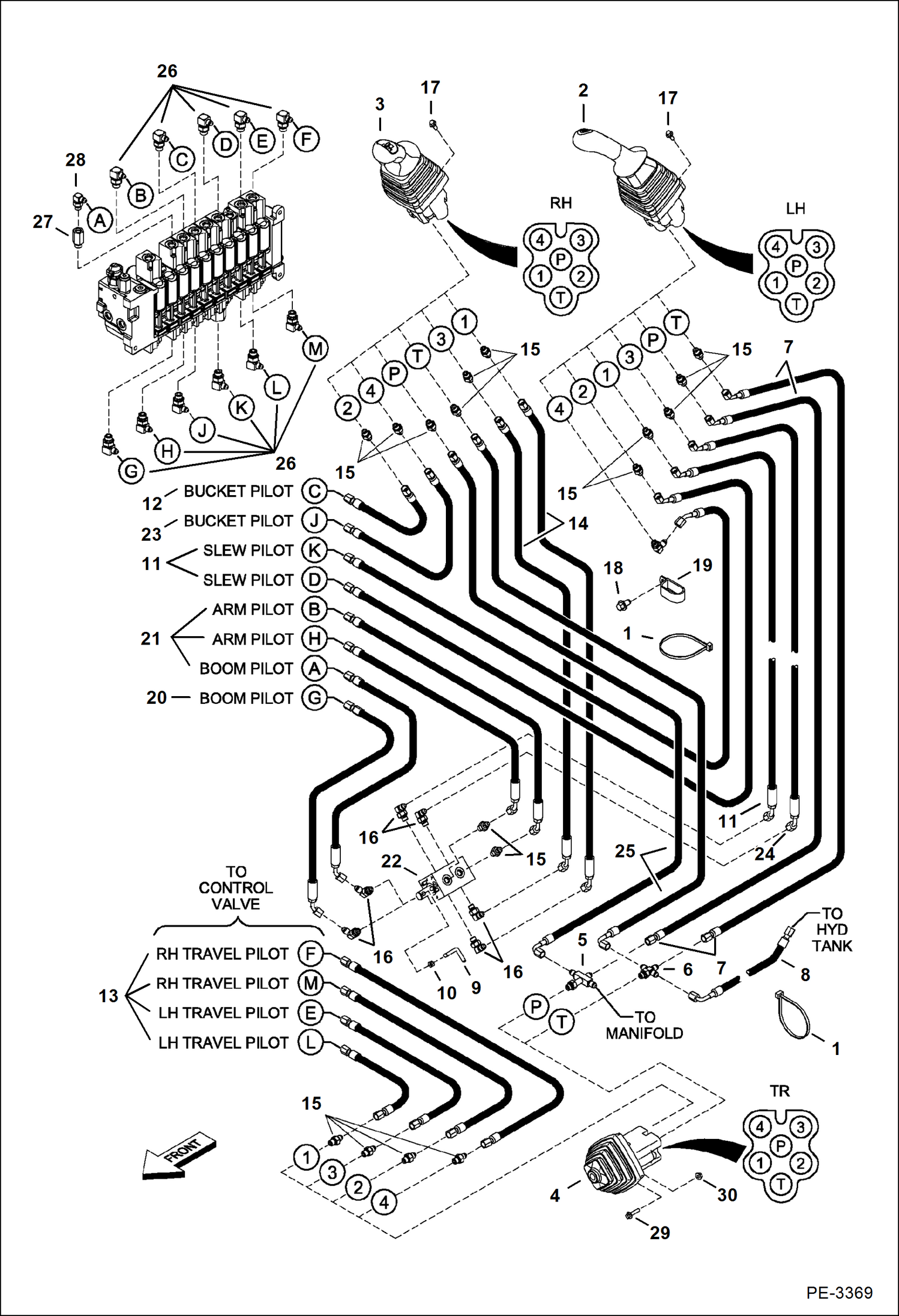

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Pilot ISO/STD) (S/N) (331) 234313000-234316876, (331E) 234412000-234413318, (334) 234513000-234515532 HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354 L.H.

3

6677895

JOYSTICK See Illustration R.H. JOYSTICK/ MS1352 RH

4

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351 travel

5

6812829

CROSS

5

79K4

O RING 10

6

6812830

CROSS

6

79K4

O RING 10

7

7106606

HOSE

8

7106608

HOSE

9

6804251

HANDLE

10

53DM6

NUT Was 1DM6 - A

11

7106614

HOSE

12

7106615

HOSE

13

7107647

HOSE

14

7106620

HOSE Was 6807483 - A

15

15KB0404

FTG HYD S Connector

15

79K4

O RING 10

16

17KB0404

FTG HYD ELBOW 90

16

79K4

O RING 10

17

26GM6020

SCREW

18

26GM10020

BOLT

18

26GM10016

SCREW

19

30H85

CLAMP

20

7106619

HOSE Was 6817255 - A

21

7106621

HOSE Was 6809341 - A

22

VALVE See Illustration SELECTOR VALVE ASSY/ TS1353

23

7106604

HOSE

24

7106612

HOSE

25

7107649

HOSE

26

7124150

ELBOW

26

79K6

O RING 10

27

6686900

ORIFICE

27

79K6

O RING 10

28

17KB0404

FTG HYD ELBOW 90

28

79K4

O RING 10

29

17C416

BOLT

30

83D4

NUT 10
