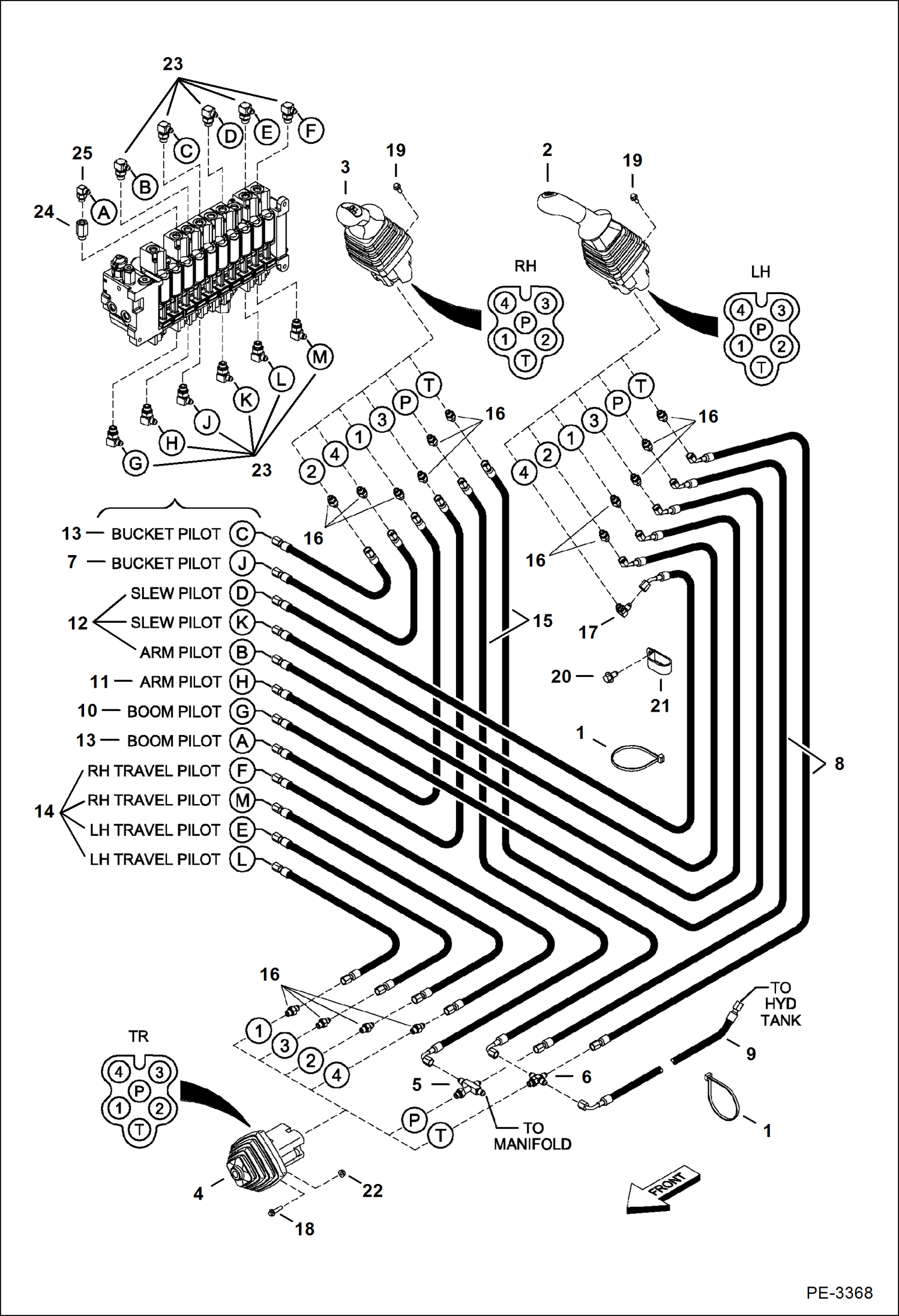

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Pilot) (S/N) (331) 234313000-234316876, (331E) 234412000-234413318, (334) 234513000-234515532 HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354 L.H.

3

6677895

JOYSTICK See Illustration R.H. JOYSTICK/ MS1352 RH

4

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351 travel

5

6812829

CROSS

5

79K4

O RING 10

6

6812830

CROSS

6

79K4

O RING 10

7

7106604

HOSE

8

7106606

HOSE

9

7106608

HOSE

10

7106611

HOSE

11

7106612

HOSE

12

7106614

HOSE

13

7106615

HOSE

14

7107647

HOSE

15

7107649

HOSE

16

15KB0404

FTG HYD S Connector

16

79K4

O RING 10

17

17KB0404

FTG HYD ELBOW 90

17

79K4

O RING 10

18

17C416

BOLT

19

26GM6020

SCREW

20

26GM10020

BOLT

20

26GM10016

SCREW

21

30H85

CLAMP

22

83D4

NUT 10

23

7124150

ELBOW

23

79K6

O RING 10

24

6686900

ORIFICE

24

79K6

O RING 10

25

17KB0404

FTG HYD ELBOW 90

25

79K4

O RING 10
