Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Tank & Pump) (331) 234316877 & Above, (331E) 234413319 & Above, (334) 234515533 & Above HYDRAULIC SYSTEM

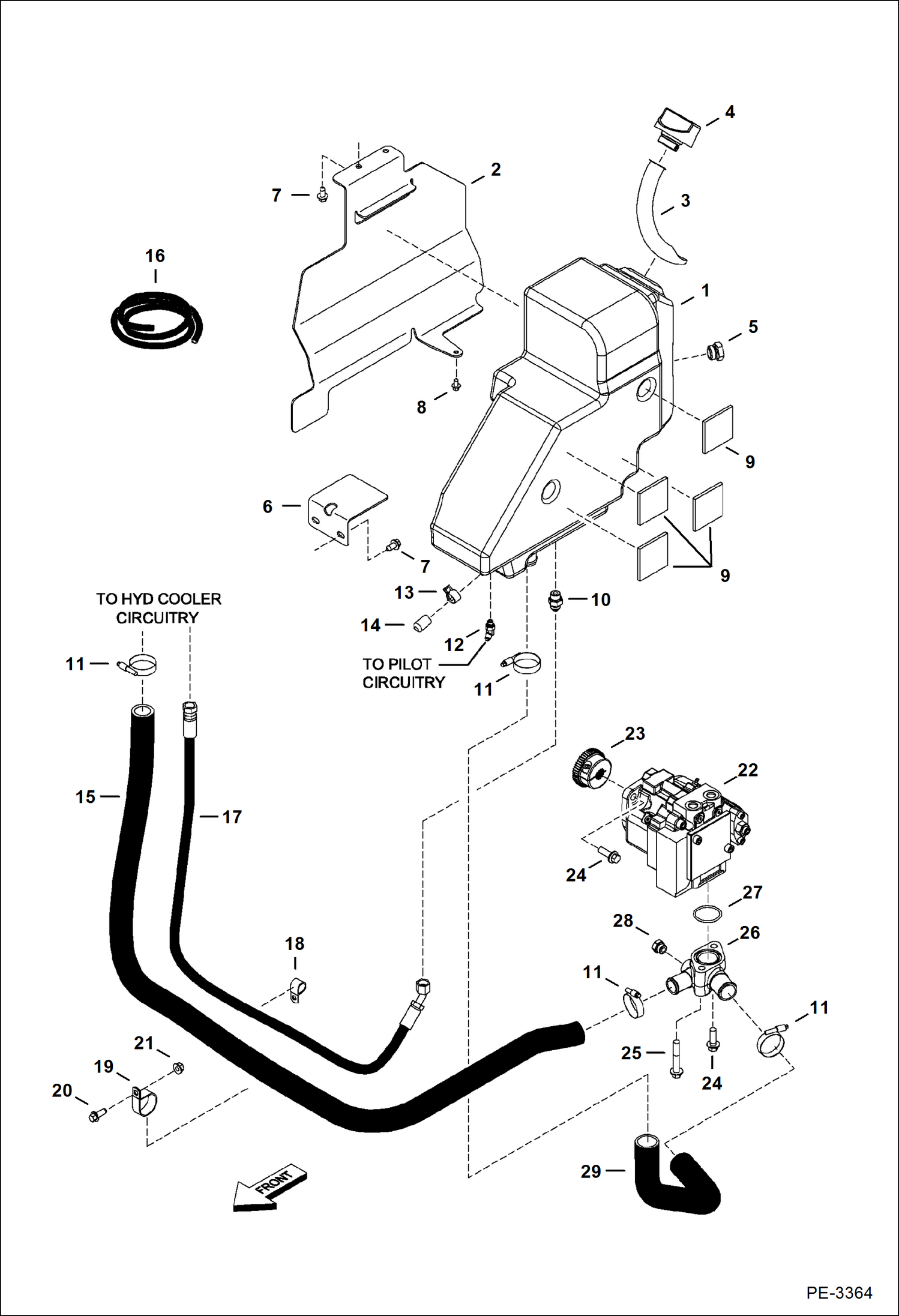

Схема запчастей Bobcat 331 - HYDRAULIC CIRCUITRY (Tank & Pump) (331) 234316877 & Above, (331E) 234413319 & Above, (334) 234515533 & Above HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7125940

TANK Was 7109840

2

7125941

BRACKET

3

7134222

SCREEN

4

6692836

CAP, HYDRAULIC TANK filler W/ 79K20 O-ring - Was 6674690 - B,D

5

6665915

GAUGE

6

7101356

MOUNT

7

26GM10020

BOLT

8

26GM8016

SCREW

9

6578278

PAD

10

15KB0808

FITTING, HYD CONNECTOR

10

79K8

O RING 10

11

42HC200

CLAMP

12

18KB0404

FTG HYD ELBOW 45

12

79K4

O RING 10

13

30H65

CLIP

14

6680398

CAP

15

HOSE Order 6673825 bulk 70''

16

6673825

HOSE

17

7125142

HOSE Was 6809950 - A

18

5HM20

CLAMP

19

30H85

CLAMP

20

26GM10030

BOLT

21

43DM10

NUT

22

6686525

PUMP, HYD See Illustration HYDRAULIC PISTON PUMP/ MS2048

23

6676535

COUPLER

24

29CM1235

BOLT

25

29CM1270

BOLT

26

7125950

MANIFOLD

27

58K225

O RING 10

28

24K6

FITTING

28

79K8

O RING 10

29

6808526

HOSE

Выбрано товаров: 32
