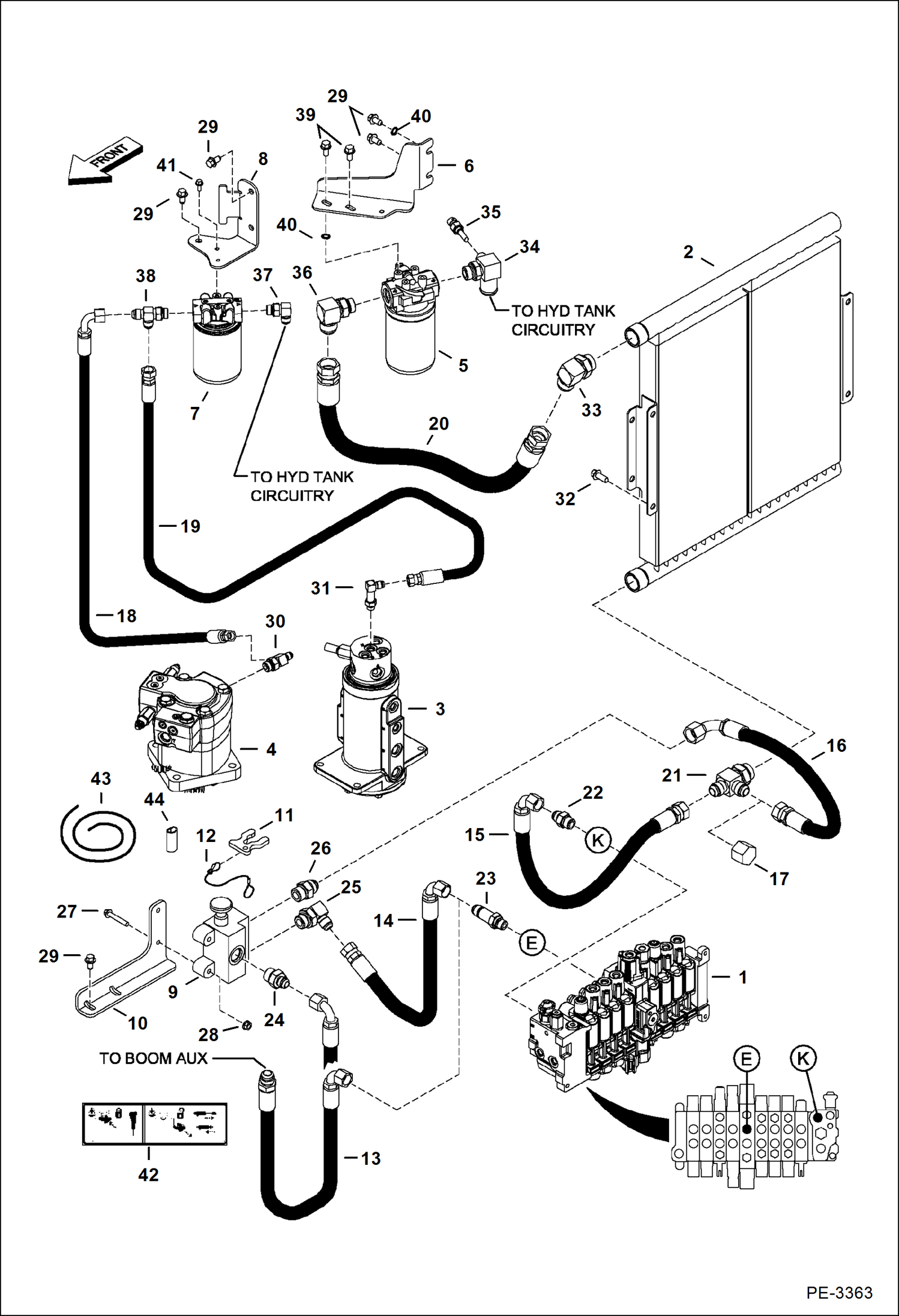

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Cooler/Filter & Direct to Tank) (S/N) (331) 234316877 & Above, (331E) 234413319 & Above, (334) 234515533 & Above HYDRAULIC SYSTEM

1

VALVE ASSY See Illustration CONTROL VALVE/ MS1430

2

6684366

EXCHANGER

3

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

4

7001955

MOTOR, DRIVE HYD SLEW See Illustration SWING MOTOR/ MS1847 - Was 6687117 - A

5

6661247

FILTER

5

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

5

6660260

SWITCH hydraulic pressure

6

6814482

MOUNT

7

6686217

FILTER ASSY

7

6516722

FILTER

8

7104428

BRACKET filter

9

6660267

VALVE See Illustration SELECTOR VALVE ASSY/ TS1353 - selector

10

6809087

BRACKET filter

11

6808717

CLIP

12

WIRE ROPE NLA - 14'' (355 mm) long - Order 2' of Ref. 43 & Qty 2 of Ref. 44

13

6808699

HOSE

14

6809990

HOSE

15

7107836

HOSE

16

6813873

HOSE

17

36K8

CAP

18

6817821

HOSE

19

6809946

HOSE

20

6813919

HOSE

21

21KB1216

FITTING, HYD TEE

21

79K16

O RING 10

22

15KB1010

FITTING, HYD CONNECTOR

22

79K10

O RING 10

23

16KB1010

FITTING, HYD ELBOW

23

79K10

O RING 10

24

15KB1012

FITTING, HYD CONNECTOR

24

79K12

O RING 10

25

17KB1012

FITTING, HYD ELBOW

25

79K12

O RING 10

26

15KB1212

FITTING, HYD CONNECTOR

26

79K12

O RING 10

27

29CM850

SCREW

28

43DM8

NUT

29

26GM10020

BOLT

30

21KB0608

FTG Hyd Straight Tee

30

79K8

O RING 10

31

6812815

FITTING

31

79K6

O RING 10

32

29CM1025

BOLT

33

17KB1616

FITTING, HYD ELBOW

33

79K16

O RING 10

34

6809666

ELBOW

34

79K12

O RING 10

35

6718417

SENDER hyd temp

36

17KB1612

FITTING, HYD ELBOW

36

79K12

O RING 10

37

17KB0808

FITTING, HYD ELBOW

37

79K8

O RING 10

38

21KB0808

FTG HYD STRAIGHT TEE

38

79K8

O RING 10

39

35C612

BOLT

40

6E6

WASHER

41

35C410

BOLT 5

42

6808879

DECAL

43

6558309

WIRE ROPE bulk - sold per foot

44

6558310

SLEEVE
