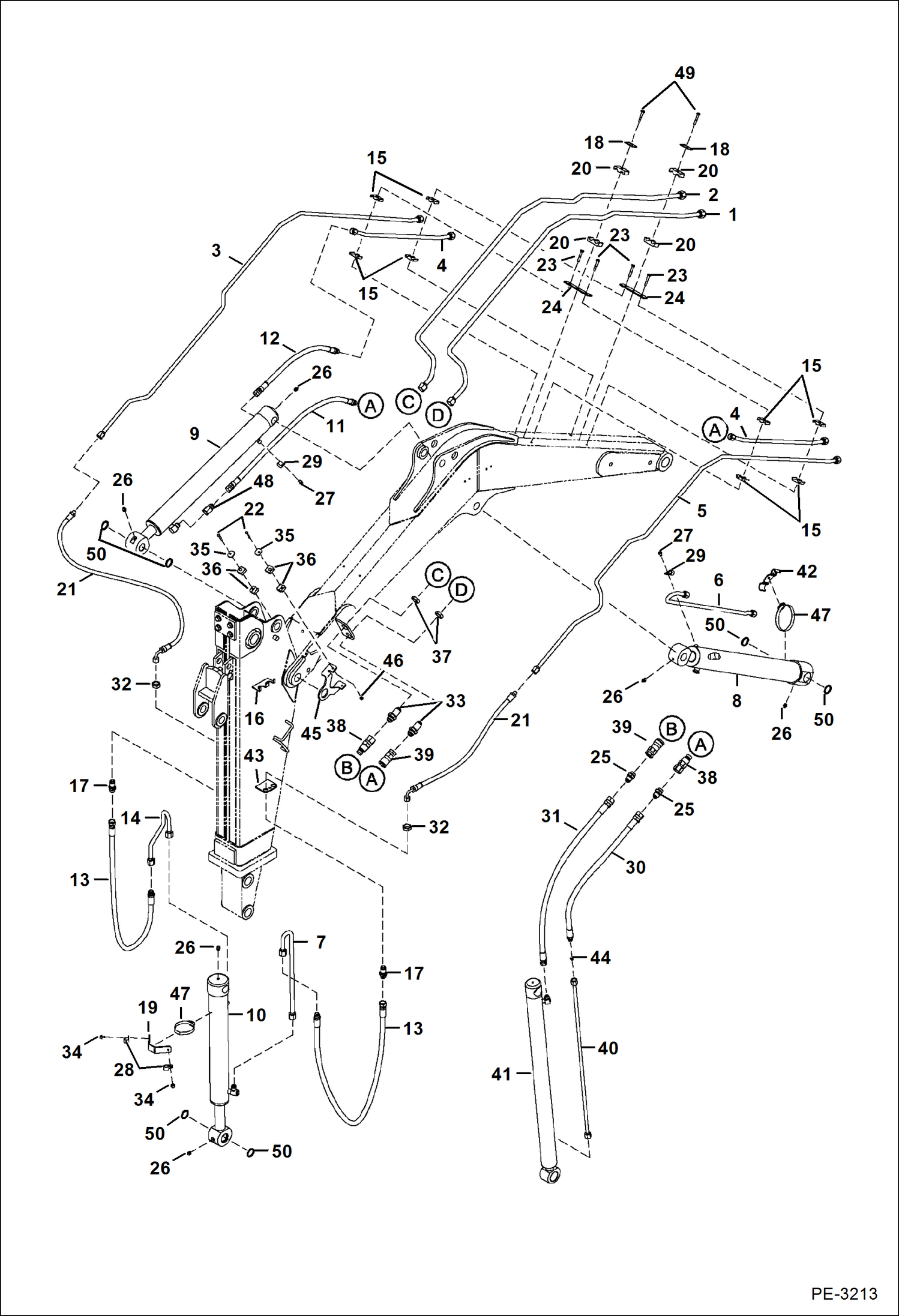

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Work Tubelines & Cylinders W/Extendable Arm) HYDRAULIC SYSTEM

1

6812100

TUBELINE Use W/aux bracket 6628560 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

1

7116211

TUBELINE Use W/aux bracket 6628560 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

1

7139956

TUBELINE Use W/aux bracket 6597688 3.86'' (98 mm) x 4.95'' (125.8 mm)

2

6812099

TUBELINE Use W/aux bracket 6628560 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

2

7116210

TUBELINE Use W/aux bracket 6628560 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

2

7139955

TUBELINE Use W/aux bracket 6597688 3.86'' (98 mm) x 4.95'' (125.8 mm)

3

6596041

TUBELINE

4

6596042

TUBELINE

5

6814435

TUBELINE

6

6596855

TUBELINE

7

7110565

TUBELINE

8

CYLINDER, BOOM See Illustration BOOM CYLINDER/ PE3115

9

CYLINDER, ARM See Illustration ARM CYLINDER/ B25168

10

CYLINDER See Illustration BUCKET CYLINDER/ PE1979A bucket

11

7105235

HOSE Was 6802968 - A

12

6810465

HOSE

13

6805912

HOSE

13

6805912

HOSE

14

7110436

TUBELINE

15

6577697

CLAMP

16

6805848

BRACKET

17

45K7

CONNECTR

18

6652521

PLATE

19

7110774

CLAMP

20

6592506

CLAMP

21

6805177

HOSE

22

1CM650

SCREW

23

1CM840

BOLT

24

6596116

PLATE

25

15KB1012

FITTING, HYD CONNECTOR

26

10H25

FITTING, GREASE 5

27

29CM812

BOLT

28

30H37

CLAMP

29

30H50

CLIP

30

6805914

HOSE

31

6805913

HOSE

32

86F7

LOCK NUT

33

6812823

ADAPTER

34

26GM8013

BOLT

35

6665102

COVER

36

6666920

CLAMP, HALF

37

86F6

NUT

38

6674688

COUPLER, FF MALE straight - Was 6667808 - A

39

6672960

COUPLER, FF FEMALE straight

40

6806056

TUBELINE

41

6810433

CYLINDER See Illustration EXTENDABLE ARM CYLINDER/ NA2431

42

6806461

CLAMP

43

6803509

PLATE

44

6592824

ORIFICE

45

7126461

BRACKET

46

53DM6

NUT

47

42H56

CLAMP

48

6672503

VALVE

49

1CM860

BOLT

50

6652915

SEAL, OIL
