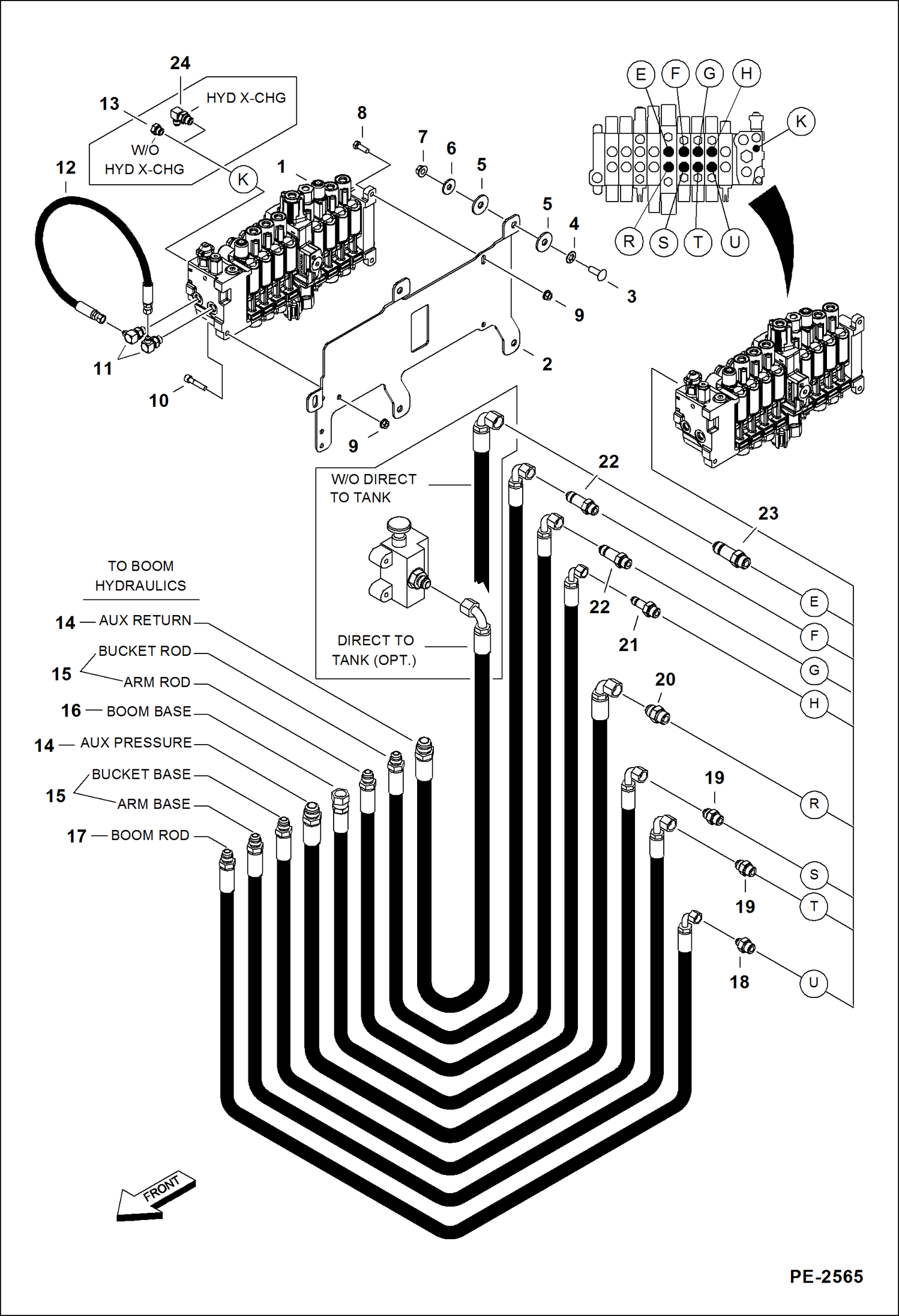

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Work Hoses & Control Valve) (S/N) (331) 234316877 & Above, (331E) 234413319 & Above, (334) 234515533 & Above HYDRAULIC SYSTEM

1

VALVE CONTROL See Illustration CONTROL VALVE/ MS1430

2

7114057

MOUNT

3

28CM1030

BOLT

4

6674264

RETAINER NUT

5

6806720

INSULATOR

6

17EM100

WASHER

7

51DM10

NUT

8

1CM825

BOLT

9

43DM8

NUT

10

3GM840

SCREW

11

7124150

ELBOW 90 degree

11

79K6

O RING 10

12

7102958

HOSE

13

24K5

PLUG

13

79K6

O RING 10

14

6808699

HOSE

15

6809773

HOSE

16

7121057

HOSE W/ .5625''-18 thread elbow

17

7121056

HOSE W/ .5625''-18 thread elbow

18

15KB0608

FITTING, HYD CONNECTOR

18

79K8

O RING 10

19

15KB0808

FITTING, HYD CONNECTOR

19

79K8

O RING 10

20

15KB1010

FITTING, HYD CONNECTOR

20

79K10

O RING 10

21

16KB0608

FITTING, HYD CONNECTOR

21

79K8

O RING 10

22

16KB0808

FITTING, HYD CONNECTOR

22

79K8

O RING 10

23

16KB1010

FITTING, HYD ELBOW

23

79K10

O RING 10

24

7124150

ELBOW See Illustration X-CHANGE/ PE3236

24

79K6

O RING 10
