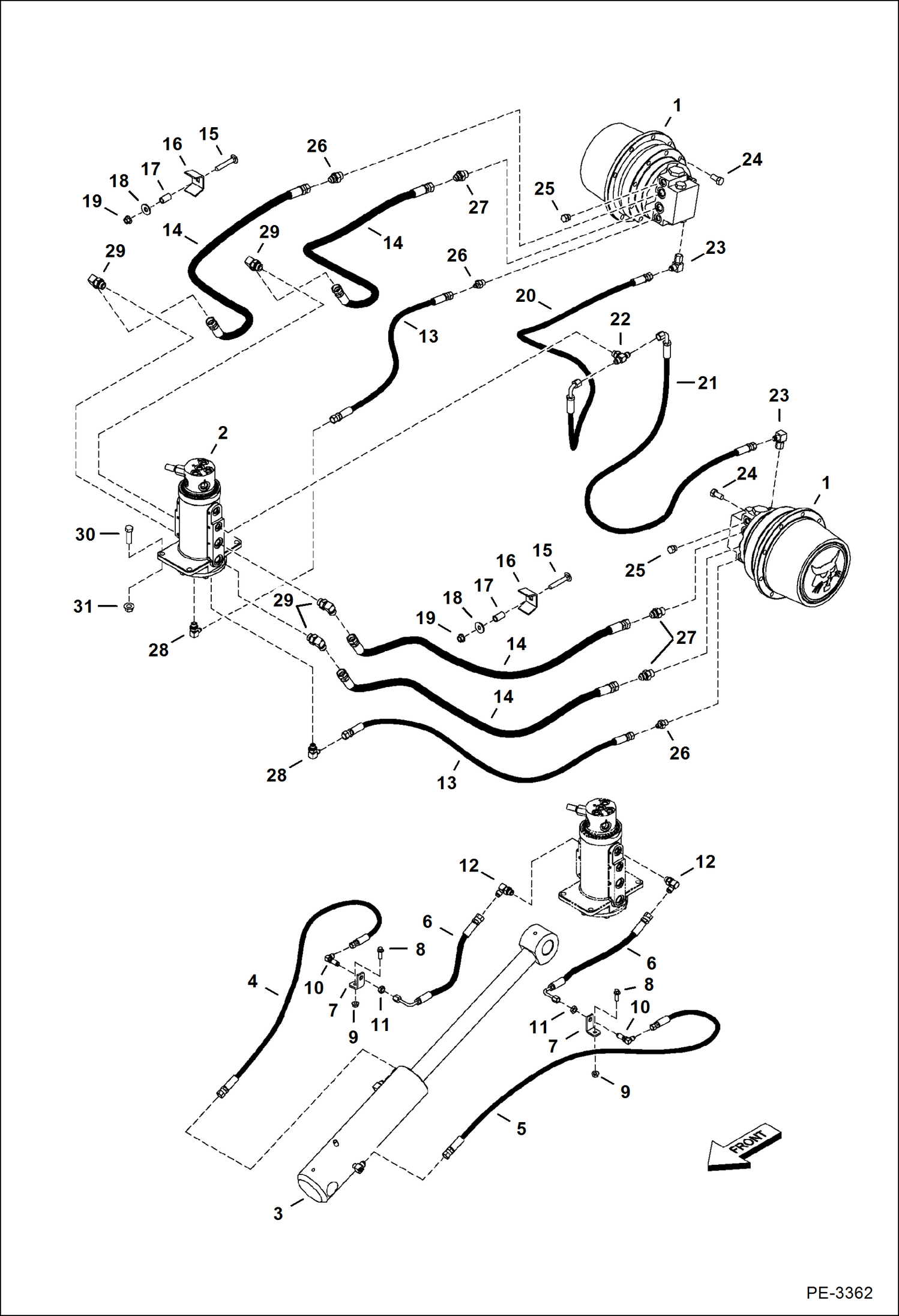

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Lower) HYDRAULIC SYSTEM

1

6677666

MOTOR, DRIVE HYD See Illustration TRAVEL MOTORS/ D2373 - travel

2

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

3

6597350

CYLINDER See Illustration BLADE CYLINDER/ PE3654 - blade

4

6810184

HOSE

5

6810194

HOSE

6

6810182

HOSE

7

6810169

BRACKET hose

8

29CM825

BOLT

9

43DM8

NUT

10

88F3

ELBOW 5

11

86F3

LOCKNUT

12

17KB0606

FITTING

12

79K6

O RING 10

13

7106590

HOSE

14

6800815

HOSE

15

21CM1065

BOLT

16

6597380

CLAMP

17

6805602

SPACER bushing

18

17EM100

WASHER

19

43DM10

NUT

20

6587294

HOSE (1) straight fitting & (1) 90 degree fitting

20

7139244

HOSE, HYD ASSY (2) 90 degree fittings

21

6618198

HOSE (1) straight fitting & (1) 90 degree fitting

21

7139243

HOSE, HYD ASSY (2) 90 degree fittings

22

19KB0606

TEE branch

22

79K6

O RING 10

23

11K5

FITTING

24

55CM1225

BOLT

25

24K5

PLUG

25

79K6

O RING 10

26

15KB0406

FTG HYD S CONNECTOR

26

79K6

O RING 10

27

15KB0808

FITTING, HYD CONNECTOR

27

79K8

O RING 10

28

17KB0406

FITTING, HYD ELBOW

28

79K6

O RING 10

29

17KB0808

FITTING, HYD ELBOW

29

79K8

O RING 10

30

1CM1240

BOLT

31

51DM12

NUT
