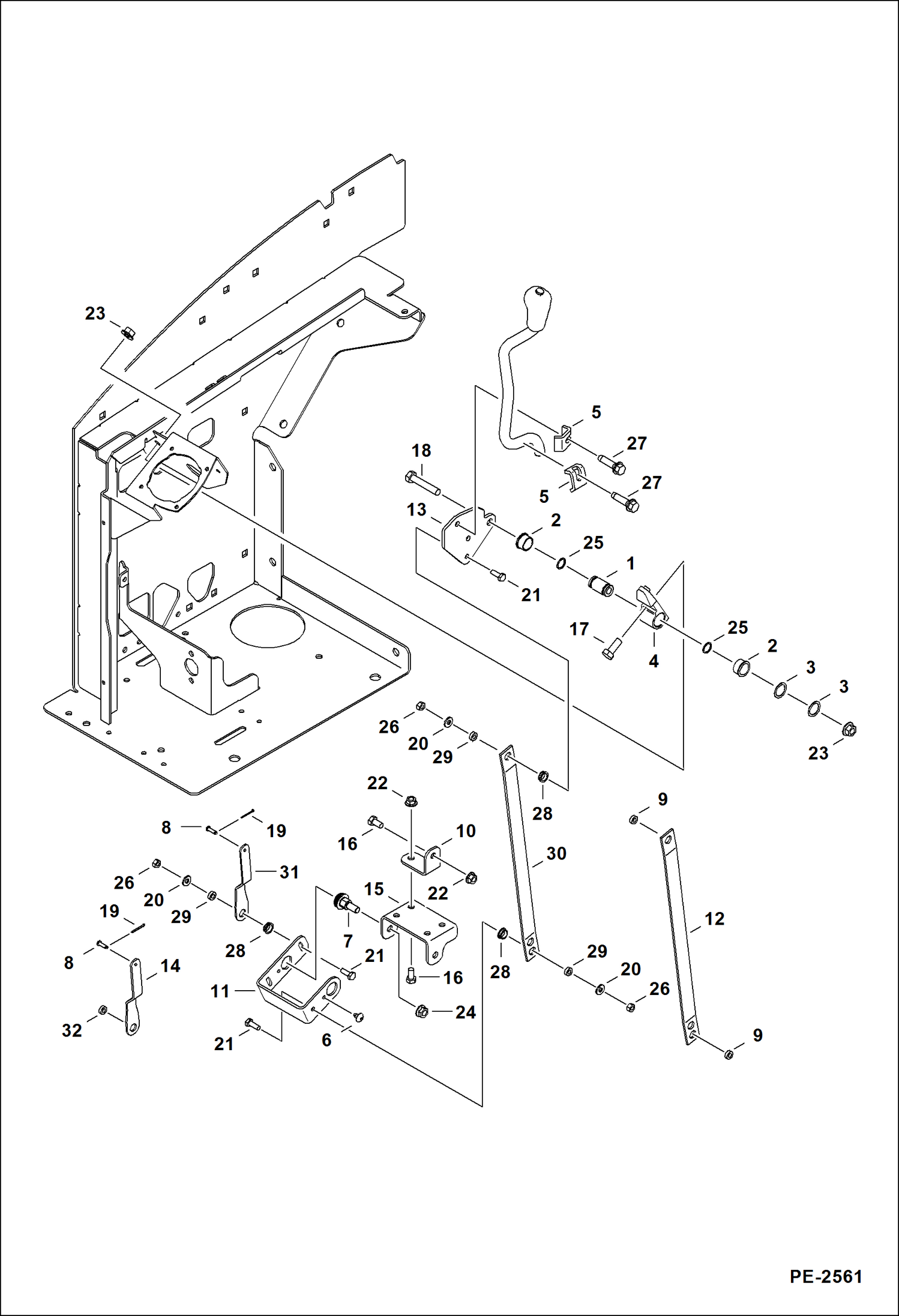

Запчасти Bobcat 331 CONTROLS (Blade) CONTROLS

1

6536545

SLEEVE

2

6536801

BUSHING

3

6536802

WASHER

4

6537481

MOUNT

5

6562266

CLAMP

6

6589675

SCREW

7

6675992

BEARING

8

6801068

PIN

9

SPACER NLA - original design Use W/O Ref. 28 - Order (2) of Ref. 28 & 29, and (1) of Ref. 30 - Was 6808003 - A

10

6809121

ANGLE

11

7130455

CHANNEL

12

LINK NLA - original design Use W/O Ref. 28 - Order (2) of Ref. 28 & 29, and (1) of Ref. 30 - Was 6813003 - A

13

7137687

PLATE Was 7100534 - A

14

LINK NLA - original design Use W/O Ref. 28 - Order Ref. 28, 29, & 31 - Was 7106791 - A

15

7108410

SUPPORT

16

1CM816

BOLT

17

1CM1025

BOLT

18

1CM1055

BOLT

19

1F212

PIN

20

25E13

WASHER 5

21

18C412

BOLT Was 2C412 - A

22

51DM8

NUT Was 43DM8 - A

23

51DM10

NUT Was 43DM10 - A

24

83D6

NUT 5 Was 57D6 - A

25

58K015

O-RING 10

26

98D4

NUT Was 62D4 - A

27

84G3720

BOLT

28

6698186

BEARING, CLIP modified design - Use W/Ref. 29-31

29

7155449

SPACER modified design - Use W/Ref. 28, 30, & 31

30

7157675

LINK, FORMED modified design - Use W/Ref. 28 & 29

31

7157676

LINK, SPOOL modified design - Use W/Ref. 28 & 29

32

SPACER NLA - original design Use W/O Ref. 28 - Order Ref. 28, 29, & 31 - Was 6808003 - A
