Запчасти Bobcat 329 BUCKET CYLINDER HYDRAULIC SYSTEM

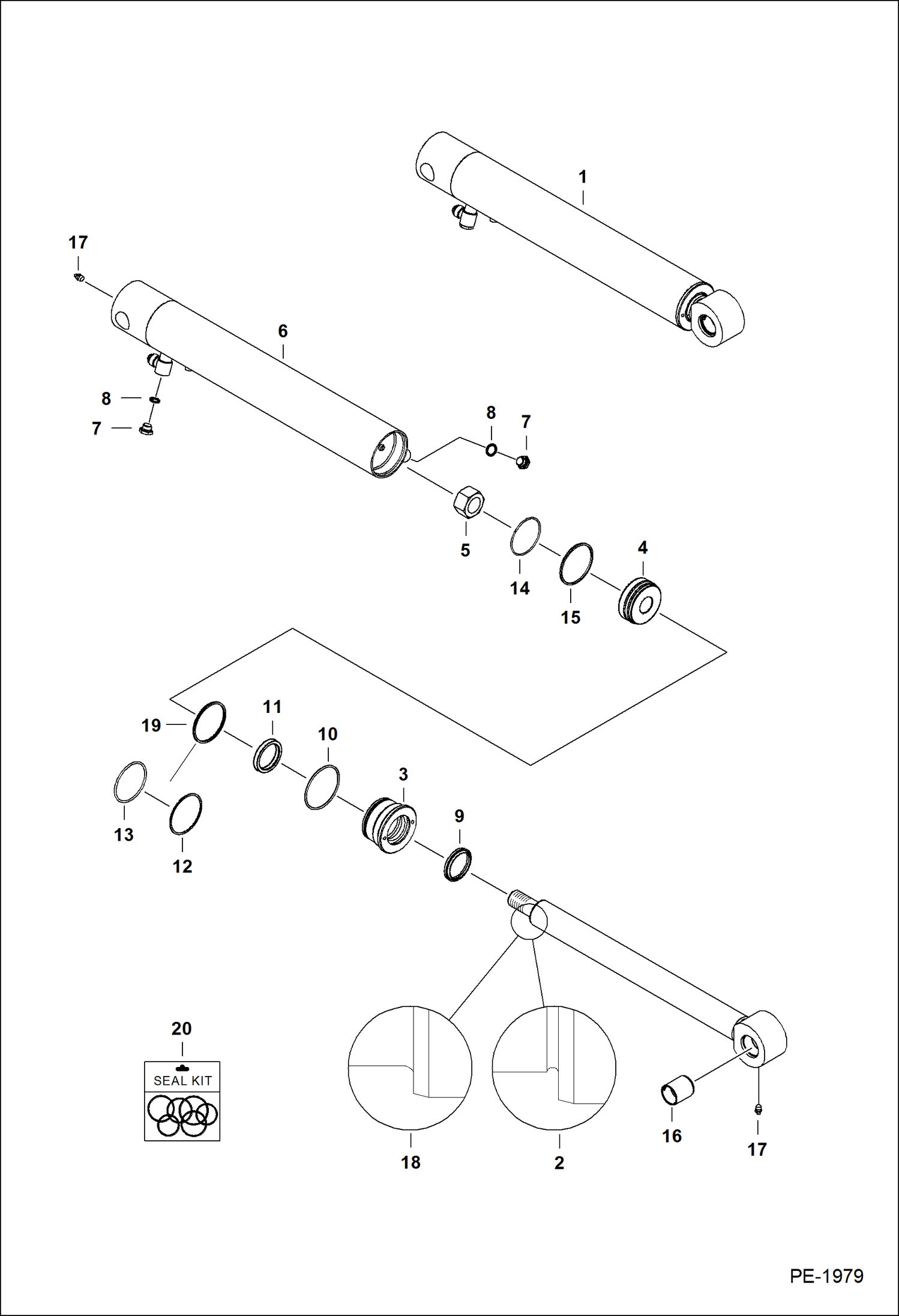

Схема запчастей Bobcat 329 - BUCKET CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER NLA - W/Ref. 2-15, & 17 - Order 7147447 - Also Order Ref. 16 & (2) of 6652915 dust seal - Was 6812165 - A

1

7147447

CYLINDER W/Ref. 3-15, 17, & 18 - Also Order Ref. 16 & (2) of 6652915 dust seal

2

ROD NLA - Order 7147445 rod & 7147314 piston - Also Order Ref. 16, 17, & (2) of 6652915 dust seal - Was 6803810 - A

3

6537294

HEAD

4

7147314

PISTON Was 6809560 - A

5

6810540

NUT

6

6812166

HOUSING W/Ref. 7 & 8

7

6812171

PLUG W/Ref. 8

8

79K7

O RING 10

9

6686998

WIPER, ROD CYL

10

6667328

SEAL

11

82K236

O-RING

12

73K234

BACK-UP RING back-up - Was 80K234 - A

13

58K234

O RING 10 Was 54K40300 - B

14

25K30226

O RING 10 Was 54K30226 - B

15

6513466

PISTON RG Sealing

16

6804139

BUSHING

17

10H25

FITTING, GREASE 5 grease

18

7147445

ROD Also Order Ref. 16, 17, & (2) of 6652915 dust seal

19

7008354

SEAL, QUAD

20

7137966

SEAL KIT Ref. 5, 9-11, 14, 15, & 19 - Was 6810470 - A

Выбрано товаров: 21
