Запчасти Bobcat 329 BLADE CYLINDER HYDRAULIC SYSTEM

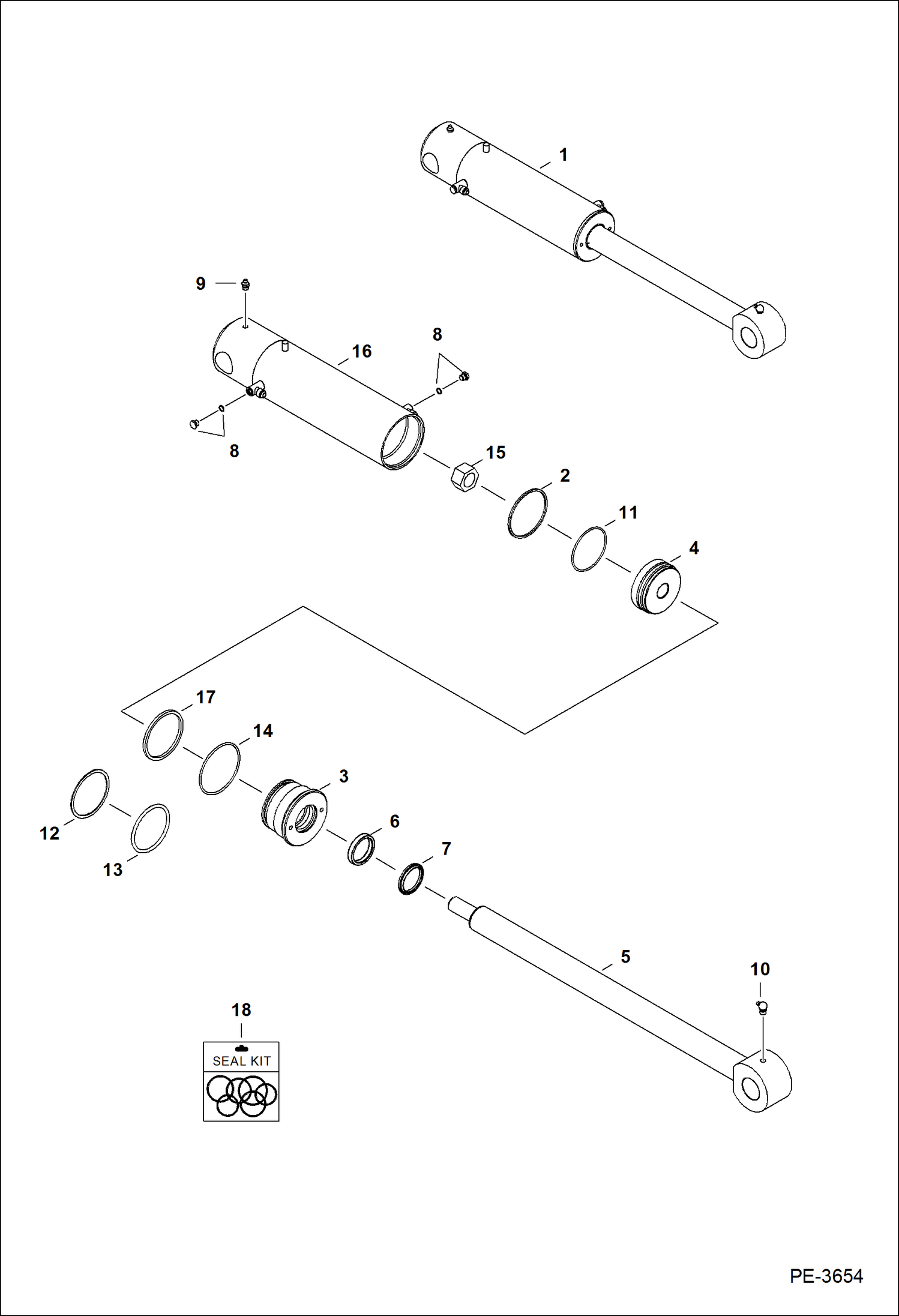

Схема запчастей Bobcat 329 - BLADE CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6597350

CYLINDER blade

2

1530265

PISTON SEAL

3

6534985

HEAD

4

6537179

PISTON

5

6537568

ROD

6

6667327

SEAL

7

6686999

WIPER, ROD CYL

8

6812170

PLUG

8

75K3

O-RING

9

10H25

FITTING, GREASE 5

10

12H15

FITTING, GREASE 5

11

25K30300

O RING 10 Was 54K30300 - A

12

O RING 10 NLA - Order Ref. 17 - Was 58K338 - B

13

RING NLA - back-up - Order Ref. 17 - Was 73K338 - B

14

82K238

O-RING

15

92D16

NUT

16

6597381

TUBE, CYL BLADE

17

7008353

SEAL, QUAD

18

7196896

KIT, SEAL Ref. 2, 6, 7, 11, 14, 15 & 17 - Was 7138009 - A

Выбрано товаров: 19
