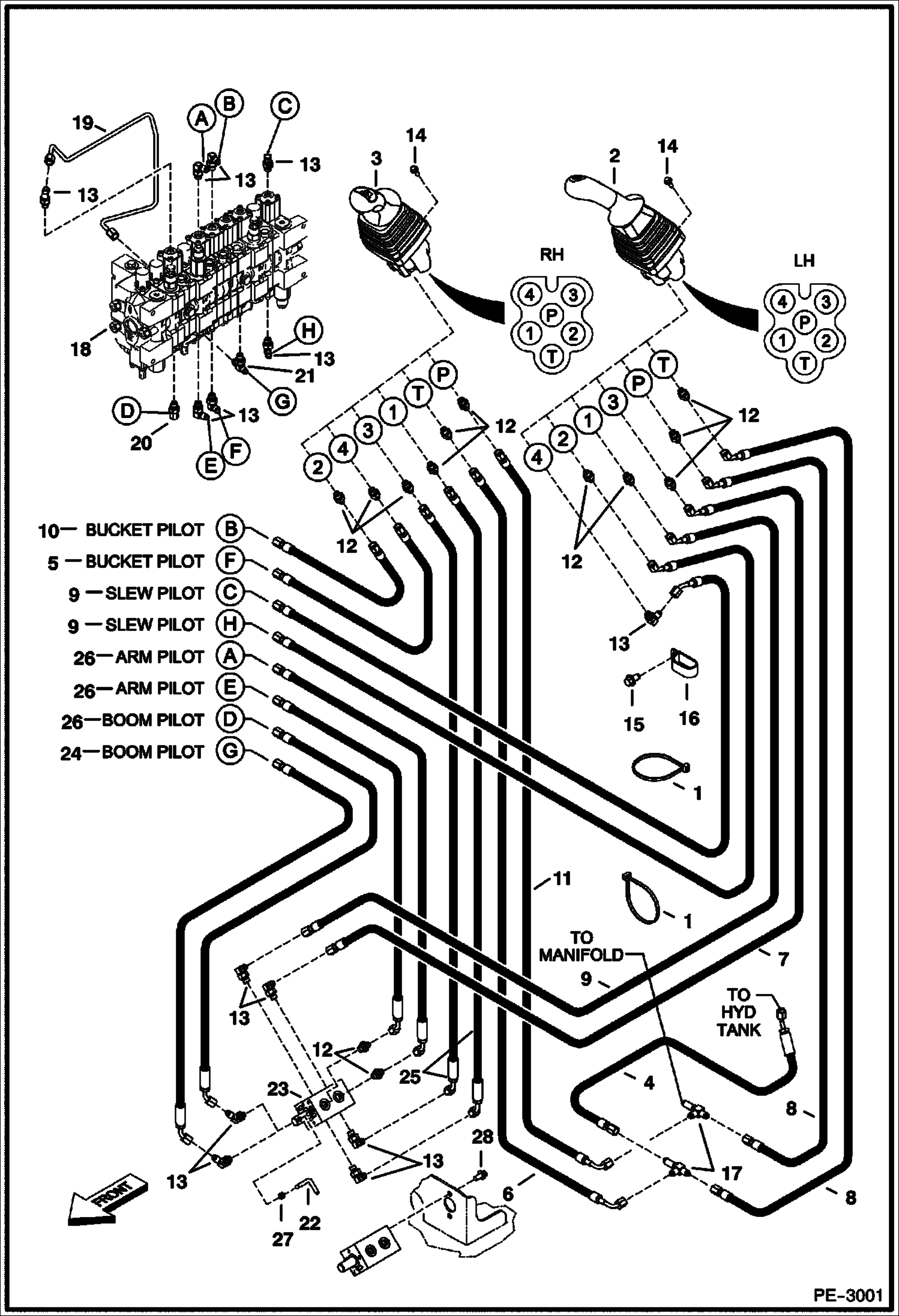

Запчасти Bobcat 329 HYDRAULIC CIRCUITRY (Pilot ISO/STD) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

3

6677895

JOYSTICK See Illustration R.H. JOYSTICK/ MS1352

4

7106592

HOSE

5

7106604

HOSE

6

7106608

HOSE

7

7106612

HOSE

8

7106613

HOSE

9

7106614

HOSE

10

7106615

HOSE

11

7107661

HOSE

12

15KB0404

FTG HYD S Connector

12

79K4

O RING 10

13

17KB0404

FTG HYD ELBOW 90

13

79K4

O RING 10

14

26GM6020

SCREW

15

26GM10020

BOLT

15

26GM10016

SCREW

15

26GM8013

BOLT

16

31H46

CLAMP

16

30H85

CLAMP

17

91K3

TEE

18

6690144

VALVE CONTROL See Illustration CONTROL VALVE/ MS2256

19

6812960

TUBELINE

20

18KB0404

FTG HYD ELBOW 45

20

79K4

O RING 10

21

19KB0404

FITTING, HYD TEE

21

79K4

O RING 10

22

6804251

HANDLE

23

6805768

VALVE See Illustration SELECTOR VALVE ASSY/ TS1353

24

7106619

HOSE

25

7106620

HOSE

26

7106621

HOSE

27

53DM6

NUT Was 1DM6 - A

28

29CM816

SCREW
