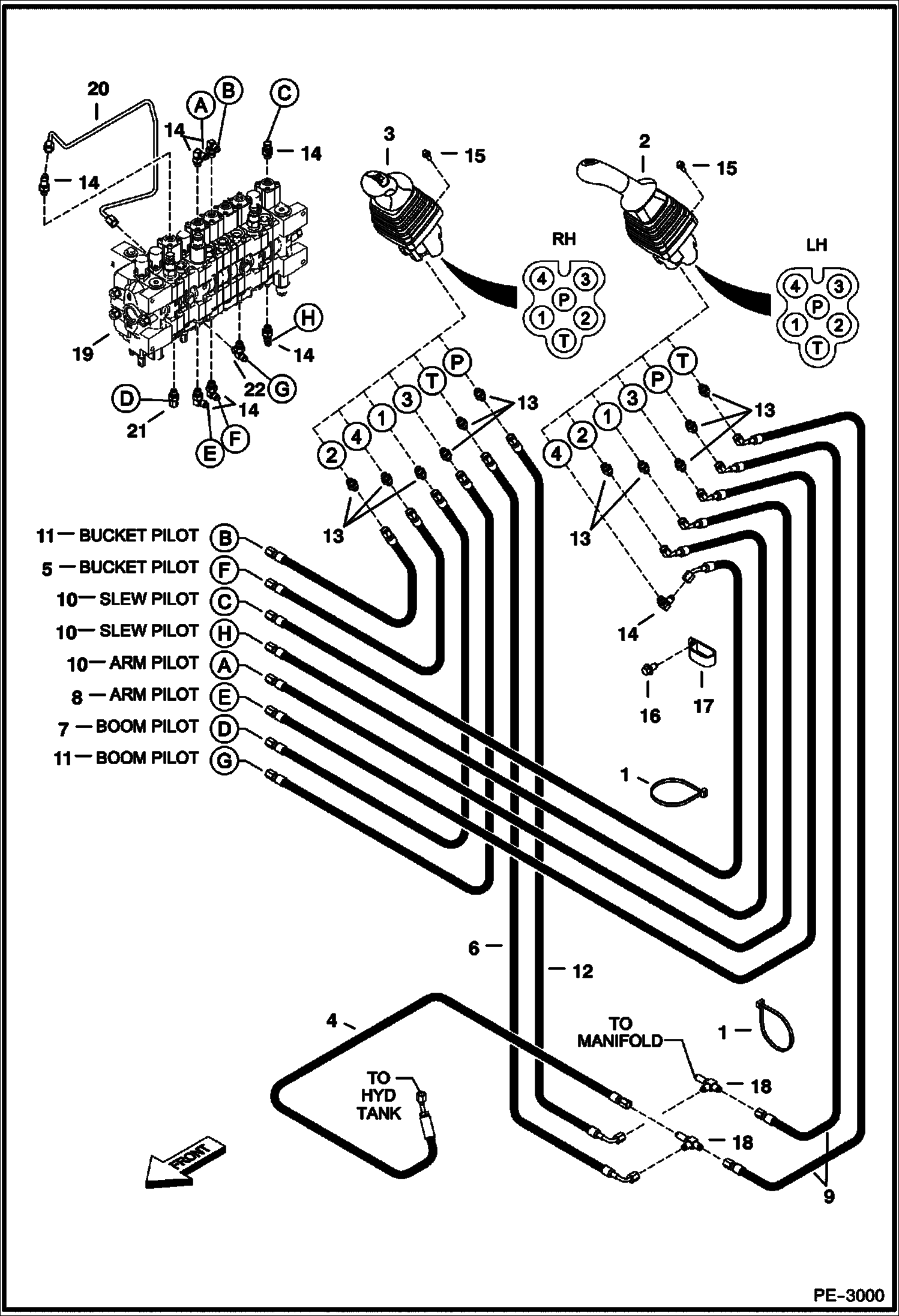

Запчасти Bobcat 329 HYDRAULIC CIRCUITRY (Pilot) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

3

6677895

JOYSTICK See Illustration R.H. JOYSTICK/ MS1352

4

7106592

HOSE

5

7106604

HOSE

6

7106608

HOSE

7

7106611

HOSE

8

7106612

HOSE

9

7106613

HOSE

10

7106614

HOSE

11

7106615

HOSE

12

7107661

HOSE

13

15KB0404

FTG HYD S Connector

13

79K4

O RING 10

14

17KB0404

FTG HYD ELBOW 90

14

79K4

O RING 10

15

26GM6020

SCREW

16

26GM10020

BOLT

16

26GM10016

SCREW

16

26GM8013

BOLT

17

31H46

CLAMP

17

30H85

CLAMP

18

91K3

TEE

19

6690144

VALVE CONTROL See Illustration CONTROL VALVE/ MS2256

20

6812960

TUBELINE

21

18KB0404

FTG HYD ELBOW 45

21

79K4

O RING 10

22

19KB0404

FITTING, HYD TEE

22

79K4

O RING 10
