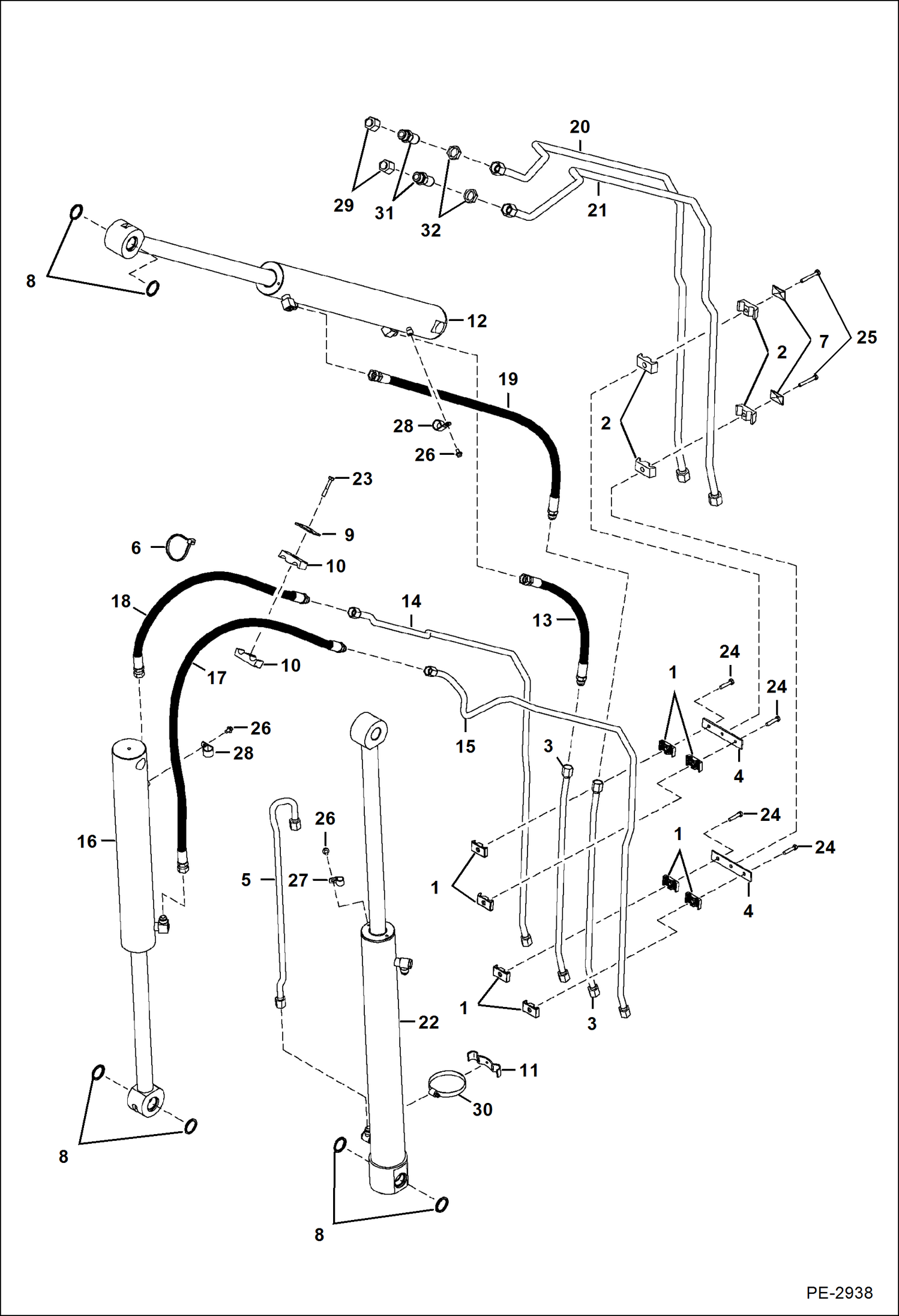

Запчасти Bobcat 329 HYDRAULIC CIRCUITRY (Work) HYDRAULIC SYSTEM

1

6577697

CLAMP

2

6592506

CLAMP

3

6596042

TUBELINE

4

6596116

PLATE

5

6596855

TUBELINE

6

6624289

STRAP, TIE

7

6652521

PLATE

8

6652915

SEAL, OIL

9

6653493

COVER

10

6683610

CLAMP

11

6806461

CLAMP

12

7148322

CYLINDER See Illustration ARM CYLINDER/ PE1976 arm - Was 6817188 - A

13

6810465

HOSE

14

6812063

TUBELINE

15

6812064

TUBELINE

16

7147447

CYLINDER See Illustration BUCKET CYLINDER/ PE1979 bucket - Was 6812165 - A

17

6814781

HOSE

18

6814782

HOSE

19

7105235

HOSE

20

7116210

TUBELINE See Illustration BOOM/ PE3053 Use W/aux bracket 6628560 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

20

7139955

TUBELINE See Illustration BOOM/ PE3053 Use W/aux bracket 6597688 3.86'' (98 mm) x 4.95'' (125.8 mm)

21

7116211

TUBELINE See Illustration BOOM/ PE3053 Use W/aux bracket 6628560 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

21

7139956

TUBELINE See Illustration BOOM/ PE3053 Use W/aux bracket 6597688 3.86'' (98 mm) x 4.95'' (125.8 mm)

22

7148228

CYLINDER See Illustration BOOM CYLINDER/ PE1977 boom - Was 7126322 - A

23

17C532

BOLT 5

24

1CM840

BOLT

25

1CM860

BOLT

26

29CM812

BOLT

27

30H37

CLAMP

28

30H50

CLIP

29

36K8

CAP

30

42H56

CLAMP

31

45K8

ADAPTOR

32

86F8

NUT 5
