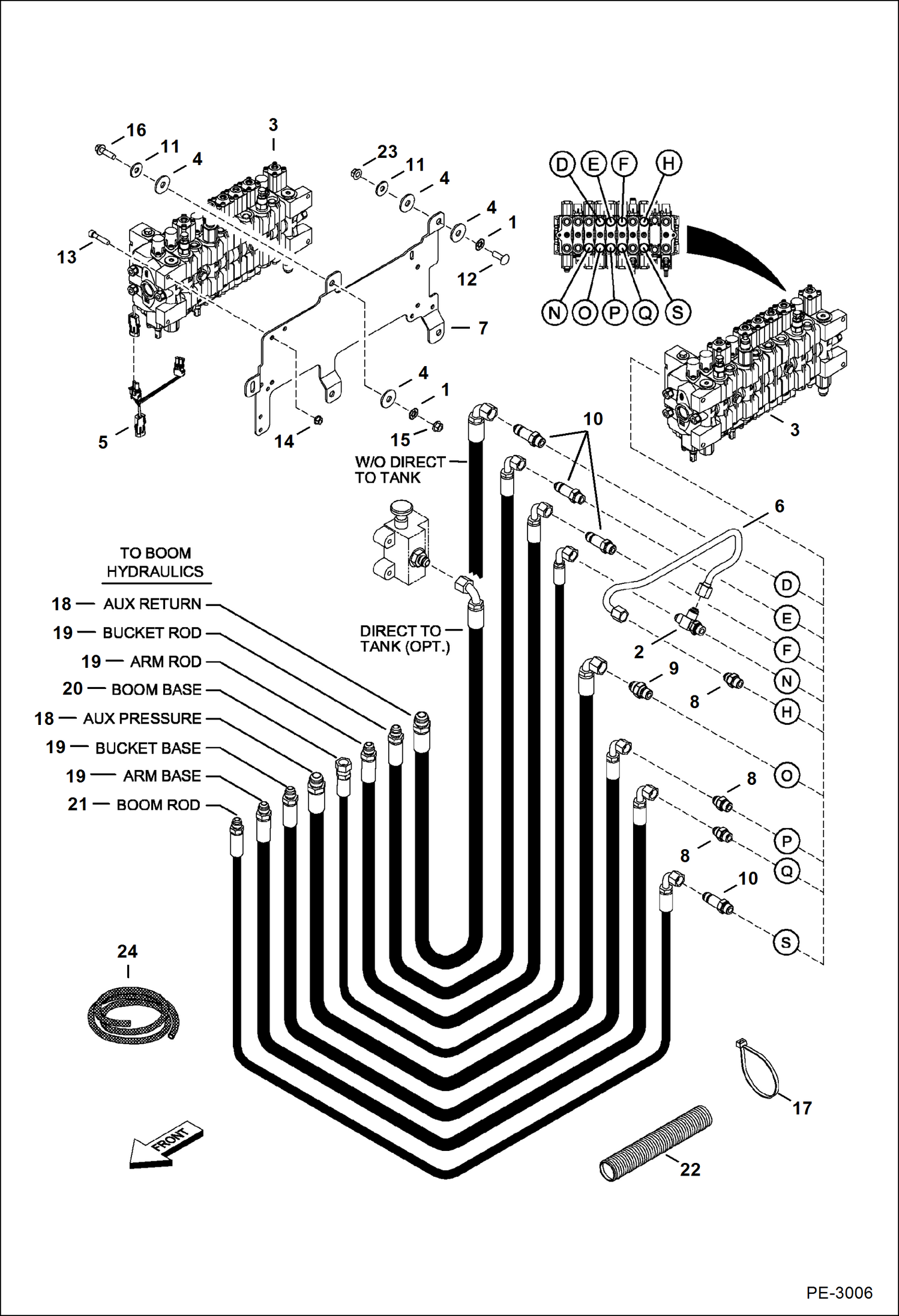

Запчасти Bobcat 329 HYDRAULIC CIRCUITRY (Work) HYDRAULIC SYSTEM

1

6674264

RETAINER NUT

2

6680968

TEE W/check

2

79K8

O RING 10

3

6690144

VALVE CONTROL See Illustration CONTROL VALVE/ MS2256

4

6806720

INSULATOR

5

6813156

HARNESS

6

6813653

TUBELINE

7

7123862

MOUNT

8

15KB0808

FITTING, HYD CONNECTOR

8

79K8

O RING 10

9

16KB1008

FITTING, HYD ELBOW

9

79K8

O RING 10

10

16KB0808

FITTING, HYD CONNECTOR

10

79K8

O RING 10

11

17EM100

WASHER

12

28CM1030

BOLT

13

3GM840

SCREW

14

43DM8

NUT

15

43DM10

NUT

16

59CM1035

BOLT

17

6624289

STRAP, TIE

18

6808699

HOSE

19

6809773

HOSE

20

6809774

HOSE

21

6809775

HOSE

22

CONDUIT NLA - 8''(203 mm) long - Order Ref 24

23

51DM10

NUT

24

6643249

CONDUIT bulk - sold per foot
