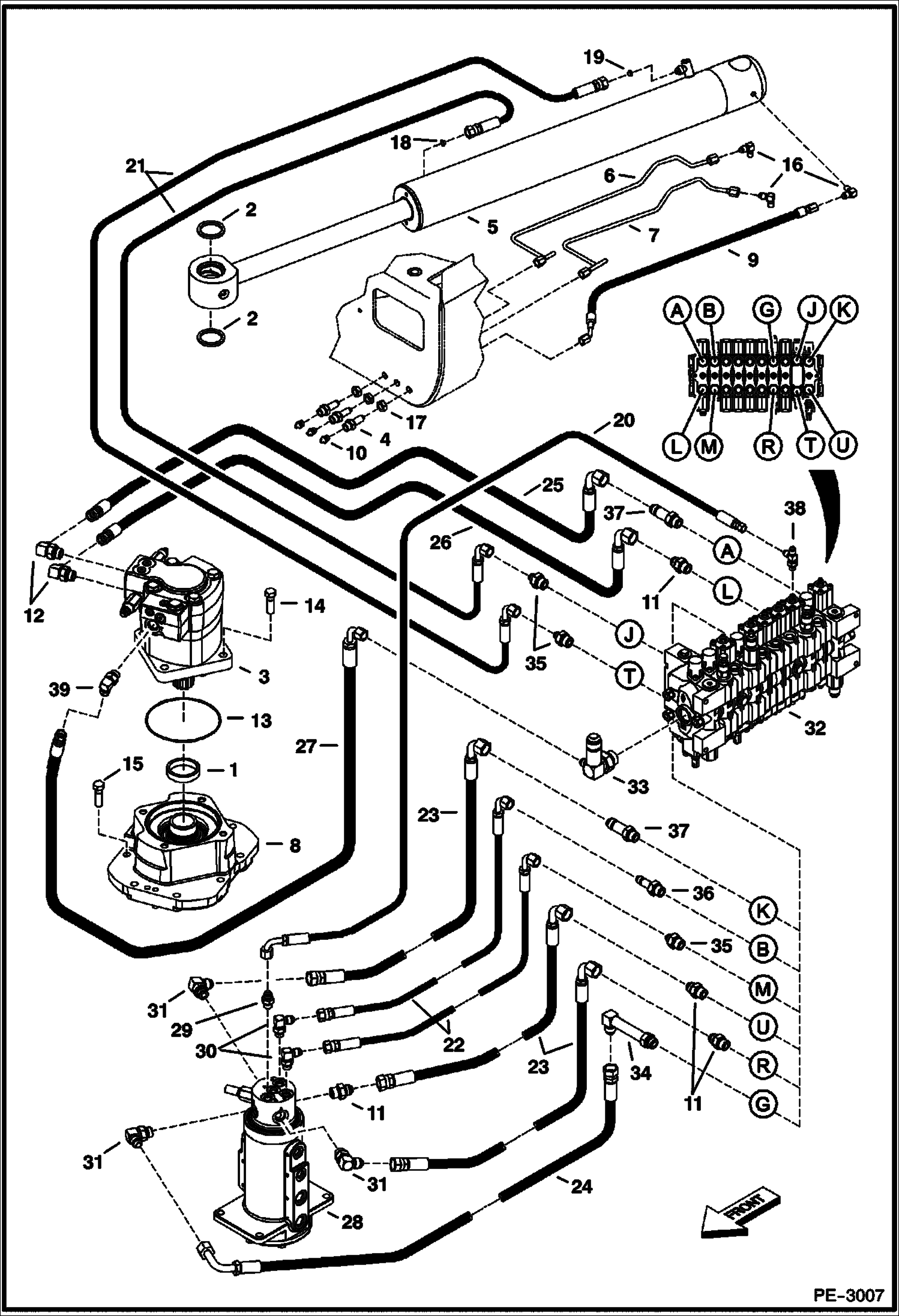

Запчасти Bobcat 329 HYDRAULIC CIRCUITRY (Upper/Swing) HYDRAULIC SYSTEM

1

6513681

BEARING

2

6660075

SEAL

3

7001954

MOTOR SLEW See Illustration SWING MOTOR/ MS1847 - Was 6689781 - A

4

6807184

FITTING

5

CYLINDER See Illustration SWING CYLINDER/ PE3653

6

7102801

TUBE

7

7102802

TUBE

8

7105323

CARRIER, MOTOR See Illustration MOTOR CARRIER/ PE2446

9

7106607

HOSE

10

10H25

FITTING, GREASE 5

11

15KB0808

FITTING, HYD CONNECTOR

11

79K8

O RING 10

12

17KB0608

FITTING, HYD ELBOW

12

79K8

O RING 10

13

25K30508

O-RING, 10

14

55CM1240

SCREW

15

55CM1250

SCREW

16

83F3

ELBOW 5

17

86F3

LOCKNUT

18

6532775

ORIFICE

18

6563587

BONNET

19

6569312

ORIFICE

19

6563587

BONNET

20

6702962

HOSE

21

6808695

HOSE

22

6808696

HOSE

23

6808697

HOSE

24

6808698

HOSE

25

6817819

HOSE

26

6817820

HOSE

27

7156571

HOSE, HYD ASSY Was 7107696 - A

28

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

29

15KB0606

FITTING, HYD CONNECTOR

29

79K6

O RING 10

30

17KB0606

FITTING

30

79K6

O RING 10

31

17KB0808

FITTING, HYD ELBOW

31

79K8

O RING 10

32

6690144

VALVE CONTROL See Illustration CONTROL VALVE/ MS2256

33

6811168

TEE

33

79K12

O RING 10

34

6812821

ELBOW

34

79K8

O RING 10

35

15KB0608

FITTING, HYD CONNECTOR

35

79K8

O RING 10

36

16KB0608

FITTING, HYD CONNECTOR

36

79K8

O RING 10

37

16KB0808

FITTING, HYD CONNECTOR

37

79K8

O RING 10

38

21KB0404

FITTING, HYD TEE

38

79K4

O RING 10

39

17KB0808

FITTING, HYD ELBOW Was 15KB808 straight adapter - B

39

79K8

O RING 10
