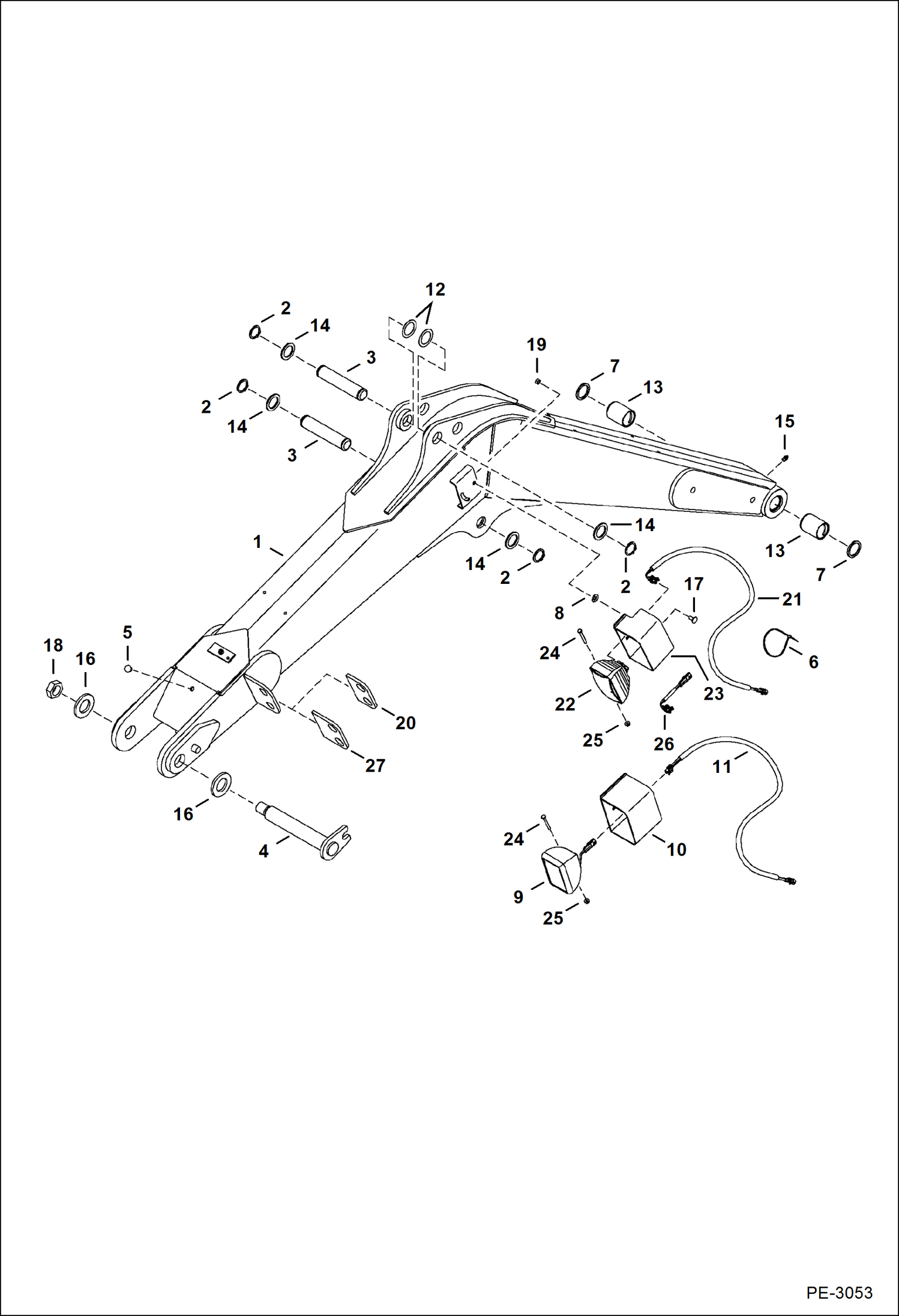

Запчасти Bobcat 329 BOOM WORK EQUIPMENT

1

BOOM See Illustration HYDRAULIC CIRCUITRY/ PE2938 NLA - W/Ref. 20 - Order 7139952 boom, 7139955 & 7139956 tubelines, Ref. 7 & 13 - Was 7126502 - A

1

7139952

BOOM, DIPPER ARM W/Ref. 27 - Also Order Ref. 7 & 13

2

6534154

RING

3

6596216

PIN

4

6596238

PIN, PIVOT

5

6597572

BUMPER

6

6610510

TIE

7

6660075

SEAL

8

6675859

RETAINER

9

6675938

LIGHT W/pigtail - Use W/Ref. 10

9

6667934

BULB

9

6676724

BEZEL Was 6676203 - A

9

6676204

NUT

10

HOUSING NLA - Order Ref. 23 - 26 - Was 6808258 - A

11

HARNESS NLA - work light - 153'' (3886mm) long - Order Ref. 21- Was 6808415 - A

12

6811636

SPACER

13

6815277

BUSHING

14

6534111

WASHER

15

10H25

FITTING, GREASE 5

16

1EM380

WASHER

17

28CM820

BOLT Was 21CM820 - B

18

39DM30

NUT

19

51DM8

NUT Was 4DM8 - B

20

6628560

PLATE welded onto boom - 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

21

7135895

HARNESS work light - 116'' (2946mm) long - Was 7135896 - A

22

6691410

LIGHT W/O pigtail - Use W/Ref. 23

22

6692400

BULB

23

7133077

HOUSING, W/A W/notch in side

24

17C532

BOLT 5 for light W/pigtail

24

1CM655

SCREW for light W/O pigtail

25

61D5

NUT for light W/pigtail

25

51DM6

NUT for light W/O pigtail

26

7135981

HARNESS extension - 6'' (152mm) long

27

6597688

PLATE welded onto boom - 3.86'' (98 mm) x 4.95'' (125.8 mm)
