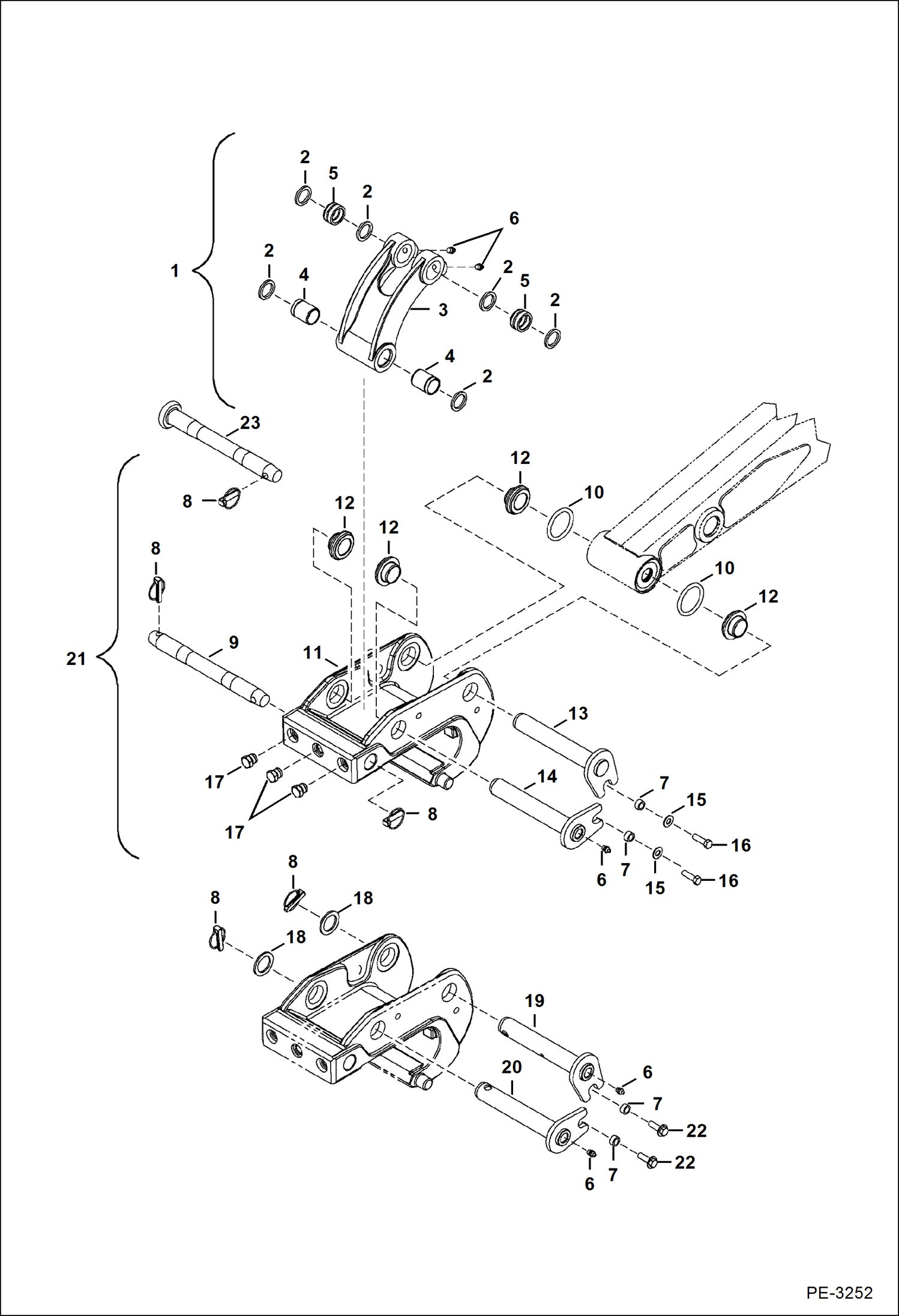

Запчасти Bobcat 329 BUCKET LINK & X-CHANGE WORK EQUIPMENT

1

6805374

LINK W/Ref. 2-6

2

6652915

SEAL, OIL

3

LINK NLA - Order Ref 1

4

6803213

BUSHING, PRESS FIT

5

6803309

BUSHING, PRESS FIT

6

10H25

FITTING, GREASE 5

7

6503451

SPACER

8

6560382

PIN, LOCK

9

7137214

PIN

10

6811260

O-RING

11

6815102

X-CHANGE

12

7102891

BUSHING

13

7130245

PIN

14

7130247

PIN

15

17EM120

WASHER

16

1CM1235

BOLT

17

24K6

FITTING

18

6534111

WASHER

19

PIN NLA - Order Ref 13, 15, & 16

20

PIN NLA - Order Ref 14, 15, & 16

21

KIT See Illustration X-CHANGE/ PE2409

22

29CM1225

BOLT

23

PIN NLA - Order 7137214 pin & (2) of 6560382 lock rings - Was 6734239 - A
