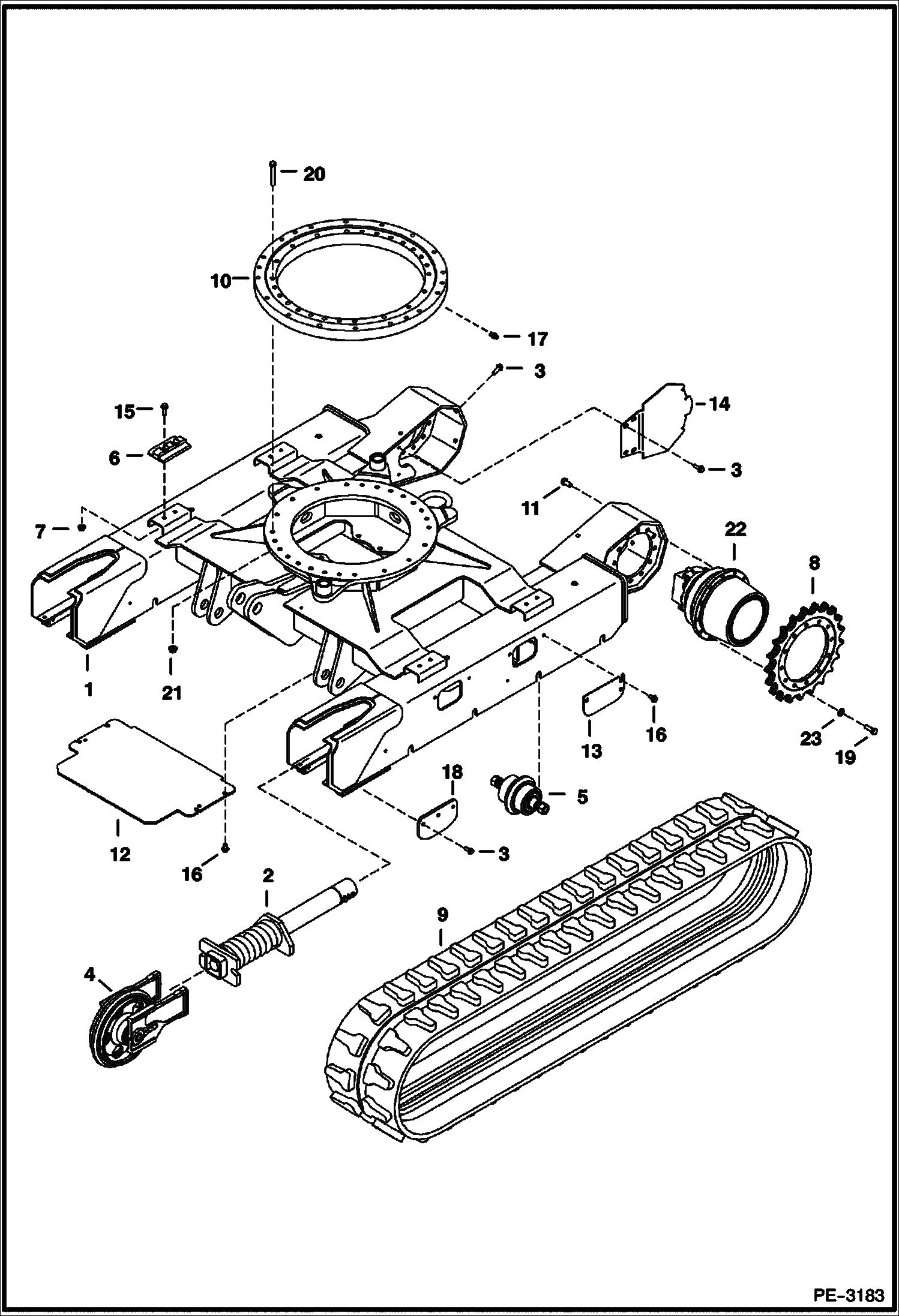

Запчасти Bobcat 329 UNDERCARRIAGE (S/N A2PG11093 & Below) UNDERCARRIAGE

1

UNDERCARRIAGE See BTIE-082 NLA - 12 hole - Was 6809707 - A

2

SPRING ASSY See Illustration TRACK TENSIONER/ PE2668 recoil

3

26GM10020

BOLT Was 26GM10030 - B

4

IDLER ASSY See Illustration FRONT IDLER/ PE1911

5

TRACK ROLLER See Illustration TRACK ROLLER/ PE1914

6

6534234

BRACKET track slide

7

51DM10

NUT

8

6813372SUB

SPROCKET, MOTOR DRIVE TRACK, PAINTED 12 hole - Was 6813372 - A

9

TRACK, RUBBER See Illustration TRACKS/ NA6206

9

TRACK, STEEL See Illustration TRACKS/ PE2456

10

6655124

BEARING swing - 96 teeth on swing gear

11

55CM1225

BOLT

12

6597346

COVER

13

6596723

COVER

14

7115357

COVER

15

29CM1030

BOLT

16

26GM10020

BOLT Self tapping

17

6652970

GREASE FITTING bearing

18

6596396

PLATE guide - steel track

19

55CM1235

BOLT

20

7CM1280

BOLT

21

51DM12

NUT

22

TRAVEL MOTOR See Illustration TRAVEL MOTOR/ MS2230

23

18EM1224

WASHER
