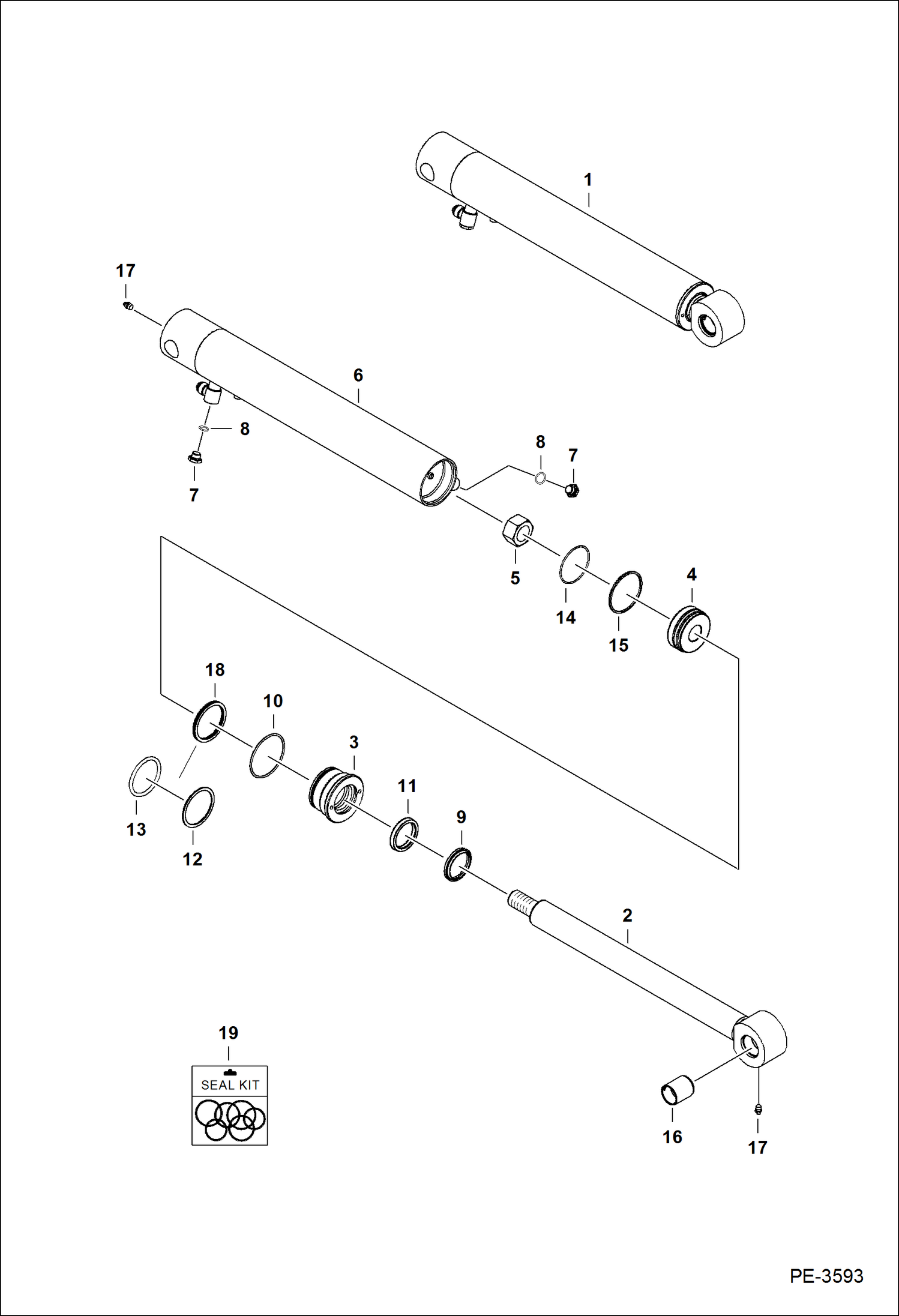

Запчасти Bobcat 329 BUCKET CYLINDER HYDRAULIC SYSTEM

1

7147447

CYLINDER Ref. 2-17 - Also Order Ref. 16 & (2) of 6652915 dust seal

2

7147445

ROD Also Order Ref. 16, 17, & (2) of 6652915 dust seal

3

6537294

HEAD

4

7147314

PISTON

5

6810540

NUT

6

6812166

HOUSING W/Ref. 7 & 8

7

6812171

PLUG W/Ref. 8

8

79K7

O RING 10

9

6686998

WIPER, ROD CYL

10

6667328

SEAL

11

82K236

O-RING

12

73K234

BACK-UP RING back-up

13

58K234

O RING 10

14

25K30226

O RING 10

15

6513466

PISTON RG sealing

16

6804139

BUSHING

17

10H25

FITTING, GREASE 5 grease

18

7008354

SEAL, QUAD

19

7137966

SEAL KIT Ref. 5, 9-11, 14, 15, & 18
