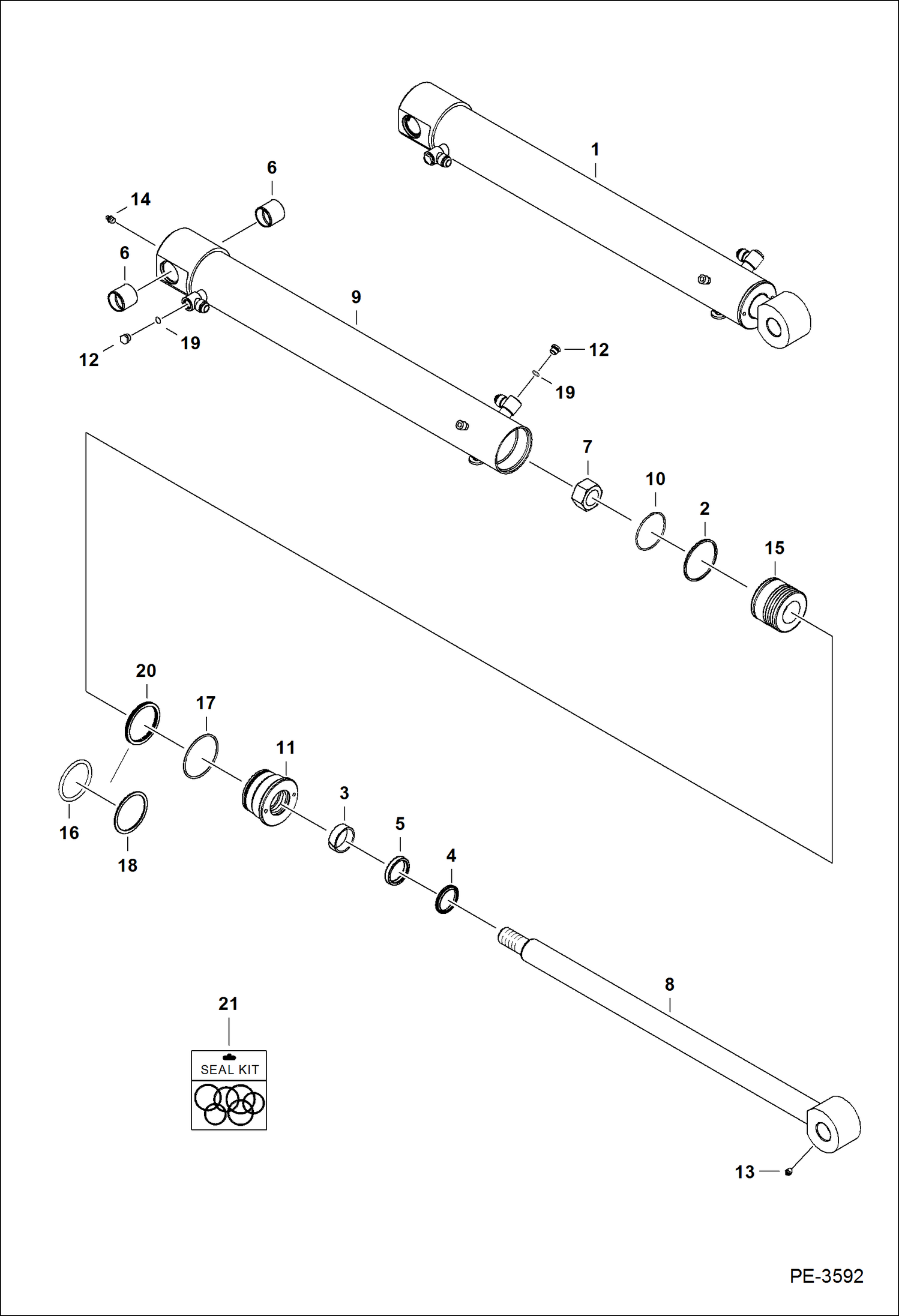

Запчасти Bobcat 329 BOOM CYLINDER HYDRAULIC SYSTEM

1

7156579

CYLINDER, BOOM Ref. 2-19 - Also Order Ref. 6 & (2) of 6652915 dust seal - Was 7156580 - A

2

6513466

PISTON RG

3

7000771

RING, WEAR Was 6698133 - A

4

6686999

WIPER, ROD CYL

5

6667327

SEAL

6

6803982

BUSHING

7

6810540

NUT

8

7148237

ROD Also Order Ref. 13 - Was 7148236 - A

9

6814981

HOUSING Also Order Ref. 6 & (2) of 6652915 dust seal

10

25K30226

O RING 10

11

6814983

HEAD

12

6816855

PLUG W/Ref. 19

13

10H25

FITTING, GREASE 5 grease

14

12H15

FITTING, GREASE 5 grease

15

7147318

PISTON

16

58K234

O RING 10

17

82K236

O-RING

18

73K234

BACK-UP RING back-up

19

75K7

O-RING

20

7008354

SEAL, QUAD

21

7162060

KIT, SEAL Ref. 2, 4, 5, 7, 10, 17, & 20 - Was 7156581 - A
