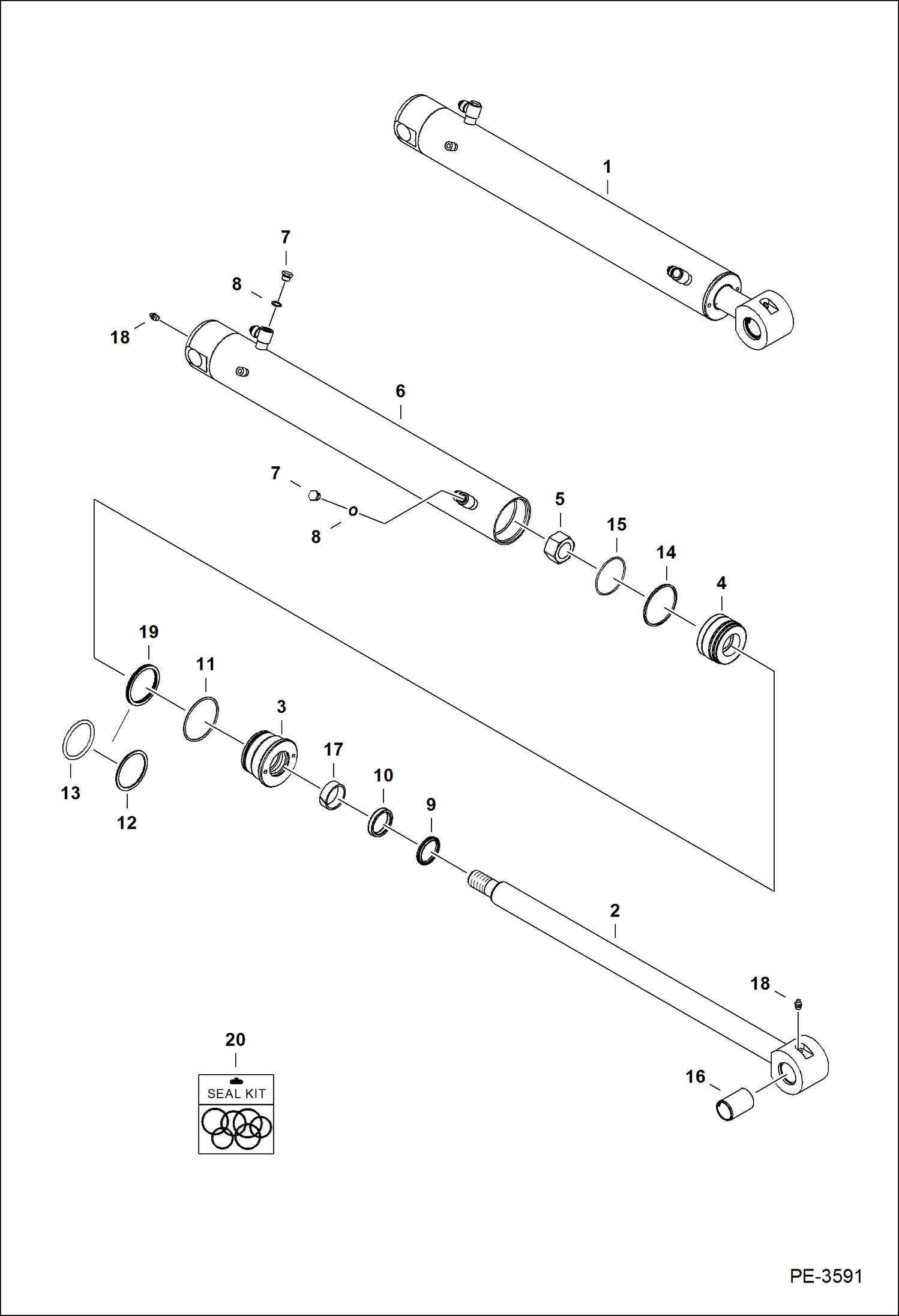

Запчасти Bobcat 329 ARM CYLINDER HYDRAULIC SYSTEM

1

7156578

CYLINDER, ARM W/Ref. 2-17 - Also Order Ref. 16 & (2) of 6652915 dust seal - Was 7148322

2

7148323

ROD Also Order Ref. 16 & (2) of 6652915 dust seal

3

6814983

HEAD

4

7147317

PISTON

5

6810540

NUT

6

6817317

HOUSING 3.5'' (88,9 mm) OD - 3.26'' (82,8 mm) ID

7

6816855

PLUG W/Ref. 8

8

75K6

O-RING

9

6686999

WIPER, ROD CYL

10

6667327

SEAL

11

82K236

O-RING

12

73K234

BACK-UP RING back-up

13

58K234

O RING 10

14

6513466

PISTON RG

15

25K30226

O RING 10

16

6803863

BUSHING

17

7000771

RING, WEAR Was 6698133 - A

18

10H25

FITTING, GREASE 5

19

7008354

SEAL, QUAD

20

7162060

KIT, SEAL Refs. 5, 9-11, 14, 15, & 19 - Was 7156581 - A
