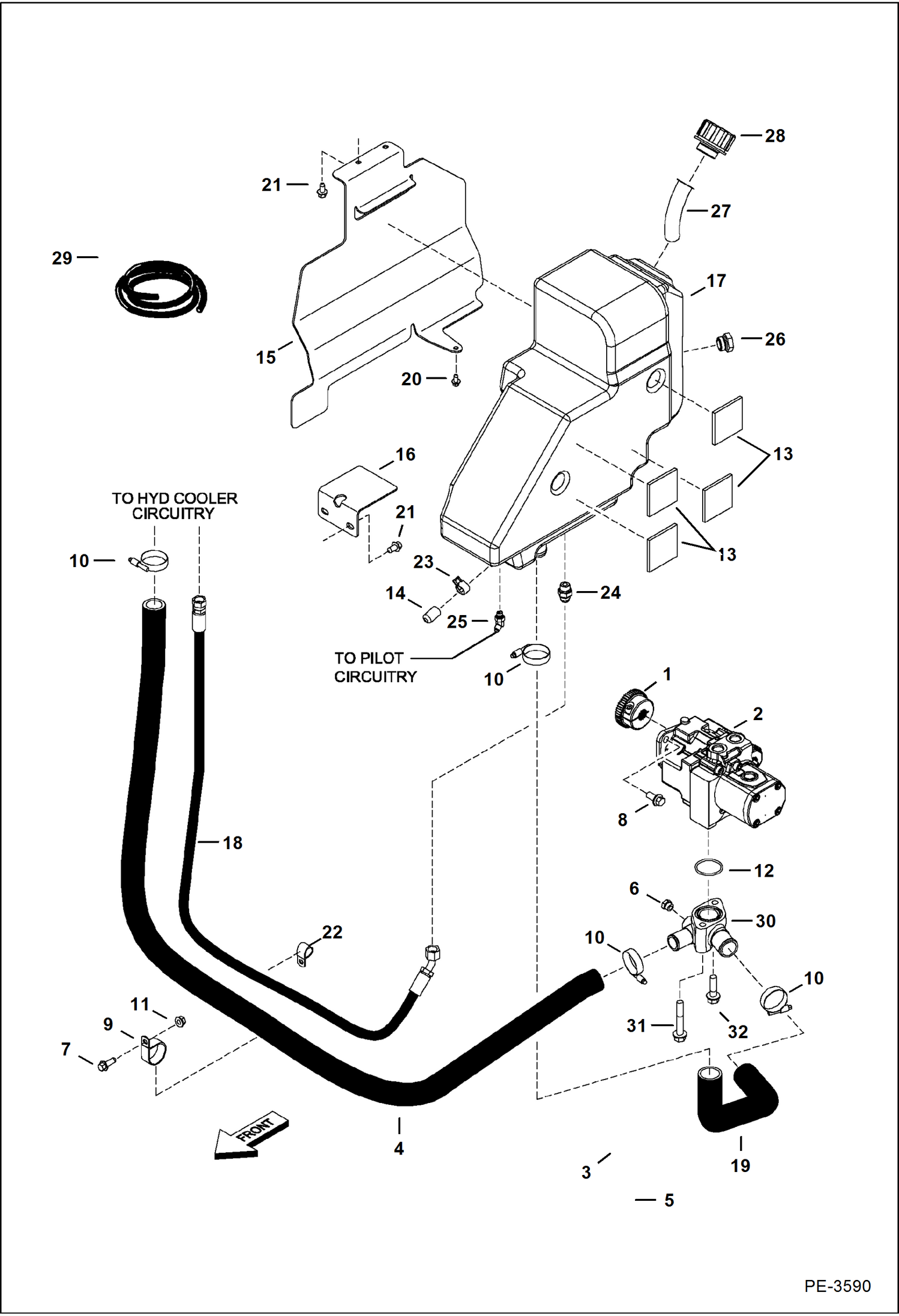

Запчасти Bobcat 329 HYDRAULIC CIRCUITRY (Tank & Pump) HYDRAULIC SYSTEM

1

6676535

COUPLER

2

6698075

PUMP, HYD PISTON See Illustration HYDRAULIC PISTON PUMP/ MS2216

3

7125950

MANIFOLD

4

HOSE NLA - 83.5'' (2121 mm) long - Order Ref. 29

5

29CM1235

BOLT

6

24K6

FITTING

6

79K8

O RING 10

7

26GM10030

BOLT

8

29CM1225

BOLT

9

30H85

CLAMP

10

42HC200

CLAMP

11

43DM10

NUT

12

58K225

O RING 10

13

6578278

PAD

14

6680398

CAP

15

7125941

BRACKET

16

7101356

MOUNT

17

7125940

TANK

18

7125285

HOSE ASSY

19

7125389

HOSE

20

26GM8016

SCREW

21

26GM10020

BOLT

22

30H65

CLIP

23

5HM20

CLAMP

24

15KB0808

FITTING, HYD CONNECTOR

24

79K8

O RING 10

25

18KB0404

FTG HYD ELBOW 45

25

79K4

O RING 10

26

6665915

GAUGE

26

79K12

O RING 10

27

7134222

SCREEN fill

28

6692836

CAP, HYDRAULIC TANK W/ 79K20 O-ring

29

6673825

HOSE bulk - sold per foot

30

29CM1270

BOLT
