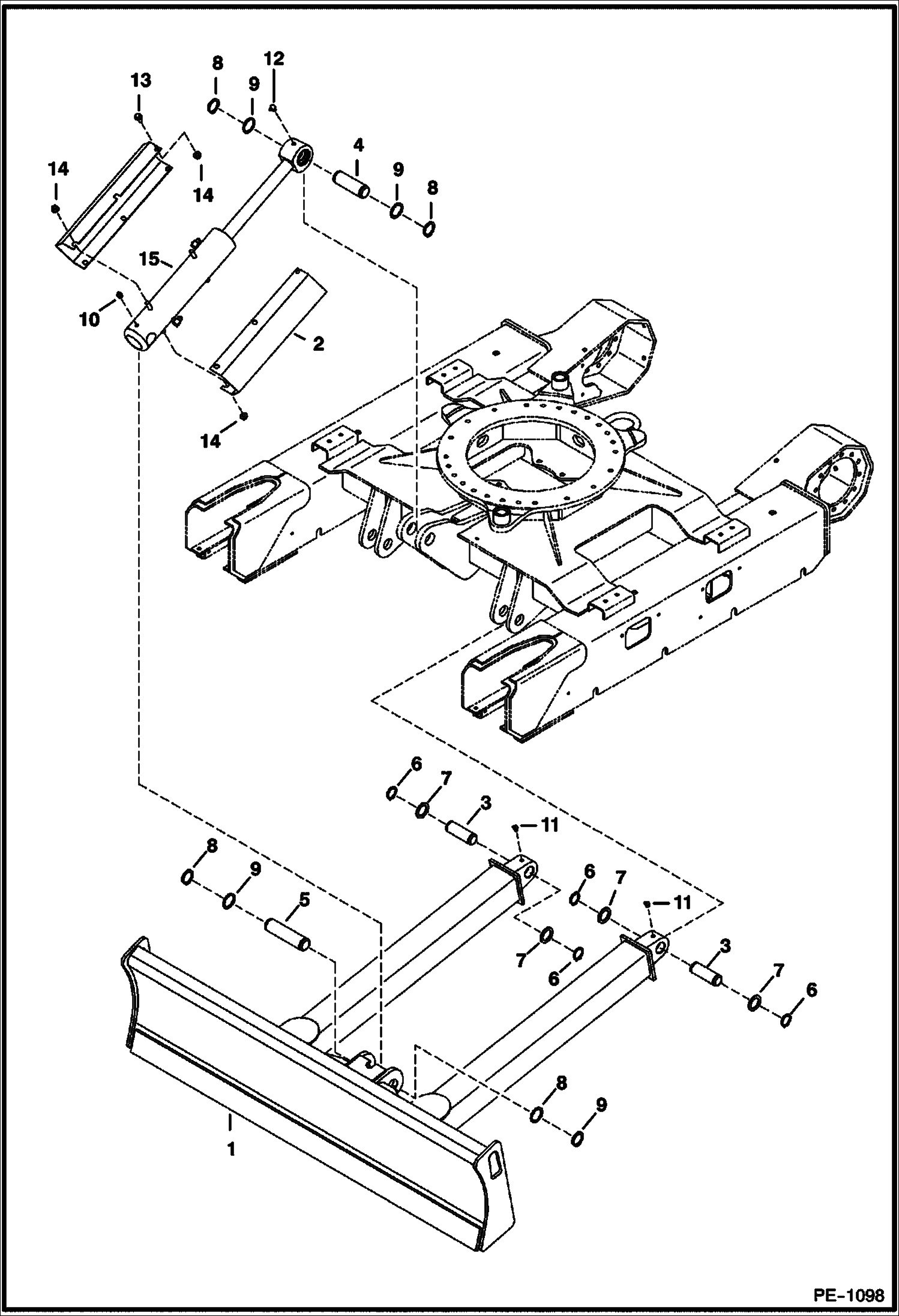

Запчасти Bobcat 329 BLADE WORK EQUIPMENT

1

7129857

BLADE W/A

1

6809204

EDGE, CUTTING WELD ON 58.68'' cutting

1

6597494

PIVOT MOUNT weld on

2

6816249

SHIELD, CYL 23'' (584 mm) long

3

6597459

PIN

4

6597460

PIN

5

6597461

PIN

6

6534154

RING

7

6534111

WASHER

8

6665618

RING

9

6666549

WASHER

10

10H25

FITTING, GREASE 5

11

11H15

GREASE FITTING

12

12H15

FITTING, GREASE 5

13

29CM1020

BOLT

14

43DM10

NUT

15

CYLINDER See Illustration BLADE CYLINDER/ PE3654 blade
