Запчасти Bobcat 329 UPPERSTRUCTURE MAIN FRAME

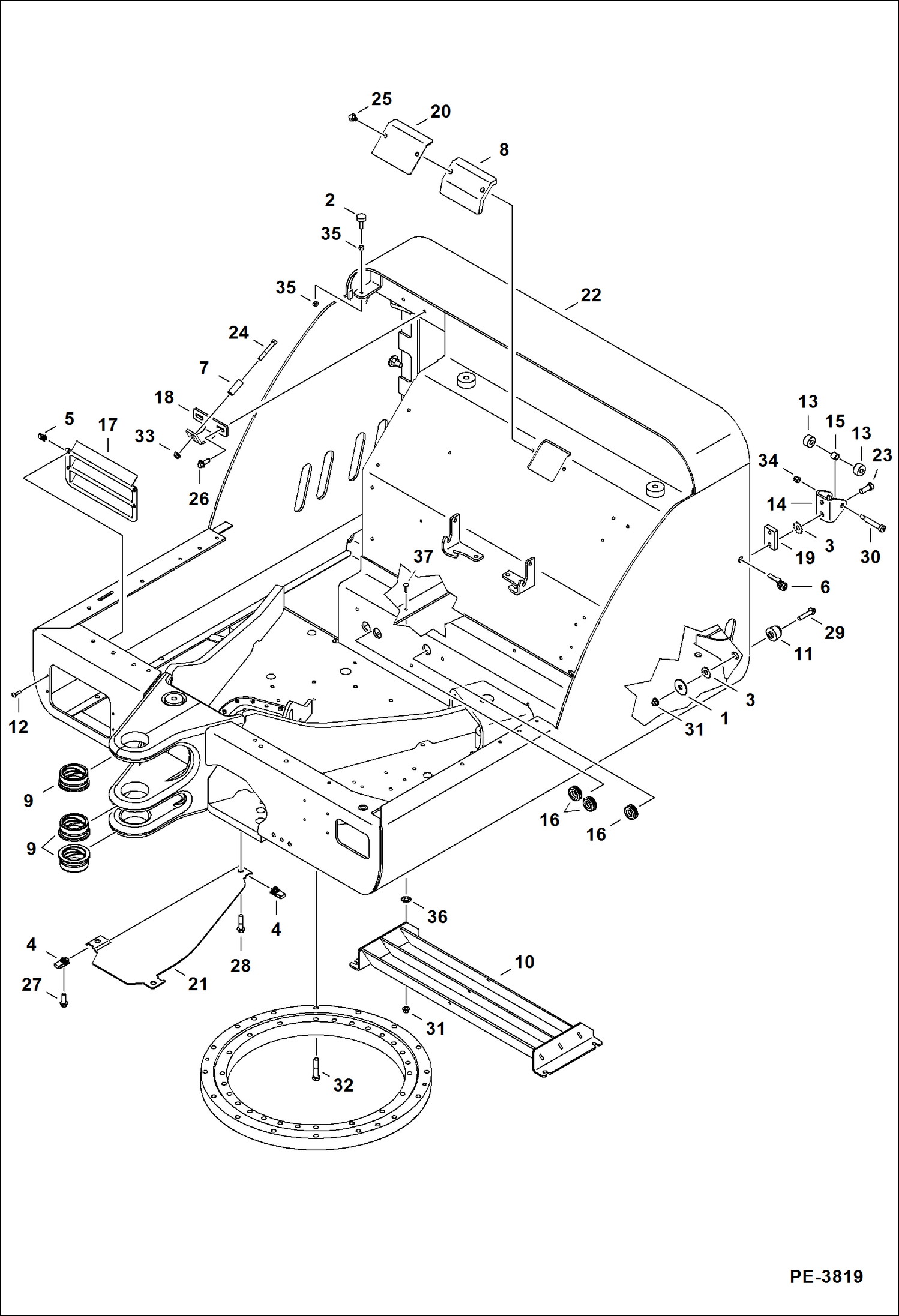

Схема запчастей Bobcat 329 - UPPERSTRUCTURE MAIN FRAME

Артикул

Название

Примечание

Количество

1

6560899

WASHER flat

2

6655399

BUMPER

3

6675273

WASHER

4

6675722

NUT clip

5

6676026

NUT

6

6678025

LOCK W/O key - Ignition key 6693241

7

6719550

TUBE

8

6807904

INSULATION

9

6807956

BUSHING

10

6808051

LOUVER

11

6808365

BUMPER

12

6809030

SCREW

13

6809726

ROLLER

14

6809727

CHANNEL

15

6809734

BUSHING

16

6810133

GROMMET

17

6810578

LOUVER

18

6810664

MOUNT

19

6810802

BAR striker

20

6816756

COVER

21

7103532

PLATE

22

7130840

UPPERSTRUCTURE

23

17C820

BOLT

24

17C640

BOLT 5

25

26GM10020

BOLT

26

26GM10030

BOLT

27

29CM1030

BOLT

28

29CM1045

BOLT

29

29CM1050

BOLT

30

38C840

BOLT

31

51DM10

NUT

31

51DM10

NUT

32

55CM1260

SCREW

33

55D6

NUT

34

59D6

NUT

35

61D5

NUT

36

6674264

RETAINER NUT

37

26GM10020

BOLT from the bottom up - Use W/O Ref. 31 & 36

37

28CM1030

BOLT as shown - Use W/Ref. 31 & 36

Выбрано товаров: 39
