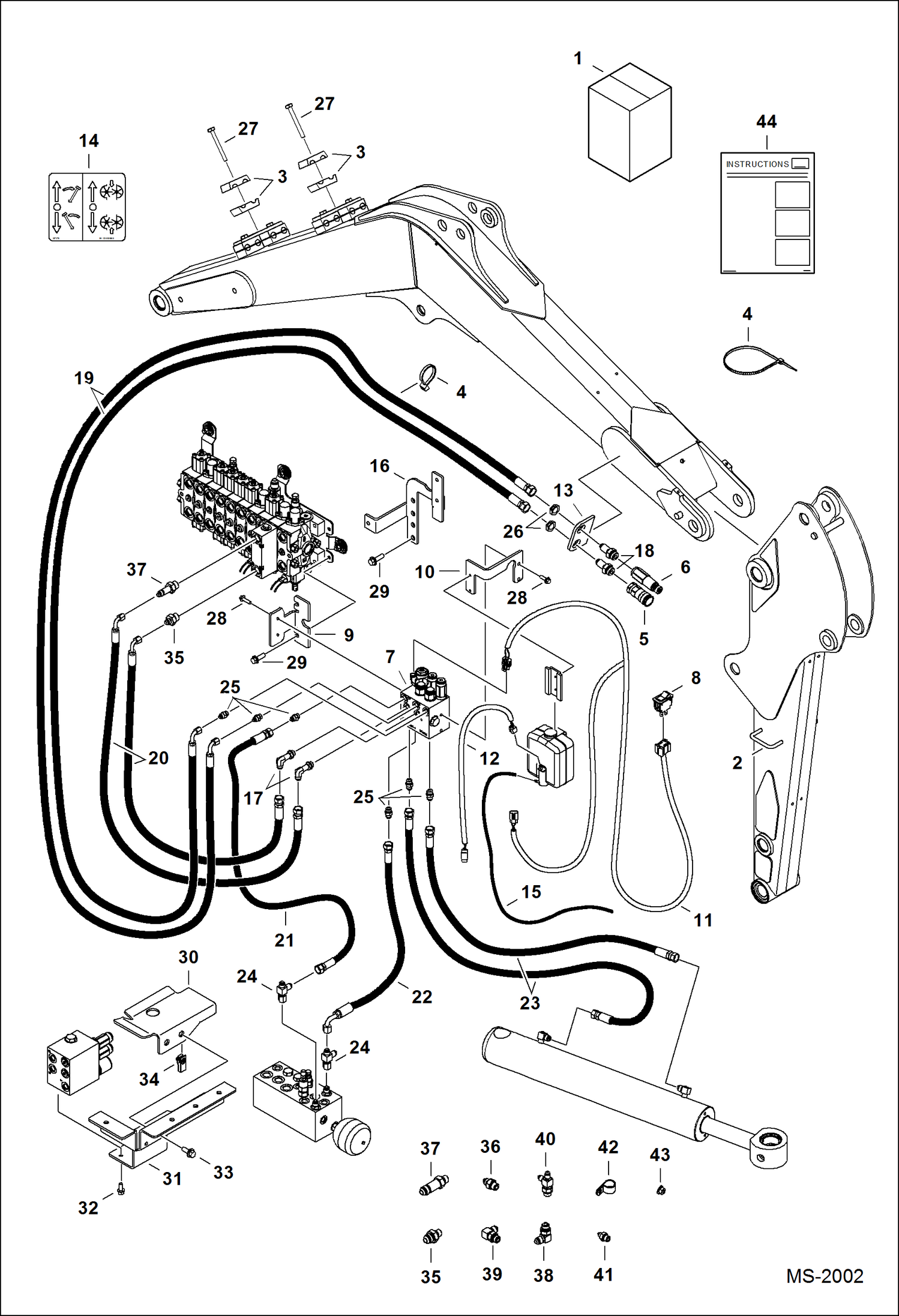

Запчасти Bobcat 329 SECONDARY AUXILIARY (Kit) ACCESSORIES & OPTIONS

1

KIT SALES - Ref. 2-44 - Sales #7111149

2

6586391

GUIDE weld-on

3

6592506

CLAMP hyd tube

4

6624289

STRAP, TIE

5

6672960

COUPLER, FF FEMALE straight

6

6674688

COUPLER, FF MALE straight

7

6679888

VALVE ASSY See Illustration SECONDARY AUXILIARY VALVE/ MS1471

8

6679906

SWITCH 2nd auxiliary

9

6958242

BRACKET valve

10

6958243

BRACKET water bottle

11

6958338

HARNESS 2nd auxiliary

12

6958340

HARNESS

13

6958354

PLATE

14

6958363

DECAL

15

6958382

HOSE

16

7130920

MOUNT Was 6958527 - A

17

6812815

FITTING

17

79K6

O RING 10

18

6812816

ADAPTER

18

79K12

O RING 10

19

6958349

HOSE

20

6958350

HOSE

21

6958351

HOSE (1) 90 degree & (1) straight end - not in kit

21

7170356

HOSE, HYD ASSY (2) straight ends

22

6958352

HOSE

23

6958383

HOSE

24

13K3

TEE

25

15KB0606

FITTING, HYD CONNECTOR

25

79K6

O RING 10

26

86F7

LOCK NUT

27

1CM890

BOLT

28

17C516

BOLT flange - Was 35C516 - A

29

84G3712

BOLT 5 self tapping - Was 61G612 - A

30

7162987

BRACKET, BATTERY Was 7109867 - A

31

7162986

BRACKET, BATTERY Was 7110808 - A

32

29CM1020

BOLT

33

17C512

BOLT 5 flange - Was 35C516

34

6675722

NUT Was 43DM10

35

15KB0608

FITTING, HYD CONNECTOR

35

79K8

O RING 10

36

15KB0806

FITTING, HYD CONNECTOR not used on this model

36

79K6

O RING 10

37

16KB0608

FITTING, HYD CONNECTOR

37

79K8

O RING 10

38

17KB0406

FITTING, HYD ELBOW not used on this model

38

79K6

O RING 10

39

17KB0606

FITTING not used on this model

39

79K6

O RING 10

40

21KB0406

FTG HYD STRAIGHT TEE not used on this model

40

79K6

O RING 10

41

17KB0606

FITTING

41

15KB0406

FTG HYD S CONNECTOR

41

79K6

O RING 10

42

30H50

CLIP

43

51DM10

NUT

44

6901784

INSTRUCTIONS
