Запчасти Bobcat 329 ENGINE & UPPER GASKET KIT Kubota - D1703-M-E3B - Interim Tier IV Replacement REPLACEMENT ENGINE

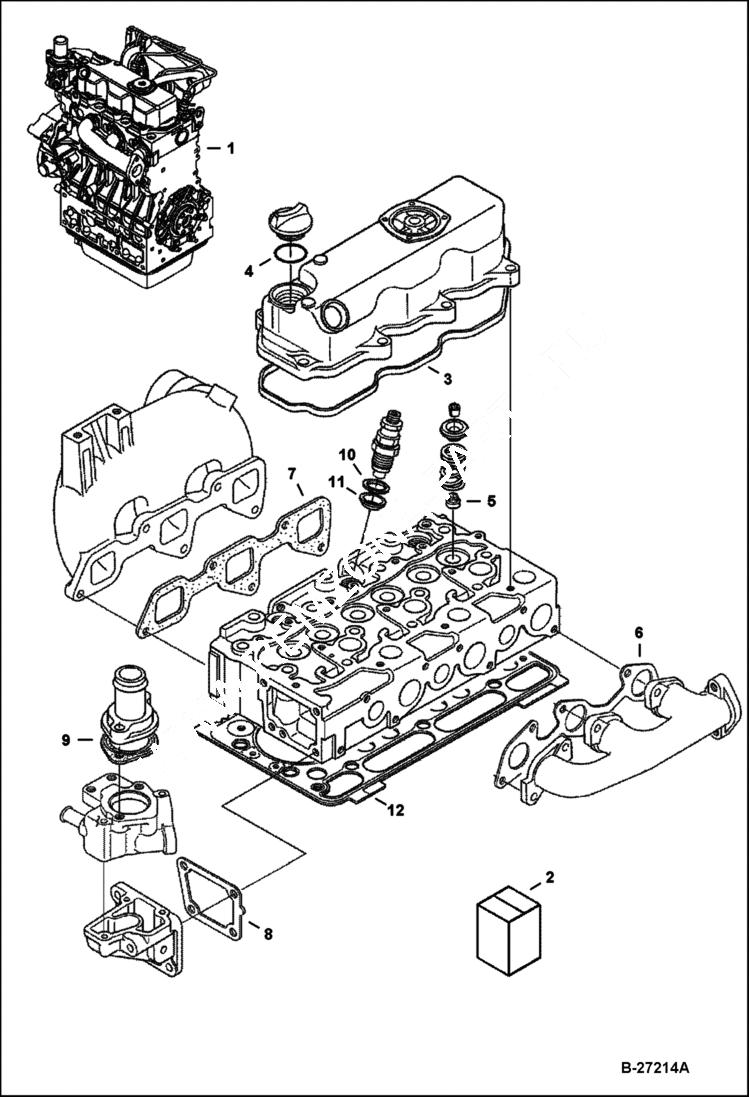

Схема запчастей Bobcat 329 - ENGINE & UPPER GASKET KIT Kubota - D1703-M-E3B - Interim Tier IV Replacement REPLACEMENT ENGINE

Артикул

Название

Примечание

Количество

1

6692566

ENGINE, D1703-M-E3B-BC-1

1

6692566REM

ENGINE, D1703-M-E3B-BC-1

2

6689011

KIT, GASKET ENG UPPER Ref. 3-11

3

6685861

GASKET See Illustration HEAD COVER/ B22881A - valve cover

4

6684782

O-RING See Illustration HEAD COVER/ B22881A - oil fill plug

5

6653830

SEAL, STEM VALVE See Illustration VALVE & ROCKER ARM/ B22893A

6

6685878

GASKET See Illustration MANIFOLDS/ B22894A - exhaust manifold

7

6685876

GASKET See Illustration MANIFOLDS/ B22894A - intake manifold

8

6684863

GASKET See Illustration WATER FLANGE AND THERMOSTAT/ B27049 - water outlet

9

6666802

GASKET See Illustration WATER FLANGE AND THERMOSTAT/ B27049 - thermostat housing

10

6655218

GASKET See Illustration NOZZLE HOLDER & GLOW PLUGS/ B22889A - injector nozzle

11

6655872

HEAT SEAL See Illustration NOZZLE HOLDER & GLOW PLUGS/ B22889A - injector nozzle

12

GASKET, HEAD See Illustration CYLINDER HEAD/ B22879A - not in kit

Выбрано товаров: 13
