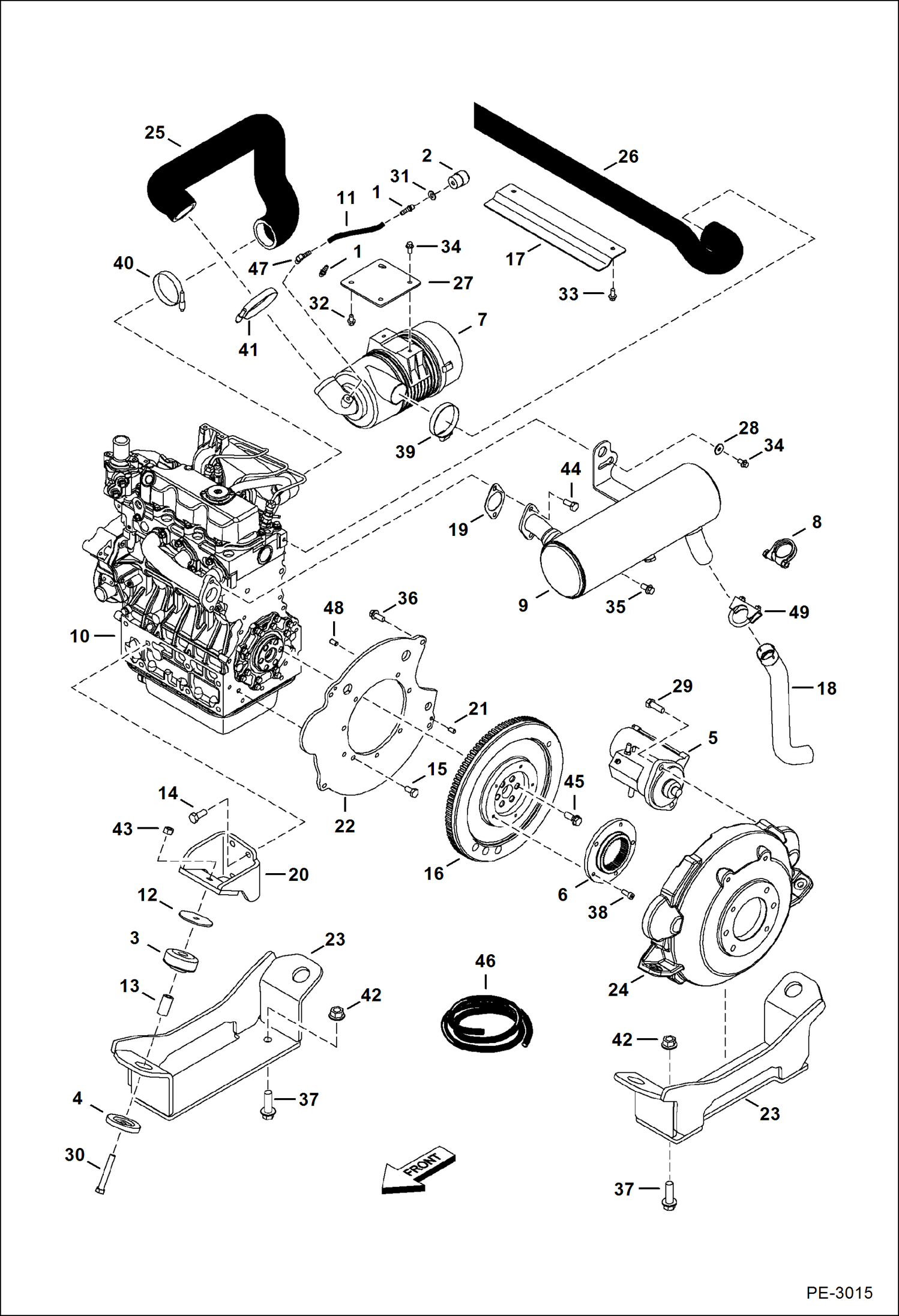

Запчасти Bobcat 329 ENGINE & ATTACHING PARTS (Air Cleaner, Muffler, Engine Mounts) POWER UNIT

1

6505813

CONNECTOR

2

6515007

GAUGE

3

6661785

MOUNT, ENG

4

6661787

WASHER

5

STARTER See Illustration STARTER/ D2437

6

6670757

COUPLER

7

6670851

AIR CLEANER See Illustration AIR CLEANER/ C3490

8

CLAMP NLA - Order Ref. 49 - Was 6677367 - A

9

MUFFLER NLA - Order 7140377 muffler & 7140373 pipe - Was 6678077 - A

9

7140377

MUFFLER

10

ENGINE, D1703-M-E2B-BOBCAT-1 See Illustration ENGINE & UPPER GASKET KIT/ B27214 NLA - Was 6683188 - A

11

HOSE NLA - 11'' (280 mm) long - Order Ref. 46

12

6705106

WASHER

13

6706043

SPACER

14

6719828

BOLT

15

6733378

SCREW

16

7158134

FLYWHEEL, ENG ASSY *SEE NOTES* See BTI388exc - Was 6801196 - A

16

6510470

RING GEAR

17

6810039

COVER

18

7140373

PIPE exhaust - Was 7130436 - A

19

6811602

GASKET

20

6814278

MOUNT

21

7101341

PIN

22

7126918

PLATE Also Order Ref. 48

23

7109895

MOUNT

24

7121429

HOUSING MACH

25

7125179

HOSE

26

7125180

HOSE

26

7131201

HOSE

27

7125830

PLATE

28

17EM80

WASHER

29

1CM1235

BOLT

30

1CM1280

BOLT

31

25E17

WASHER 5

32

26GM8016

SCREW

33

26GM8020

SCREW

34

29CM816

SCREW

35

29CM1020

BOLT

36

29CM1025

BOLT

37

29CM1650

BOLT

38

3GM820

SCREW

39

42H40

HOSECLAM5

40

42HC300

CLAMP

41

42HC350

CLAMP

42

51DM16

NUT

43

53DM12

NUT

44

5CM1025

BOLT

45

6598275

BOLT Was 6652487 - A

46

6557720

HOSE bulk - sold per foot

47

6515156

CONNECTOR barbed

48

20JM1025

DOWEL PIN Use W/7126918 plate

49

710706

CLAMP
