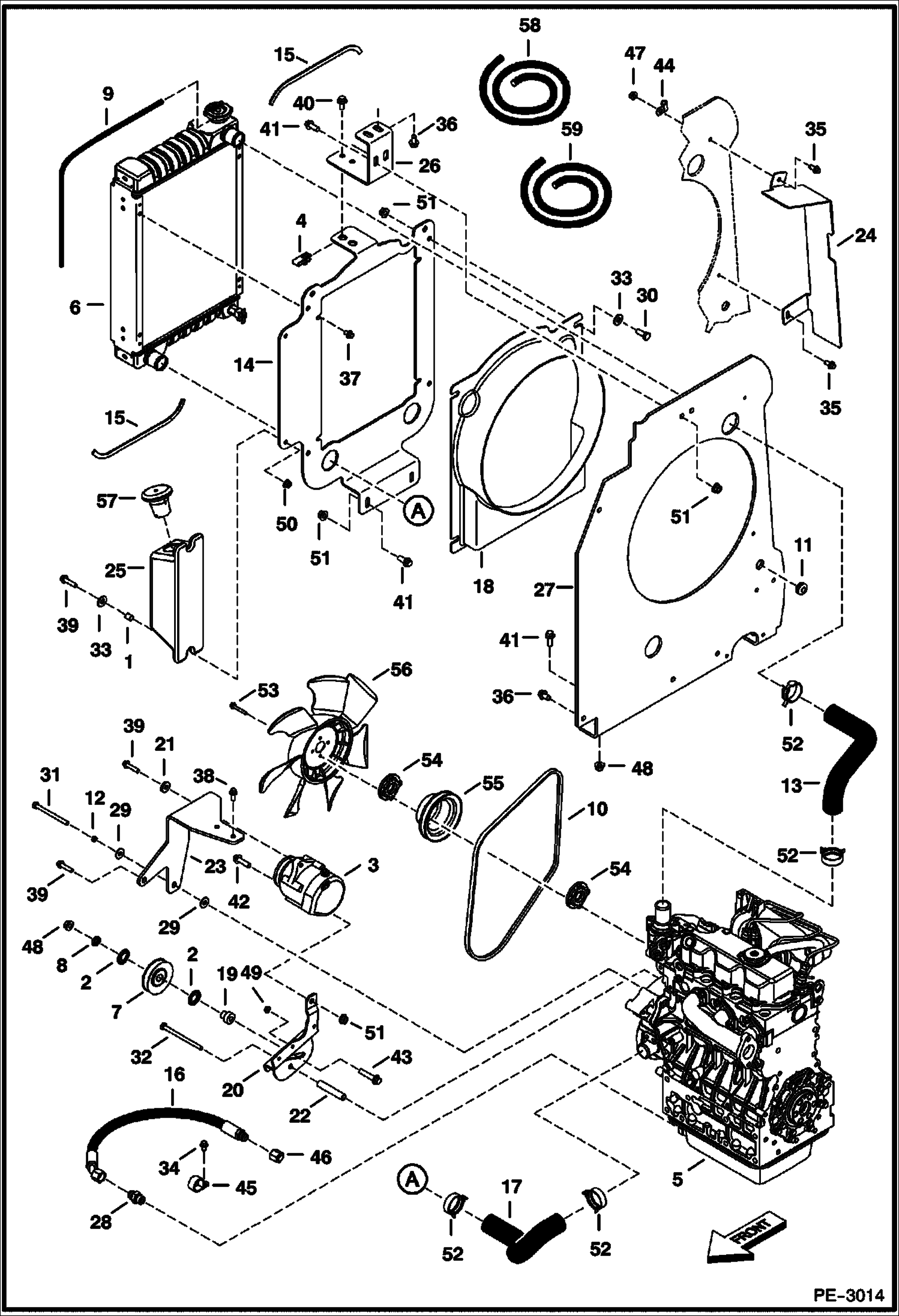

Запчасти Bobcat 329 ENGINE & ATTACHING PARTS (Radiator Water Exchanger) POWER UNIT

1

6593013

SPACER

2

6660995

GREASE RING

3

ALTERNATOR, 40 AMP See Illustration ALTERNATOR/ C3456

4

6675722

NUT

5

ENGINE, D1703-M-E2B-BOBCAT-1 See Illustration ENGINE & UPPER GASKET KIT/ B27214 NLA - Was 6683188 - A

6

6684389

EXCHANGER

6

6646678

CAP

7

6685136

PULLEY

8

6704444

WASHER

9

HOSE NLA - 30'' (762 mm) long - Order Ref 58

10

6725905

BELT cooling fan drive - 46'' (1168 mm)

11

6800788

GROMMET

12

6807220

SPACER

13

6808842

HOSE

14

6808844

PLATE

15

SEAL NLA - 15'' (381 mm) long - Order Ref 59

16

6811407

HOSE

17

6816553

HOSE

18

6816905

SHROUD

19

6817028

SPACER

20

6818363

BRACKET

21

6818364

SPACER

22

6818365

SPACER

23

6818367

BRACKET

24

7100658

GUARD

25

6593012

TANK

26

7123770

BRACKET

27

7123772

PLATE

28

15KB0808

FITTING, HYD CONNECTOR

28

79K8

O RING 10

29

17EM80

WASHER

30

1CM1025

BOLT

31

1CM8100

SCREW

32

1CM8120

SCREW

33

25E18

WASHER

34

26GM8016

SCREW

35

26GM8020

SCREW

36

26GM10020

BOLT

37

29CM812

BOLT

38

29CM820

SCREW

39

29CM835

BOLT

40

29CM1020

BOLT

41

29CM1025

BOLT

42

29CM1035

SCREW

43

29CM1050

BOLT

44

30H23

CLAMP

45

30H57

CLAMP

46

36K6

CAP

47

43DM8

NUT

48

43DM10

NUT

49

51DM6

NUT

50

51DM8

NUT

51

51DM10

NUT

52

5HM44

CLAMP

53

60CM640

SCREW

54

6683158

COLLAR provided W/ engine as loose pieces

55

6684226

PULLEY provided W/ engine as loose pieces

55

6680945

PULLEY US option

56

6680464

FAN provided W/ engine as loose pieces

57

6702797

CAP

58

6577822

HOSE bulk - sold per foot

59

6648416

SEAL BULK /FT bulk - sold per foot
