Запчасти Bobcat 329 ELECTRICAL (Engine) ELECTRICAL SYSTEM

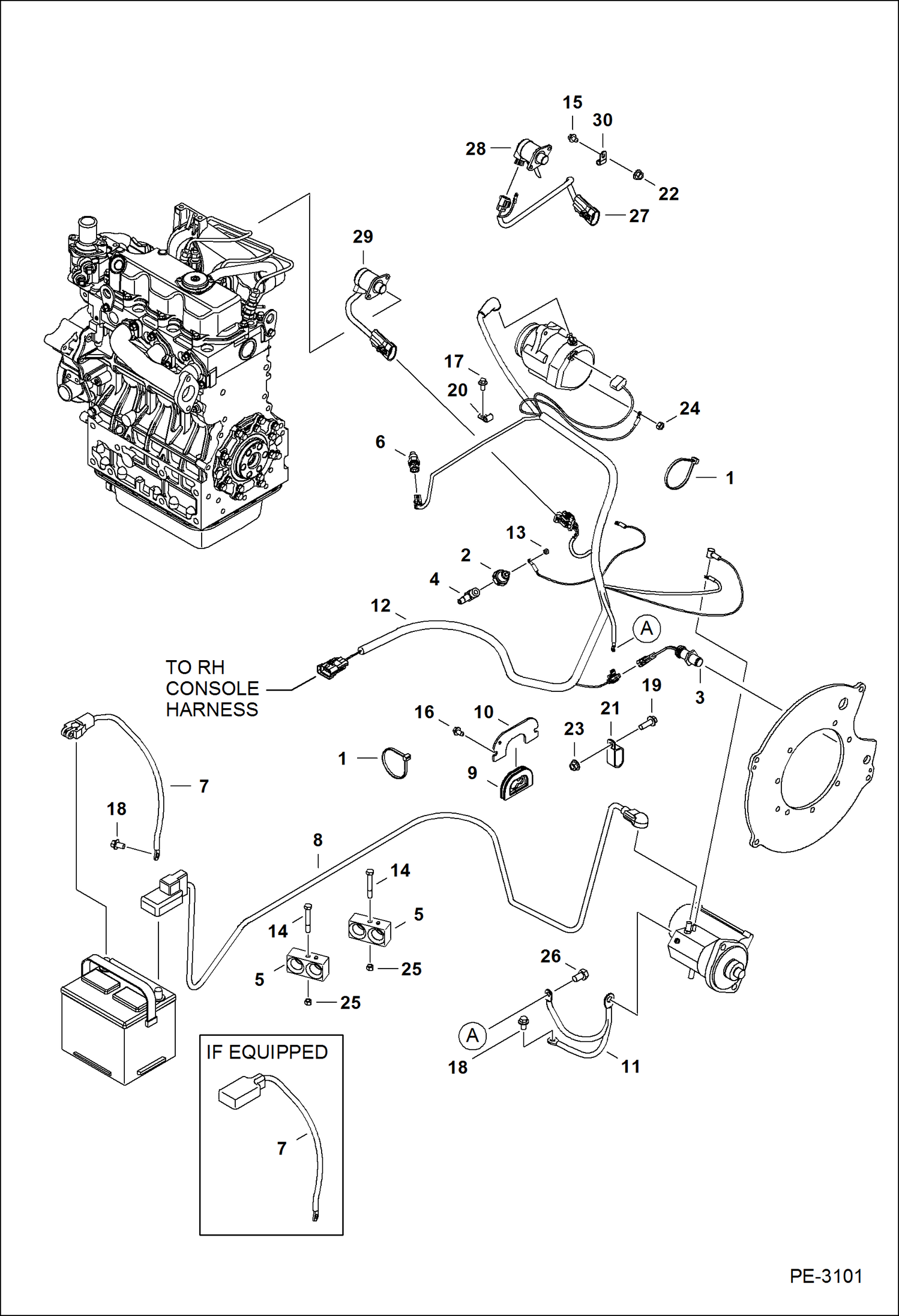

Схема запчастей Bobcat 329 - ELECTRICAL (Engine) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6631010

SWITCH, PRESS OIL ENG

3

6684037

SENSOR

4

6707040

ELBOW

5

6715197

CLAMP

6

6718414

SENDER, TEMP ENG

7

6807431

CABLE

8

6809043

CABLE

9

6810364

GROMMET

10

6810365

GROMMET PLATE

11

6810763

CABLE

12

HARNESS NLA - engine harness W/Ref. 27- Order 7125860 harness - also Order Ref. 27 if Ref. 28 is used - Was 7125860 - A

12

7125860

HARNESS engine - W/O Ref. 27

13

12D8

NUT

14

1CM860

BOLT

15

26GM8013

BOLT

16

26GM8016

SCREW

17

29CM816

SCREW

18

29CM1016

BOLT

19

29CM1030

BOLT

20

30H19

CLIP

21

31H42

CLIP

22

43DM6

NUT

23

43DM10

NUT

24

4DM8

NUT

25

53DM8

NUT

26

6CM1220

BOLT

27

6814830

HARNESS fuel shutoff

28

SOLENOID fuel shutoff W/molded connector - Order Ref. 29 - Was 6684826 - A

29

6691498

SOLENOID, SHUTOFF FUEL 240 mm (9.45'') lead

30

30H26

CLIP Was 30H19 - B

Выбрано товаров: 31
