Запчасти Bobcat 328 HYDRAULIC CIRCUITRY (L.H. Joystick Controls (Swing Motor & Boom) (Standard Control Pattern) (S/N 514013001-514014899) HYDRAULIC SYSTEM

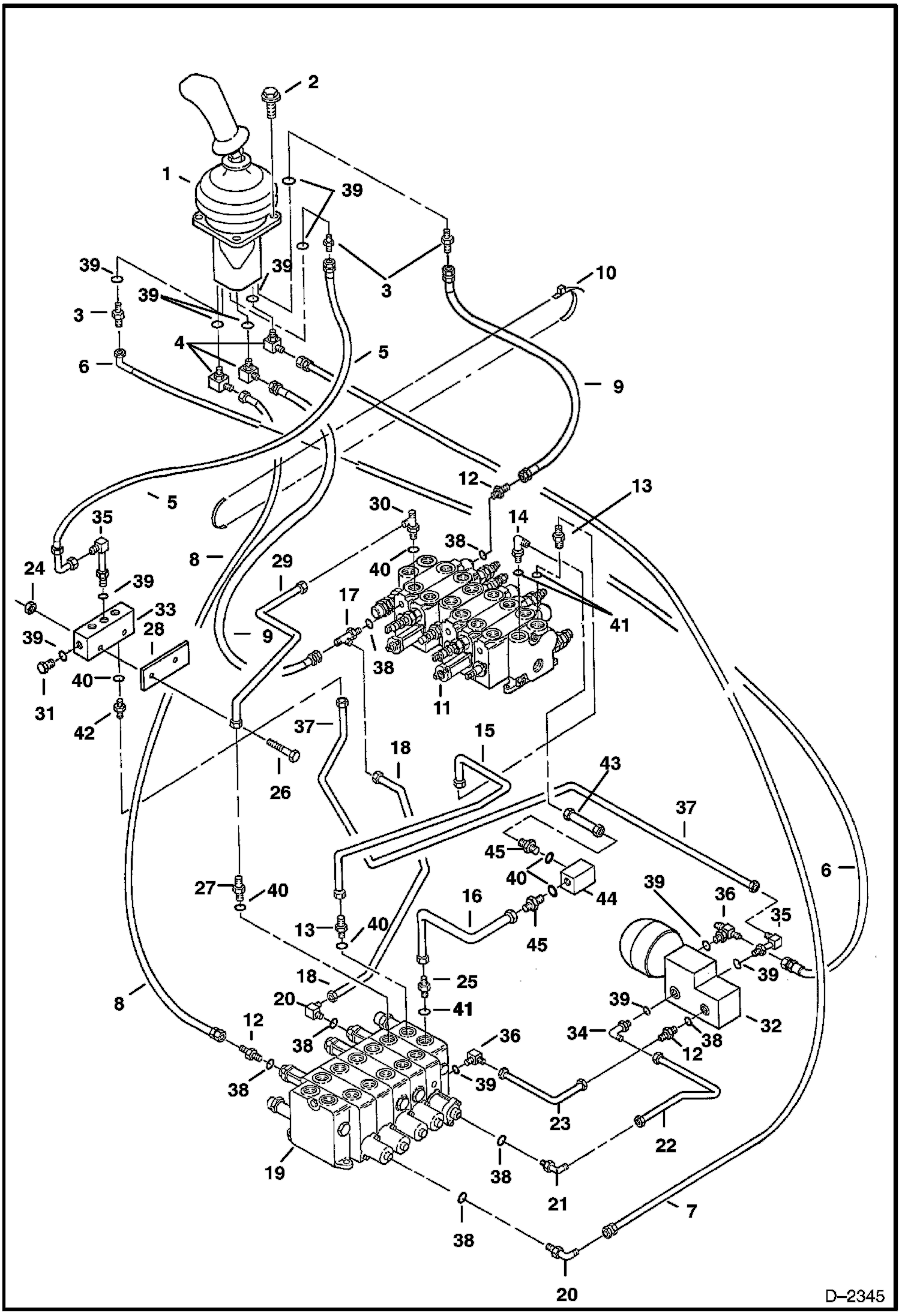

Схема запчастей Bobcat 328 - HYDRAULIC CIRCUITRY (L.H. Joystick Controls (Swing Motor & Boom) (Standard Control Pattern) (S/N 514013001-514014899) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6667721

JOYSTICK See Illustration L.H. JOYSTICK CONTROLS/ B14600 - LH

2

26GM8020

SCREW

3

1308081

ADAPTER W/Ref. 39

4

1316049

ELBOW W/Ref. 39

5

6628664

HOSE

6

6628666

HOSE

7

6597583

HOSE

8

6628668

HOSE

9

6597818

HOSE

10

6624289

STRAP, TIE

11

6668685

VALVE See Illustration CONTROL VALVE/ D2338 CONTROL

12

15K3

CONNECTOR W/Ref. 38

13

6800567

ADAPTER W/Ref. 41

14

17K7

ELBOW W/Ref. 41

15

6628471

TUBE

16

6801029

TUBE

17

21K3

CONNECTOR W/Ref. 38

18

6628672

TUBE

19

6668196

VALVE See Illustration CONTROL VALVE/ D2338 CONTROL

20

17K3

ELBOW W/Ref. 38

21

17KB0604

ELBOW UNION W/Ref. 38 - Was 6579647 - A

22

6628671

TUBE

23

6800090

TUBE

24

4DM8

NUT

25

731795

CONNECTR W/Ref. 41

26

1CM870

BOLT

27

6656391

CHECK VALVE W/Ref. 40

28

6628721

PLATE

29

6628464

TUBE

30

21K6

FITTING W/Ref. 40

31

24K5

PLUG W/Ref. 39

32

VALVE See Illustration ACCUMULATOR VALVE/ C3418 NLA - ACCUMULATOR - ORDER 6675141 - WAS 6667819 - A

32

6675141

VALVE See Illustration ACCUMULATOR VALVE/ C3418 ACCUMULATOR

33

6675142

BLOCK Was 6667830 - A

34

17K5

ELBOW W/Ref. 39

35

6558510

ELBOW W/Ref. 39

36

19K5

FITTING W/Ref. 39

37

6628706

TUBE

38

79K4

O RING 10

39

79K6

O RING 10

40

79K8

O RING 10

41

79K10

O RING 10

42

743108

FITTING W/Ref. 40

43

6628551

TUBE

44

6676658

VALVE assy - Was 6669593 - A

44

6672514

VALVE check

44

6672515

KIT, SEAL

45

731793

CONNECTR W/Ref. 40
