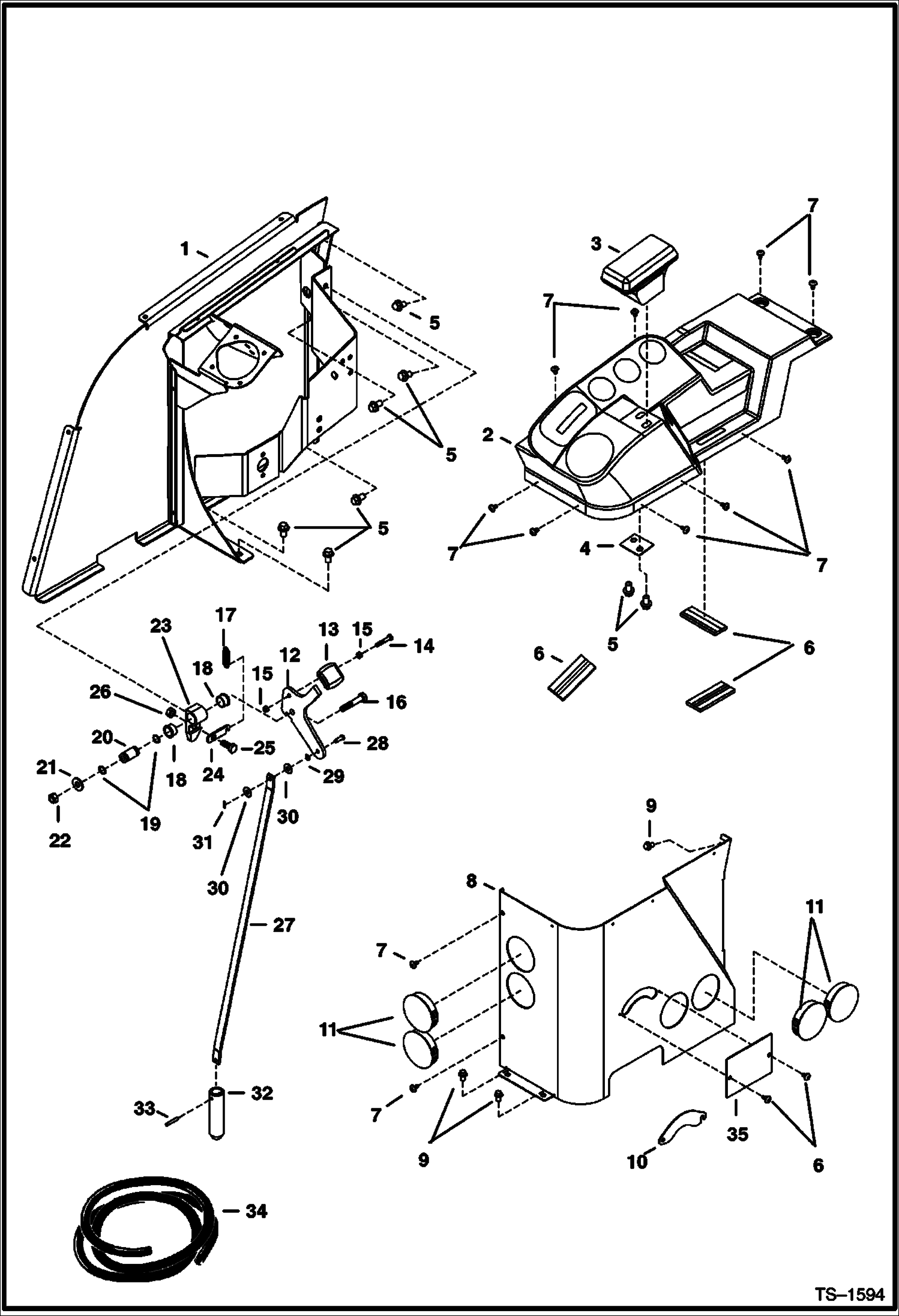

Запчасти Bobcat 328 R.H. CONTROL CONSOLE (S/N 514014900 & Above and 516611001 & Above) CONTROLS

1

6802545

CONSOLE R.H.

2

6803195

COVER Include Decals

3

6801672

ARM REST

4

6802644

PLATE

5

26GM10020

BOLT

6

FOAM NLA - 4'' (100 mm) long - Order Ref. 34

7

6589675

SCREW

8

6804330

PANEL Also Order Ref. 35 - Was 6801129 - A

9

26GM8016

SCREW

10

6802617

COVER Early machines only - See Ref. 35

11

6670864

PLUG

12

6802655

LEVER

13

6803199

HANDLE

14

1CM640

SCREW

15

1DM6

NUT Was 4DM6 - A

16

1CM1055

BOLT

17

6804271

SPRING

18

6536801

BUSHING

19

58K015

O-RING 10

20

6536545

SLEEVE

21

27E6

WASHER 5

22

53DM10

NUT

23

6537481

MOUNT

24

6804248

PLATE

25

1CM1025

BOLT

26

4DM10

NUT

27

6803363

LINK

28

2F4051

PIN

29

9EM60

WASHER

30

27E4

WASHER

31

1F216

PIN

32

6803382

PIN Swing Lock

33

14J1820

PIN Roll

34

7001454

SEAL, BULK/FT bulk - sold per foot - Was 6803188 - A

35

6802666

COVER can be used in place of Ref. 10 if new mtg holes are drilled
