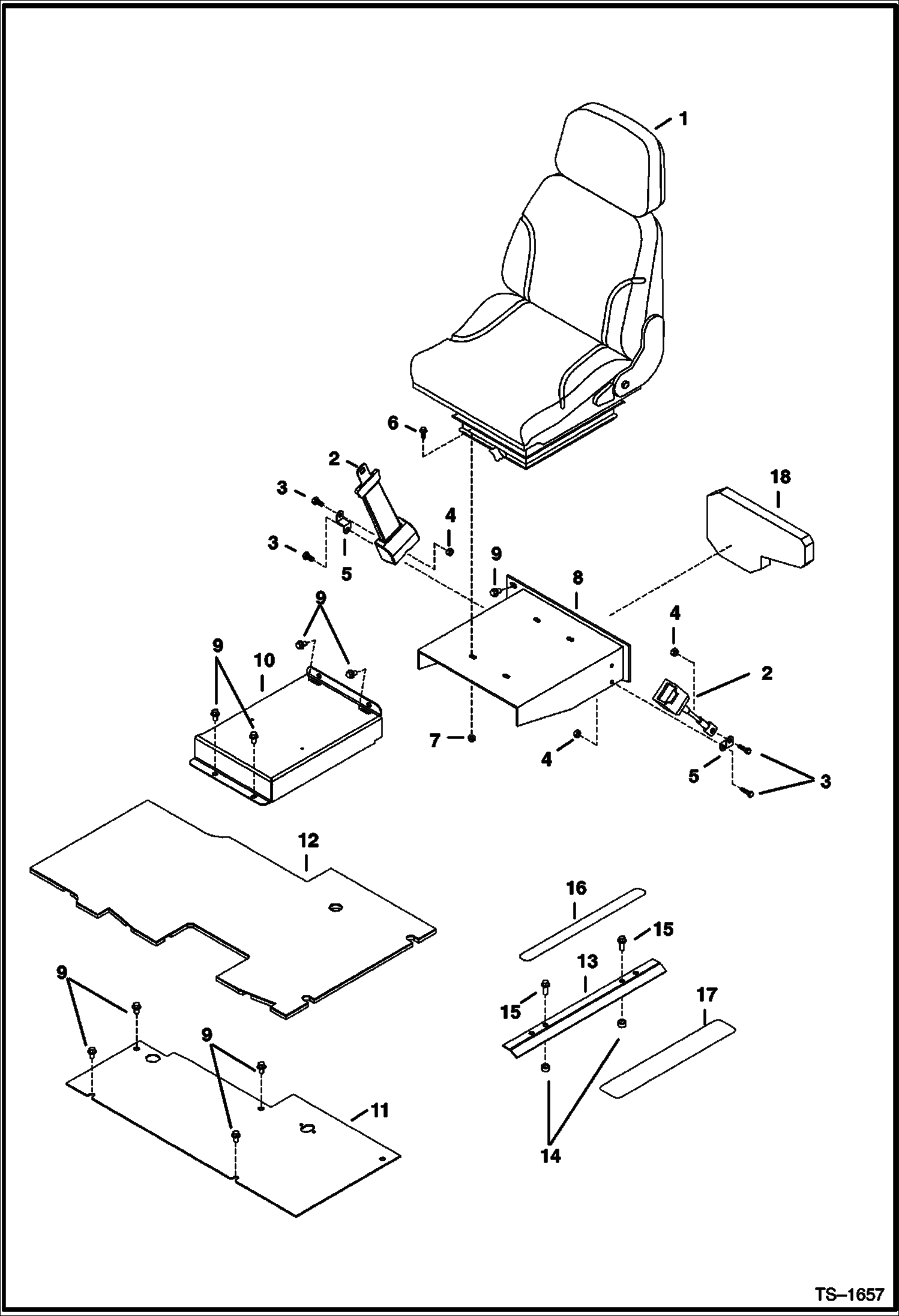

Запчасти Bobcat 328 SEAT, MOUNTING & FLOORPLATES (Suspension Seat W/ Headrest) MAIN FRAME

1

SEAT NLA - vinyl - Order 6685657 & redrill mounting holes as required - Was 6672520 - A

1

SEAT NLA - complete - cloth covered - W/Refs. 2-66 - order 6685657, redrill mounting holes as required - Was 6672519 - A

2

6670865

SEAT BELT

3

1CM1020

BOLT

4

43DM10

NUT

5

6803375

BRACKET

6

3GM820

SCREW Seat to Seat Mount

7

4DM8

NUT

8

6803372

MOUNT Seat

9

26GM10020

BOLT

10

6801025

COVER

11

PLATE NLA - Floor - Order 6805302 - Was 6803364 - A

11

6805302

PLATE Floor

12

6803365

FLOORMAT

13

6802930

ANGLE Floormat Retainer

14

6503451

SPACER

15

26GM10030

BOLT

16

6593245

TREAD Installed on Ref. 13

17

6588953

TREAD Installed on Upperstructure

18

6803463

INSULATION
