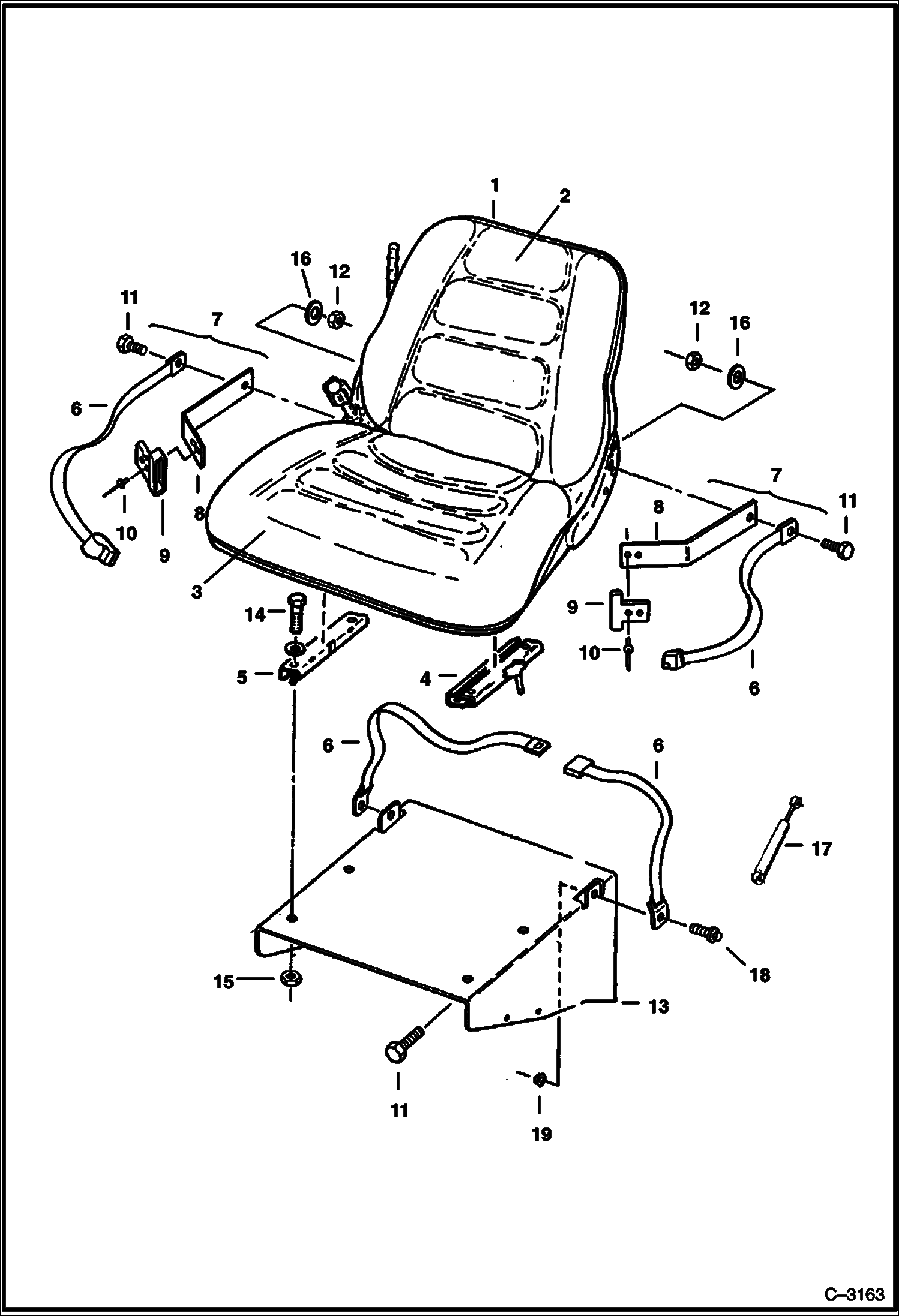

Запчасти Bobcat 328 SEAT & MOUNTING (Standard Seat W/O Headrest) MAIN FRAME

1

6632388

SEAT W/Ref. 2-5 & 17

2

3737081

BACKREST Backrest

3

3737010

CUSHION, SEAT Seat

4

3737000

TRACK W/Adjusting Handle

5

3737001

ADJUSTER W/O Adjusing Handle

6

6564774

SEAT BELT

7

6534812

GUIDE ASSY. Seat Belt - W/Ref. 8-10

8

STRAP NSS

9

GUIDE NLA - Order 6703703 - Was 6565355

10

1662965

RIVET

11

29CM1020

BOLT

12

4DM10

NUT

13

6596351

MOUNT

14

29CM816

SCREW

15

1DM8

NUT

16

6EM100

WASHER

17

6660348

GAS SPRING Seat

18

29CM1030

BOLT

19

51DM10

NUT
