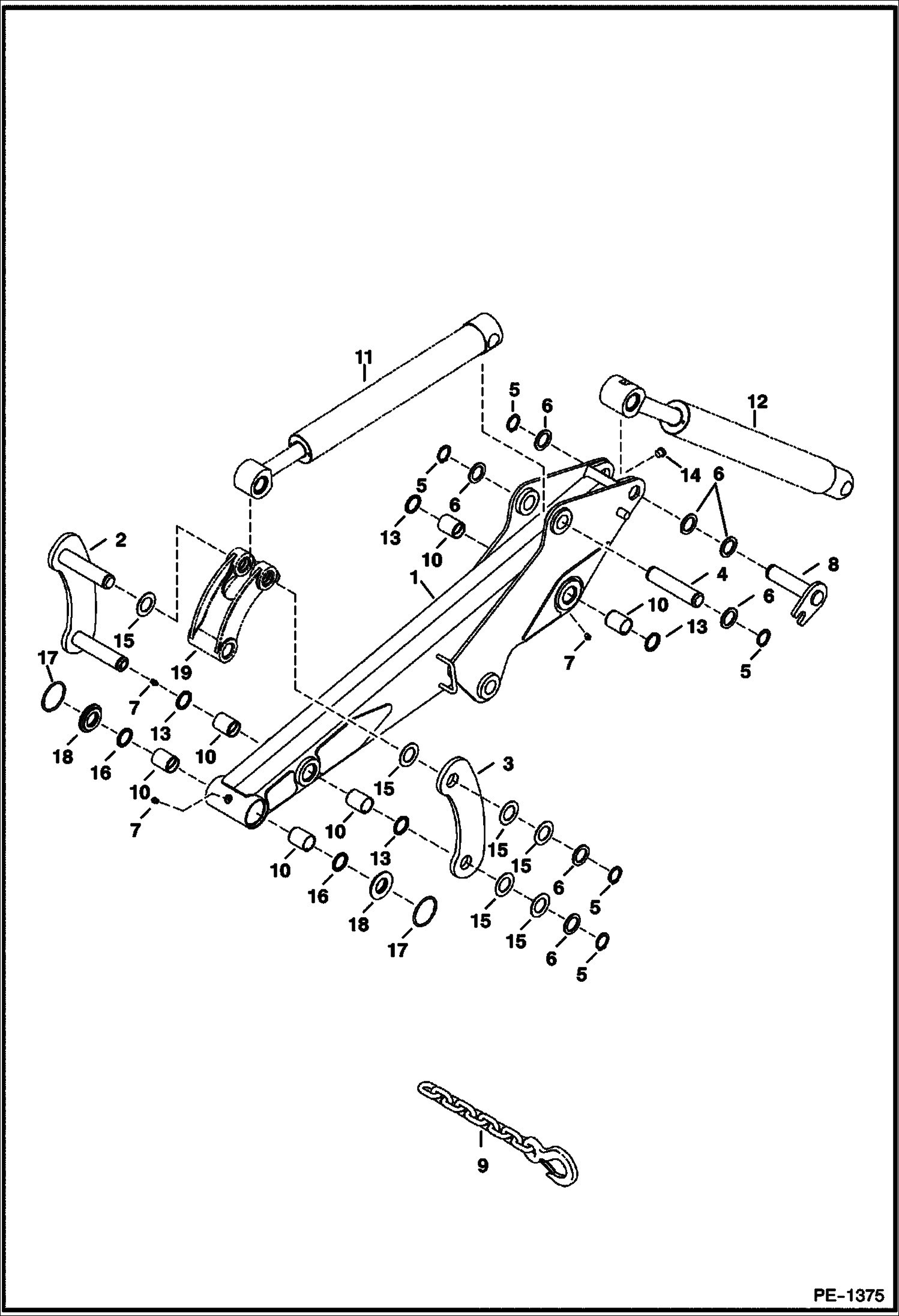

Запчасти Bobcat 328 ARM WORK EQUIPMENT

1

7127622

ARM standard arm - Also Order bushings and seals - 54.25'' (1378 mm) long

1

7127628

ARM, LONG long arm - Also Order bushings and seals - 66'' (1676,5 mm) long

2

7173235

LINK, GUIDE W/A Was 7127600 - A

3

7173234

LINK, GUIDE Was 7129624 - A

4

6595660

PIN

5

6534154

RING

6

6534111

WASHER

7

10H25

FITTING, GREASE 5

8

6595222

PIN arm mounting

9

6665374

CHAIN

10

6803213

BUSHING, PRESS FIT

11

CYLINDER See Illustration BUCKET CYLINDER/ PE3418 bucket

12

CYLINDER See Illustration ARM CYLINDER/ PE3416 arm

13

6652915

SEAL, OIL dust

14

6597572

BUMPER

15

6811636

SPACER Use as required

16

25K40112

O RING 10

17

6811260

O-RING

18

6810627

WASHER thrust - press-in

19

LINK See Illustration BUCKET LINK & X-CHANGE/ PE3572
