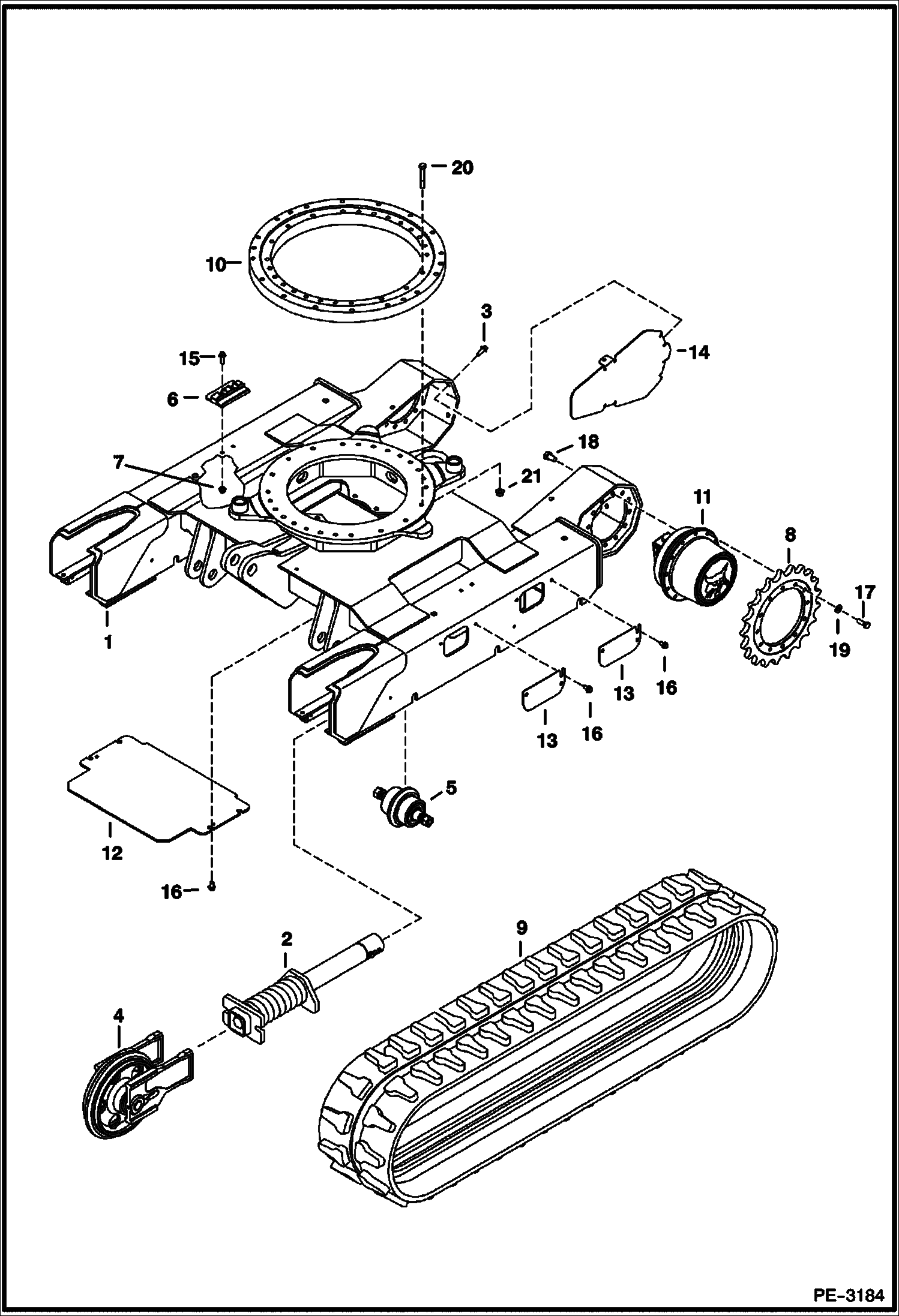

Запчасти Bobcat 328 UNDERCARRIAGE UNDERCARRIAGE

1

7128735

UNDERCARRIAGE 12 hole

2

SPRING ASSY See Illustration TRACK TENSIONER/ PE2668 recoil

3

26GM10020

BOLT

4

IDLER ASSY See Illustration FRONT IDLER/ B22159

5

ROLLER See Illustration TRACK ROLLER/ PE1914

6

6534234

BRACKET track slide

7

51DM10

NUT

8

6813372SUB

SPROCKET, MOTOR DRIVE TRACK, PAINTED 12 hole

9

TRACK, RUBBER See Illustration TRACKS/ NA6195

9

TRACK, STEEL See Illustration TRACKS/ B22907

10

6655124

BEARING swing - 96 teeth on swing gear

11

DRIVE MOTOR See Illustration TRAVEL MOTOR/ MS2230

12

6597346

COVER

13

6596723

COVER

14

6808255

COVER

15

29CM1030

BOLT

16

26GM10020

BOLT

17

55CM1235

BOLT

18

55CM1225

BOLT

19

18EM1224

WASHER

20

7CM1280

BOLT

21

51DM12

NUT
