Запчасти Bobcat 328 HEATER KIT (S/N 232311258 & Below and 232411142 & Below) ACCESSORIES & OPTIONS

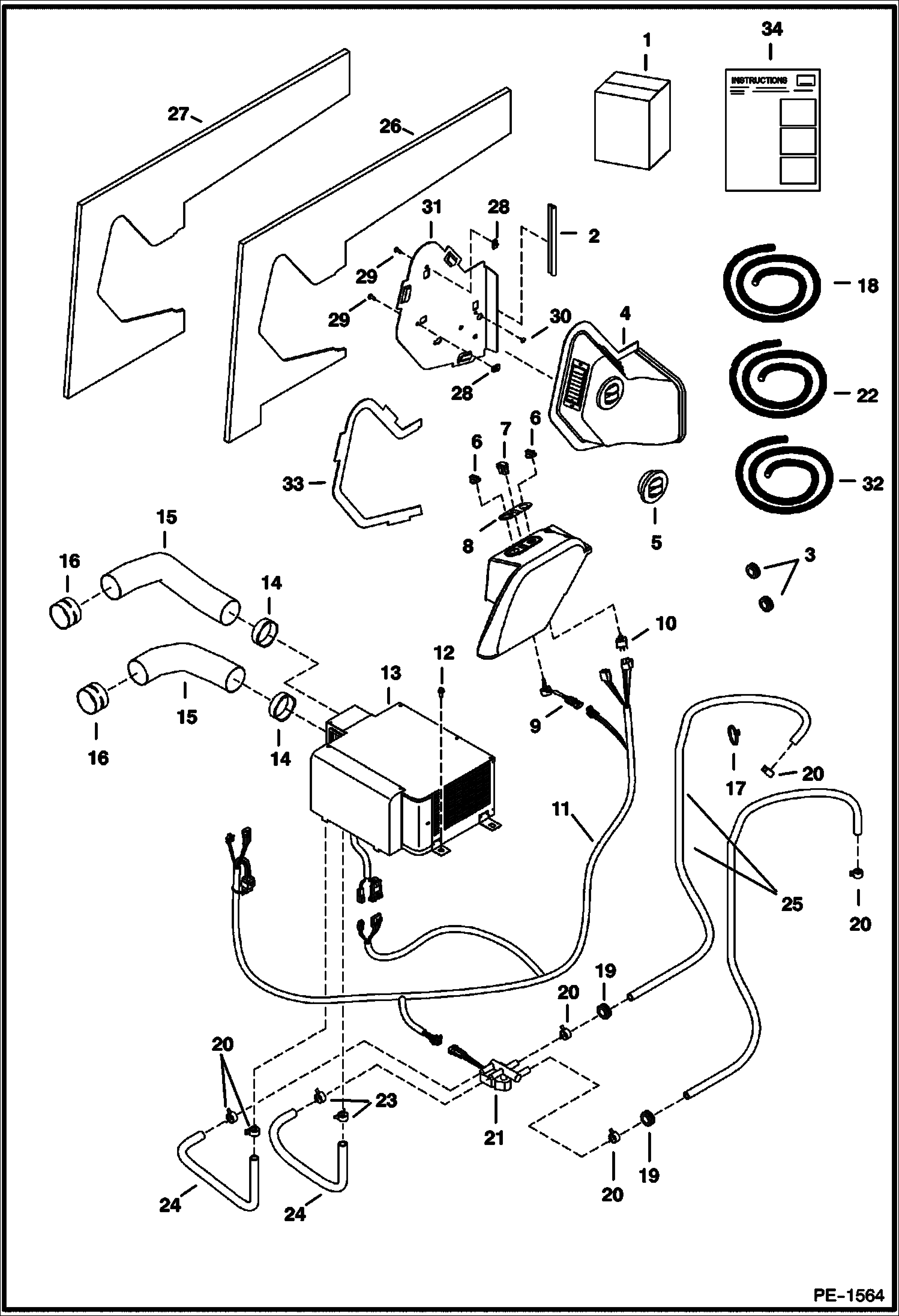

Схема запчастей Bobcat 328 - HEATER KIT (S/N 232311258 & Below and 232411142 & Below) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6809245

KIT

2

SEAL NLA - Order 1' (306mm) of Ref. 32 - Was 6810682 - A

3

1011708

GROMMET

4

DUCT NLA - Order components - Was 6810680 - A

5

6676471

LOUVER

6

6675177

KNOB

7

6675181

PLUG

8

6808433

DECAL heater

9

6675846

POTENTIOMETER

10

6675176

SWITCH blower

11

6808547

HARNESS

11

6673012

HOSE

12

26GM8020

SCREW

13

6677477

HEATER See Illustration HEATER BOX/ PE1217 assy

14

6676490

INSERT

15

6679808

HOSE Was 6676491 - A

16

6676714

ADAPTER adapter

17

6624289

STRAP, TIE

18

6565977

HOSE bulk - sold per foot

19

6810133

GROMMET

20

5HM23

CLAMP

21

6676488

VALVE

22

889269

HOSE BULK/FT bulk - sold per foot

23

5HM20

CLAMP

24

HOSE NLA - Use 26'' of Ref. 22

25

HOSE NLA - use 82'' of Ref. 18

26

6813359

INSULATION

27

6813360

INSULATION

28

6676026

NUT

29

6803202

SCREW

30

6589675

SCREW

31

6813471

PLATE

32

6675732

SEAL bulk - sold per foot

33

HOSE NLA - Use 20'' (533mm) of Ref. 32

34

6901211

INSTRUCTIONS

Выбрано товаров: 35
