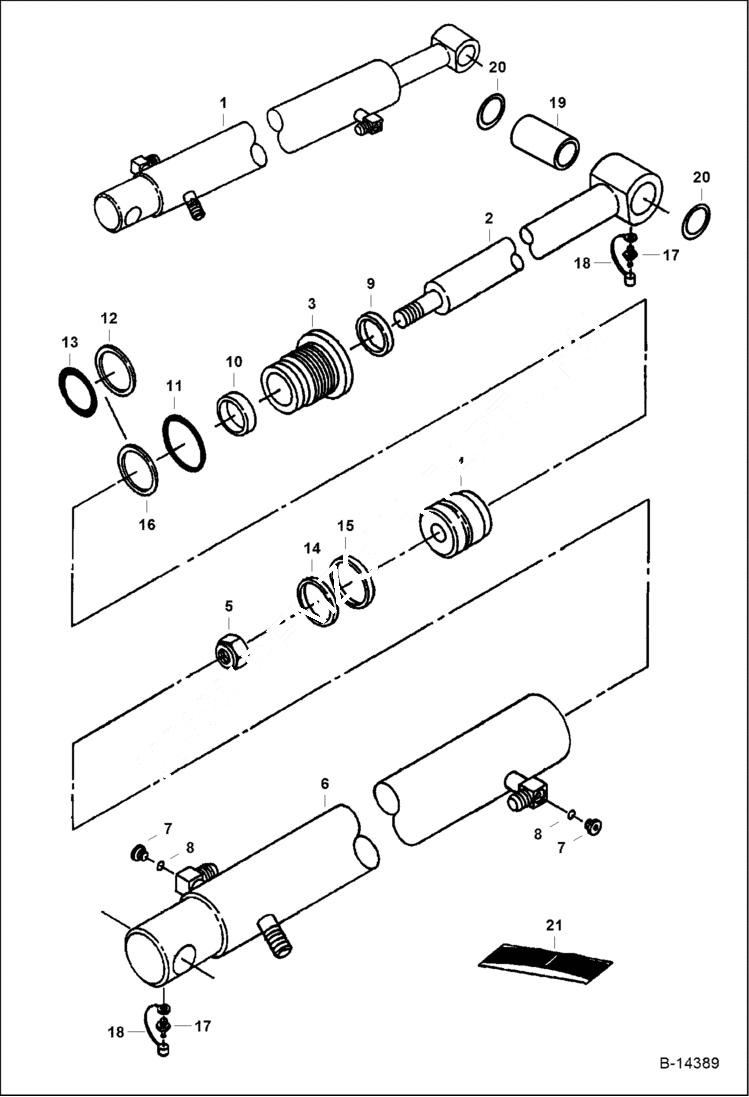

Запчасти Bobcat 328 BUCKET CYLINDER HYDRAULIC SYSTEM

1

6808617

CYLINDER, BUCKET W/Ref. 2-15, Also order Ref. 19 & (2) Ref. 20

2

6808618

ROD Also order Ref. 19 & (2) Ref. 20

3

6806040

HEAD

4

6806375

PISTON

5

6810539

NUT Was 6804592 - A

6

6808628

HOUSING W/Ref. 7 & 8

7

PLUG NLA - W/Ref. 8 - tapered boss face - allen socket head - Was 90KV00005B - B

7

90K5

PLUG flat boss face - allen socket head

7

6812171

PLUG flat boss face - hex head

8

95K6

O'RING tapered boss face

8

75K6

O-RING flat boss face

9

6666543

WIPER, ROD CYL

10

6667325

SEAL

11

82K230

O-RING Was 58K000230B - A

12

25K40208

O RING 10 Was 54K40208 - B

13

73K228

BACK-UP RING

14

25K30202

O RING 10 Was 54K30202 - B

15

1522534

SEAL

16

7008778

SEAL, QUAD

17

10H25

FITTING, GREASE 5

18

6652943

COVER grease fitting

19

6808246

BUSHING

20

6652915

SEAL, OIL Dust

21

7137868

SEAL KIT W/Ref. 5, 9, 10, 11, & 14-16 - Was 6806862 - A
