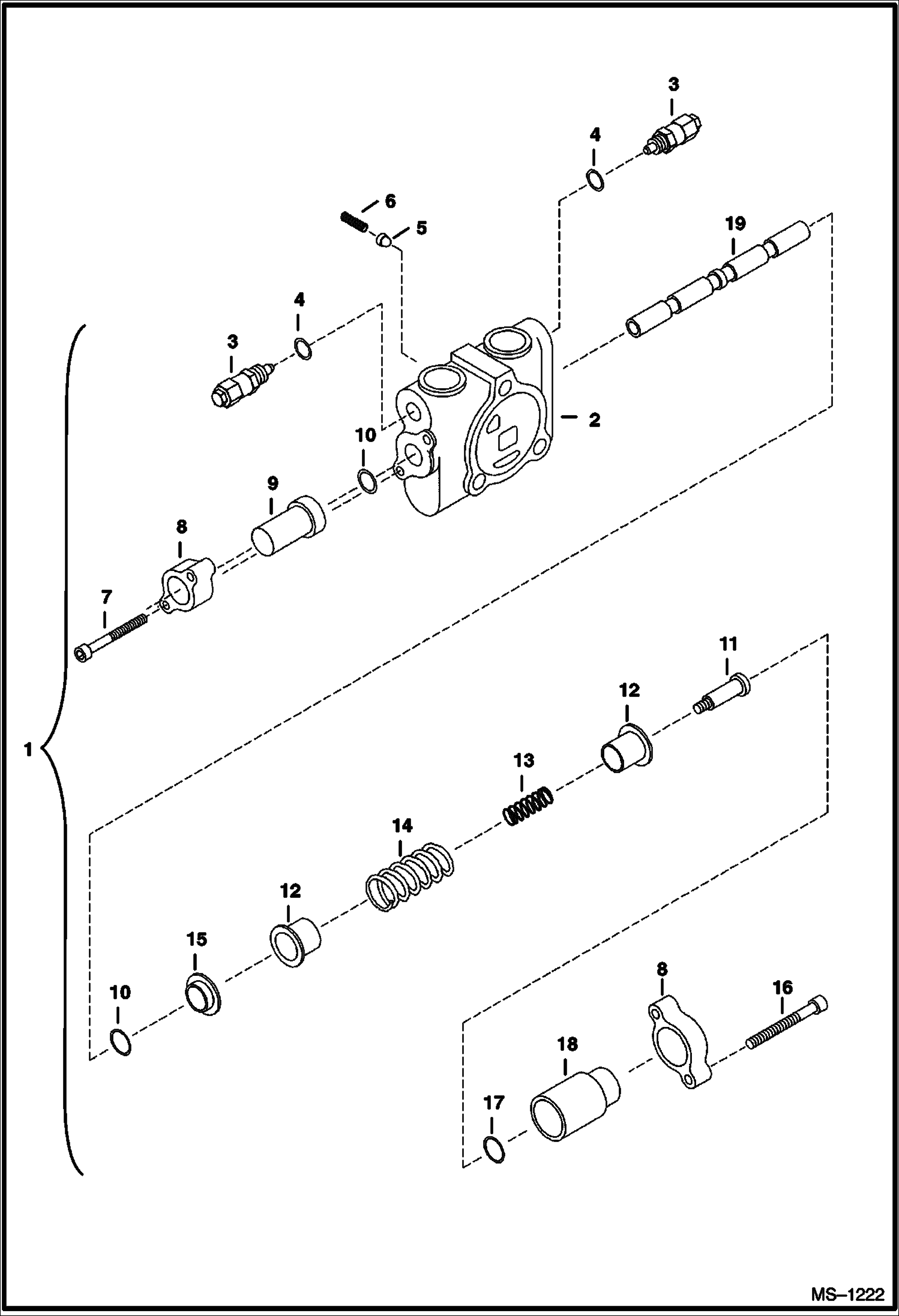

Запчасти Bobcat 328 VALVE SECTION (Arm) (S/N 232312386 & Below, 232412117 & Below, 232412128 & 12129) HYDRAULIC SYSTEM

1

6677439

VALVE section - arm - Ref. 2 - 18

2

BLOCK NSS - order Ref. 1

3

6674259

VALVE relief 2950 PSI

3

6665458

SEAL KIT

4

961240

O-RING

5

6630965

POPPET

6

6630966

SPRING

7

73G424

SCREW Was 11G-424 - B

8

6665442

PLATE

9

6668965

END COVER

10

25K20026

O RING 10 Was 6665432 - A

11

6668967

BOLT

12

6677997

SEAT spool

13

6668968

SPRING

14

6677996

SPRING

15

6665443

RETAINER

16

6665439

SCREW

17

6665435

O-RING

18

6668964

END COVER

19

SPOOL NSS - order Ref. 1
