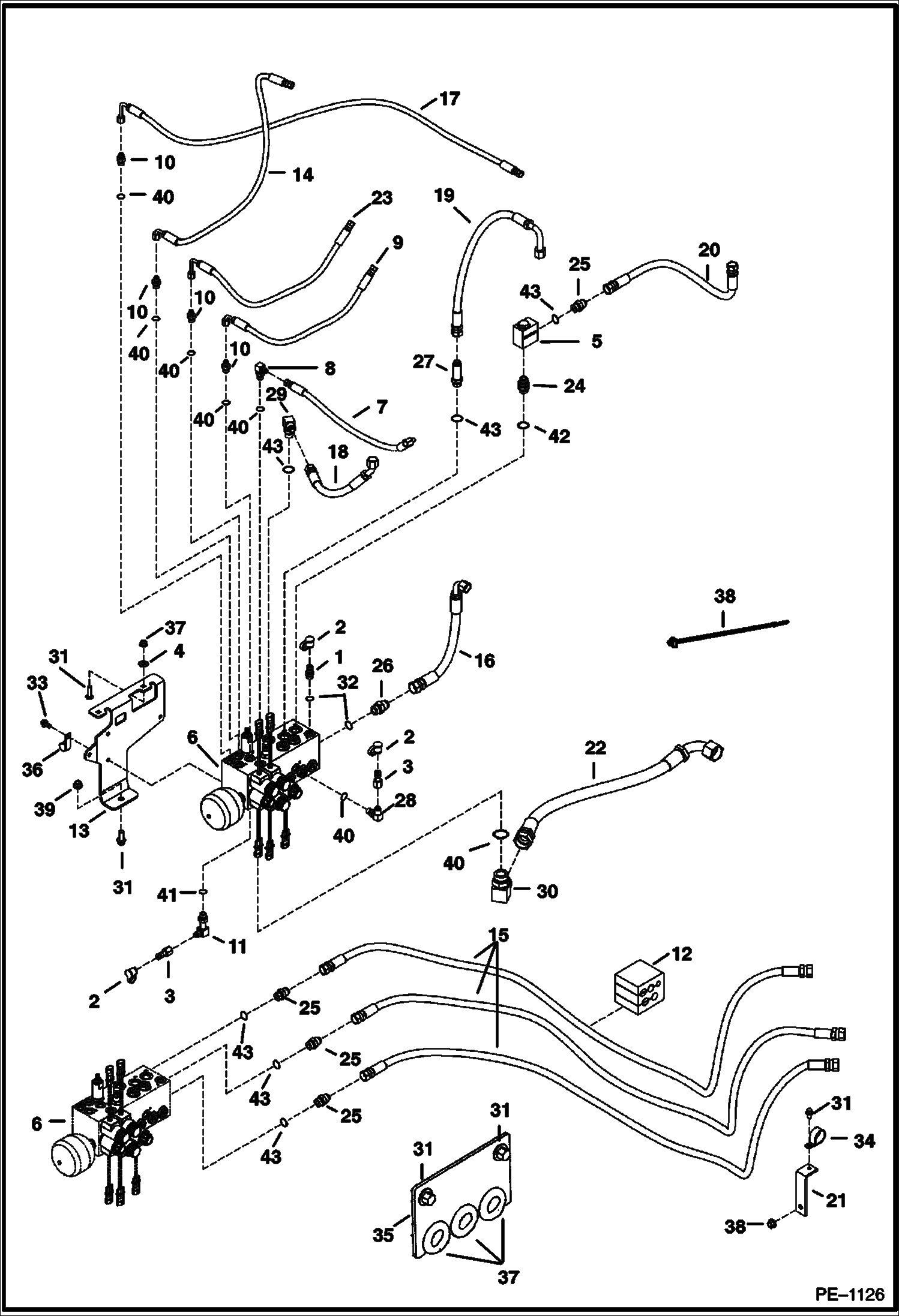

Запчасти Bobcat 328 HYDRAULIC CIRCUITRY (S/N 232312386 & Below and 232412129 & Below) HYDRAULIC SYSTEM

1

6630168

COUPLER diagnostic

2

6630367

CAP dust

3

6661753

PLUG diagnostic

4

6675859

RETAINER

5

6676658

VALVE check

6

6676962

MANIFOLD See Illustration MANIFOLD ASSY/ MS1108 ASSY.

6

6678060

MANIFOLD See Illustration MANIFOLD ASSY/ MS1108 ASSY.

7

6704212

HOSE

8

ELBOW NLA - W/Ref. 40 - tapered boss face - Was 6715652 - A

8

97K4

O'RING flare end

8

17KB0406

FITTING, HYD ELBOW W/Ref. 40 - flat boss face

9

6800677

HOSE

10

CONNECTOR NLA - W/Ref. 40 - tapered boss face - Was 6804359 - A

10

97K4

O'RING flare end

10

15KB0406

FTG HYD S CONNECTOR W/Ref. 40 - flat boss face

11

ELBOW NLA - W/Ref. 41 - Was 6805242 - A

11

97K6

O RING flare end

11

6812815

FITTING

12

6807629

BLOCK foam

12

6807629

BLOCK

13

6808593

MOUNT

14

6809329

HOSE

15

6809330

HOSE

15

6809330

HOSE

15

6810145

HOSE

15

6810145

HOSE

16

6809331

HOSE

17

6809332

HOSE

18

6810494

HOSE Was 6809334 - A

19

6809335

HOSE

20

6809336

HOSE

21

6809405

BRACKET

21

6809405

BRACKET

22

6810219

HOSE Was 6809949 - A

23

6809772

HOSE

24

6812822

CONNECTOR W/Ref. 42 - Was 6809795 - A

25

15KB0808

FITTING, HYD CONNECTOR W/Ref. 43 - Was 15KN00006B - A

25

97K8

O-RING flare end

26

15KB1010

FITTING, HYD CONNECTOR W/Ref. 44 - Was 15KV00007B - A

26

97K10

O-RING 10 flare end

27

16KB0808

FITTING, HYD CONNECTOR W/Ref. 43 - Was 16KN00006B - A

27

97K8

O-RING flare end

28

17KB0606

FITTING W/Ref. 40 - Was 17KV00005B - A

28

97K6

O RING flare end

29

17KB0808

FITTING, HYD ELBOW W/Ref. 43 - Was 17KN00006B - A

29

97K8

O-RING flare end

30

17KB1616

FITTING, HYD ELBOW W/Ref. 40 - Was 17KN00010B - A

30

97K16

O-RING

31

26GM8016

SCREW

32

99K10

O'RING

33

29CM816

SCREW

34

30H58

CLIP

35

6810142

PLATE

35

6810142

PLATE

36

30HJ512

CLAMP

37

6810143

GROMMET

37

6810143

GROMMET

38

6624289

STRAP, TIE

39

43DM10

NUT

40

99K16

O-RING tapered boss face

40

79K6

O RING 10 flat boss face

41

79K6

O RING 10

42

79K8

O RING 10

43

99K8

O-RING
