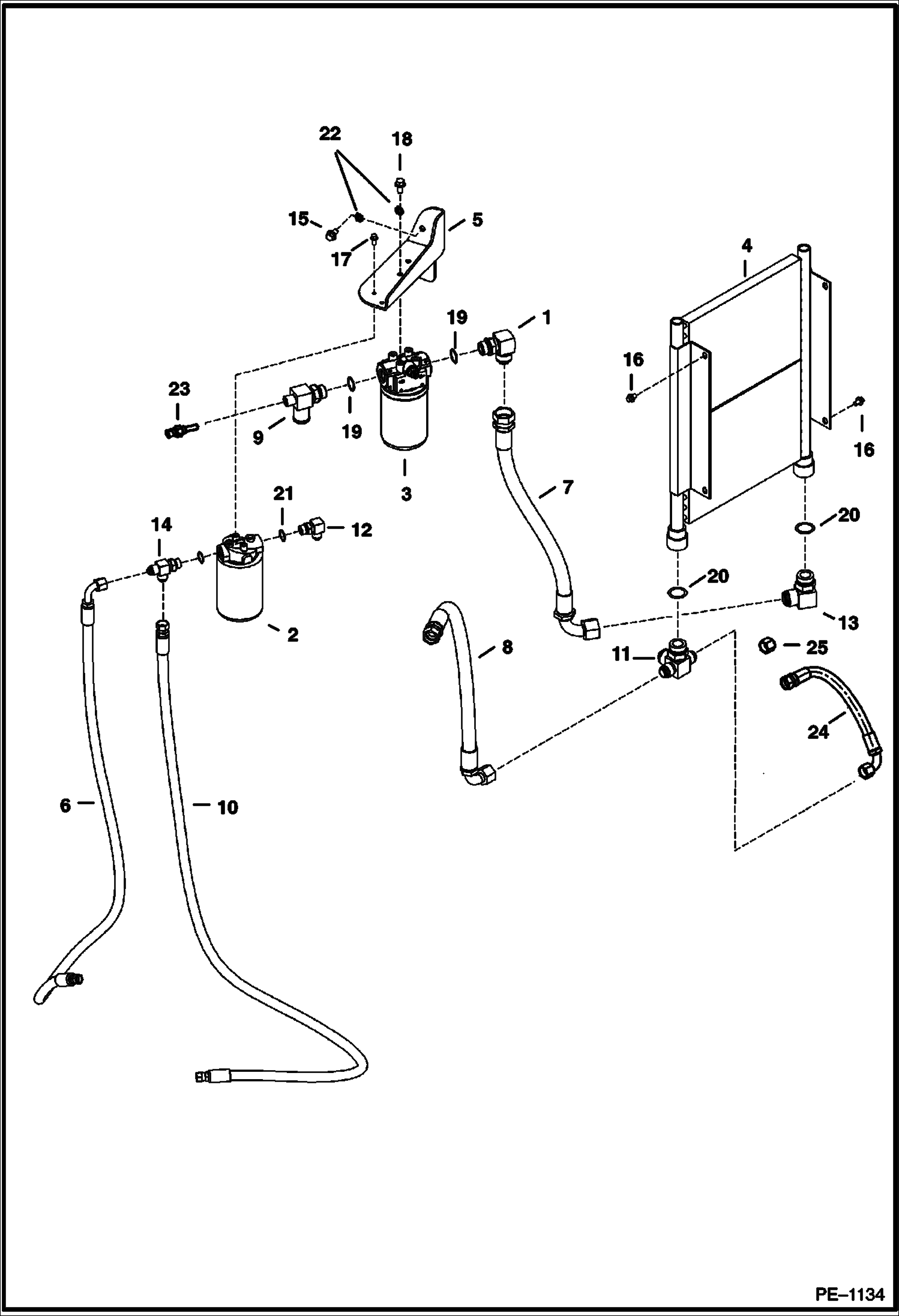

Запчасти Bobcat 328 HYDRAULIC CIRCUITRY (Cooler/Filter) HYDRAULIC SYSTEM

1

ELBOW NLA - W/Ref. 19 - tapered boss face - Was 1300309B - A

1

17KB1612

FITTING, HYD ELBOW W/Ref. 19 - flat boss face

2

6686217

FILTER ASSY assy. - Was 6682415 - A

2

6516722

FILTER element - Was 6660728 - A

3

6661247

FILTER assy.

3

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

3

6660260

SWITCH hydraulic pressure

4

6676168

COOLER oil

5

6808594

MOUNT

6

6809943

HOSE

7

6809944

HOSE

8

6809945

HOSE

8

6811167

HOSE

9

6809113

ELBOW W/Ref. 19

10

6809946

HOSE

11

TEE NLA - W/Ref. 20 - tapered boss face - Was 6809418 - A

11

6812825

FITTING W/Ref. 20 - flat boss face

11

97K12

O'RING flared end

11

97K16

O-RING flare end

12

ELBOW NLA - W/Ref. 21 - tapered boss face - Was 17KN00006B - B

12

17KB0808

FITTING, HYD ELBOW W/Ref. 21 - flat boss face

12

97K8

O-RING flare end

13

ELBOW NLA - W/Ref. 20 - tapered boss face - Was 17KN00010B - B

13

17KB1616

FITTING, HYD ELBOW W/Ref. 20 - flat boss face

13

97K16

O-RING flare end

14

TEE NLA - W/Ref. 21 - tapered boss face - Was 21KN00006B - B

14

21KB0808

FTG HYD STRAIGHT TEE W/Ref. 21 - flat boss face

14

97K8

O-RING flare end

15

26GM10020

BOLT

16

26GM8013

BOLT

17

35C410

BOLT 5

18

35C612

BOLT

19

79K12

O RING 10

20

99K16

O-RING tapered boss face

20

79K16

O RING 10 flat boss face

21

99K8

O-RING tapered boss face

21

79K8

O RING 10 flat boss face

22

6E6

WASHER

23

6718417

SENDER temperature hydraulic

24

6809947

HOSE

25

36K8

CAP U.S. option only
