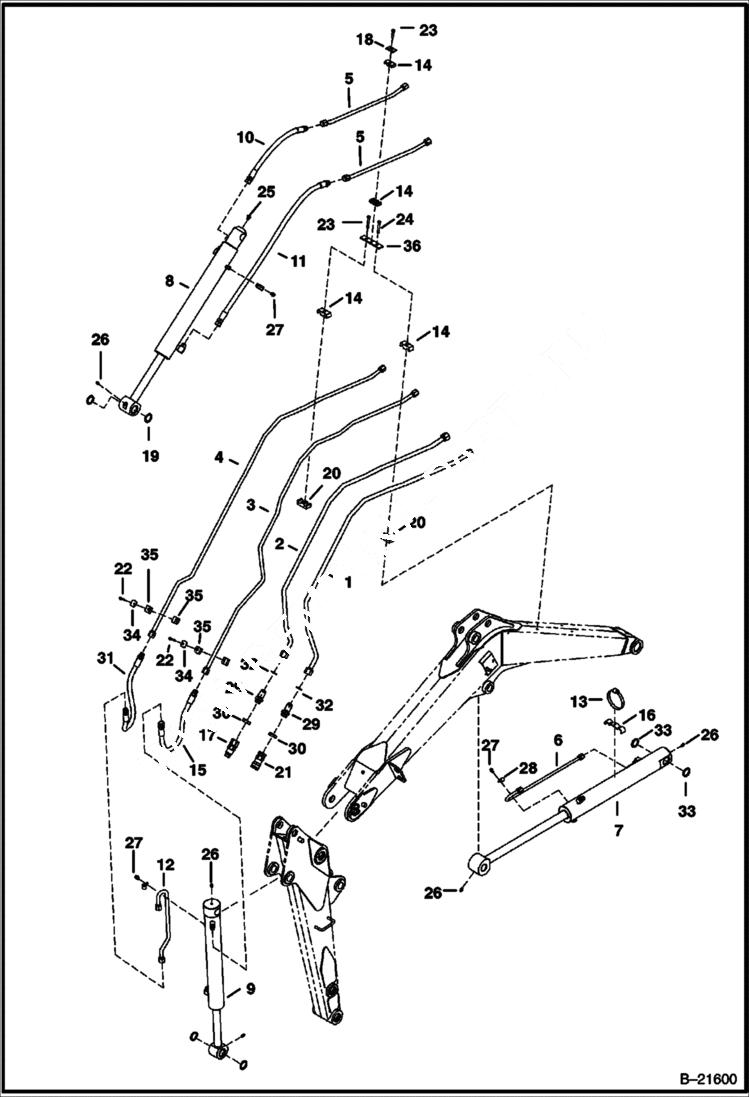

Запчасти Bobcat 328 HYDRAULIC CIRCUITRY (Arm Boom, Bucket & Auxiliary) HYDRAULIC SYSTEM

1

6628644

TUBE See Illustration BOOM/ PE3032 - Use W/aux bracket 6628560 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

1

6812961

TUBE See Illustration BOOM/ PE3032 - Use W/aux bracket 6628560 2.95'' (74.9 mm) x 4.72'' (119.9 mm) - Was 6810667 - A

1

7139953

TUBE See Illustration BOOM/ PE3032 - Use W/aux bracket 6597688 3.86'' (98 mm) x 4.95'' (125.8 mm)

2

6628645

TUBE See Illustration BOOM/ PE3032 - Use W/aux bracket 6628560 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

2

6812962

TUBE See Illustration BOOM/ PE3032 - Use W/aux bracket 6628560 2.95'' (74.9 mm) x 4.72'' (119.9 mm) - Was 6810668 - A

2

7139954

TUBE See Illustration BOOM/ PE3032 - Use W/aux bracket 6597688 3.86'' (98 mm) x 4.95'' (125.8 mm)

3

6596691

TUBE

3

6810590

TUBE

4

6596693

TUBE

4

6810591

TUBE

5

6595942

TUBE

5

6810669

TUBE

6

6596710

TUBE Was 6595943 - A

7

CYLINDER See Illustration BOOM CYLINDER/ B14388 BOOM

8

CYLINDER See Illustration ARM CYLINDER/ B14386 ARM

9

CYLINDER See Illustration BUCKET CYLINDER/ B14389 BUCKET

10

6810228

HOSE Was 6800131 - D

11

6808703

HOSE Was 6800132 - D

12

6808955

TUBE Was 6596710 - A

13

42H56

CLAMP

14

6577697

CLAMP Was 6701893 - B

15

6816626

HOSE For Standard Arm - Was 6628363 - A

15

6803909

HOSE For Long Arm - Was 6808705 - A

16

6806461

CLAMP

17

6674688

COUPLER, FF MALE straight - Was 6667808 - A

17

6679841

SEAL Was 6672026 - A

17

48K16

O RING 10

18

6652521

PLATE

19

6652943

COVER grease fitting

20

6592506

CLAMP Was 6659498 - A

20

6677985

CLAMP

20

6677985

CLAMP

21

6672960

COUPLER, FF FEMALE straight

22

1CM640

SCREW

23

1CM860

BOLT

24

1CM870

BOLT

25

12H15

FITTING, GREASE 5 90 degree

26

10H25

FITTING, GREASE 5

27

29CM812

BOLT

28

30H30

CLAMP

29

ADAPTER NLA - Bulkhead - W/Ref. 30 - tapered boss - Was 6716090 - A

29

6812823

ADAPTER Bulkhead - W/Ref. 30 - flat boss

29

97K12

O'RING flared end

30

99K12

O RING Tapered boss face

30

79K12

O RING 10 Flat boss face

31

6539418

HOSE for standard arm - Was 6628675 - A

31

6809573

HOSE for long arm

32

86F8

NUT 5 Use W/flush face couplers

33

6652915

SEAL, OIL dust

34

6665102

COVER

35

6666920

CLAMP, HALF

36

6592507

PLATE

36

6592507

PLATE

36

6810670

COVER

36

6810670

COVER
