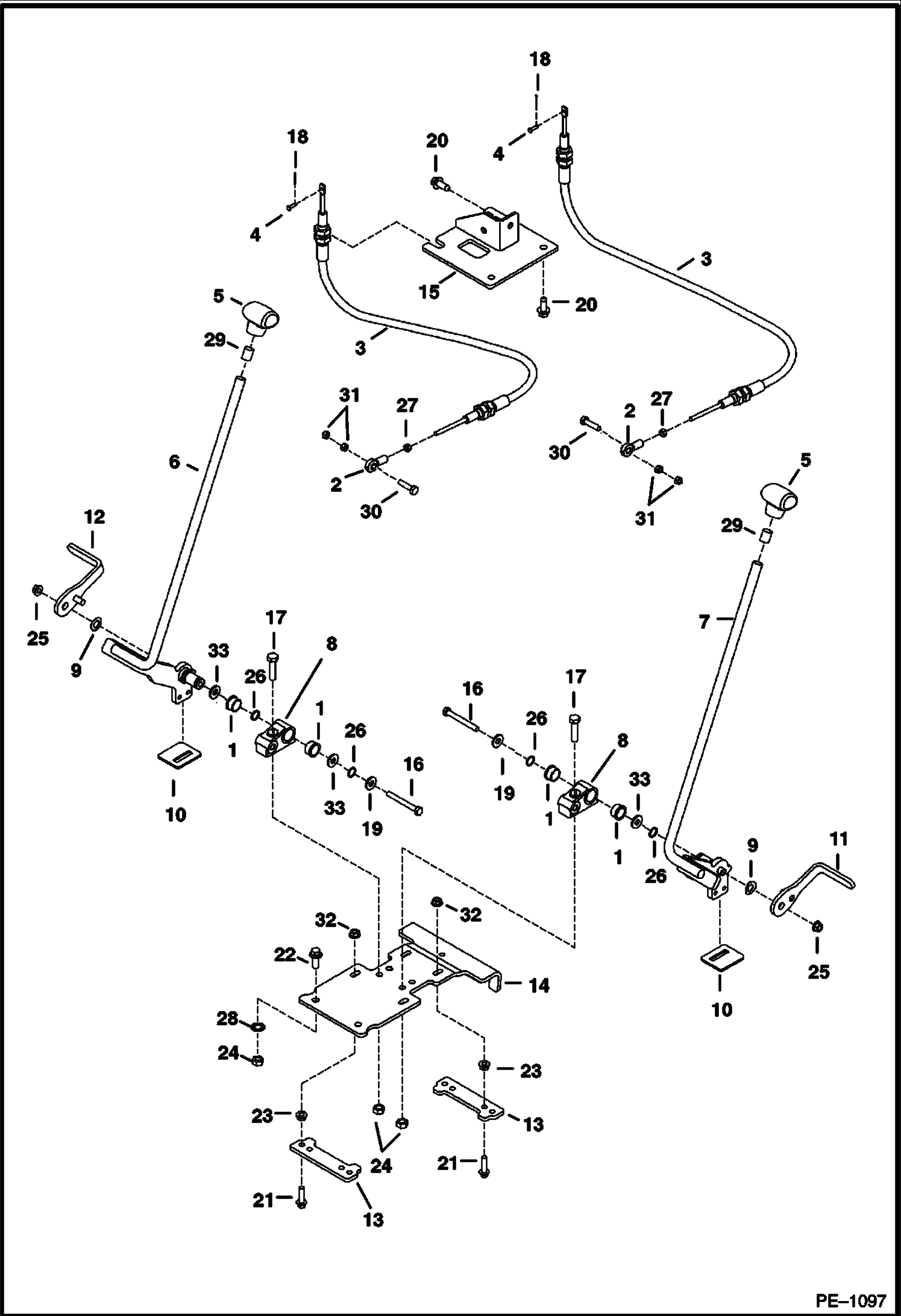

Запчасти Bobcat 328 CONTROLS (Travel) (S/N 232312833 & Below and 232412645 & Below) CONTROLS

1

6536801

BUSHING

2

6631036

JOINT

3

6669603

CABLE

4

6801068

PIN

5

6802972

KNOB travel lever

6

PEDAL NLA - R.H. - Order 6810533 pedal R.H., 6810511 pedal, 6677904 bearing, 6536803 washer, 6810303 spacer, & 6701174 washer - Was 6806927 - A

7

PEDAL NLA - L.H. - Order 6810532 pedal L.H., 6810508 pedal L.H., 6677908 bearing, 6536803 washer, 6810303 spacer, & 6701174 washer - Was 6806929 - A

8

BEARING NLA - R.H. - Order 6810533 pedal R.H., 6810511 pedal, 6677904 bearing, 6536803 washer, 6810303 spacer, & 6701174 washer - Was 6807119 - A

8

BEARING NLA - L.H. - Order 6810532 pedal L.H., 6810508 pedal L.H., 6677908 bearing, 6536803 washer, 6810303 spacer, & 6701174 washer - Was 6807119 - A

9

6808157

WASHER

10

6812070

SEAL Was 6808430 - A

11

PEDAL NLA - L.H. - Order 6810532 pedal L.H., 6810508 pedal L.H., 6677908 bearing, 6536803 washer, 6810303 spacer, & 6701174 washer - Was 6808974 - A

12

PEDAL NLA - R.H. - Order 6810533 pedal R.H., 6810511 pedal, 6677904 bearing, 6536803 washer, 6810303 spacer, & 6701174 washer - Was 6808975

13

6809084

STOP

14

6809179

MOUNT

15

6809366

MOUNT

15

6810423

MOUNT

16

1CM870

BOLT

17

1CM1040

BOLT

18

1F212

PIN cotter

19

25E16

WSHR

20

26GM10020

BOLT

21

29CM830

CAPSCREW

22

29CM1025

BOLT

23

43DM8

NUT

24

4DM10

NUT

25

47DM8

NUT Was 51DM00008B - B

26

58K015

O-RING 10

27

62D4

NUT

28

6E8

WASHER

29

6672494

RING

30

1CM630

BOLT

31

1DM6

NUT Was 4DM6 - A

32

4DM8

NUT

33

6536802

WASHER
