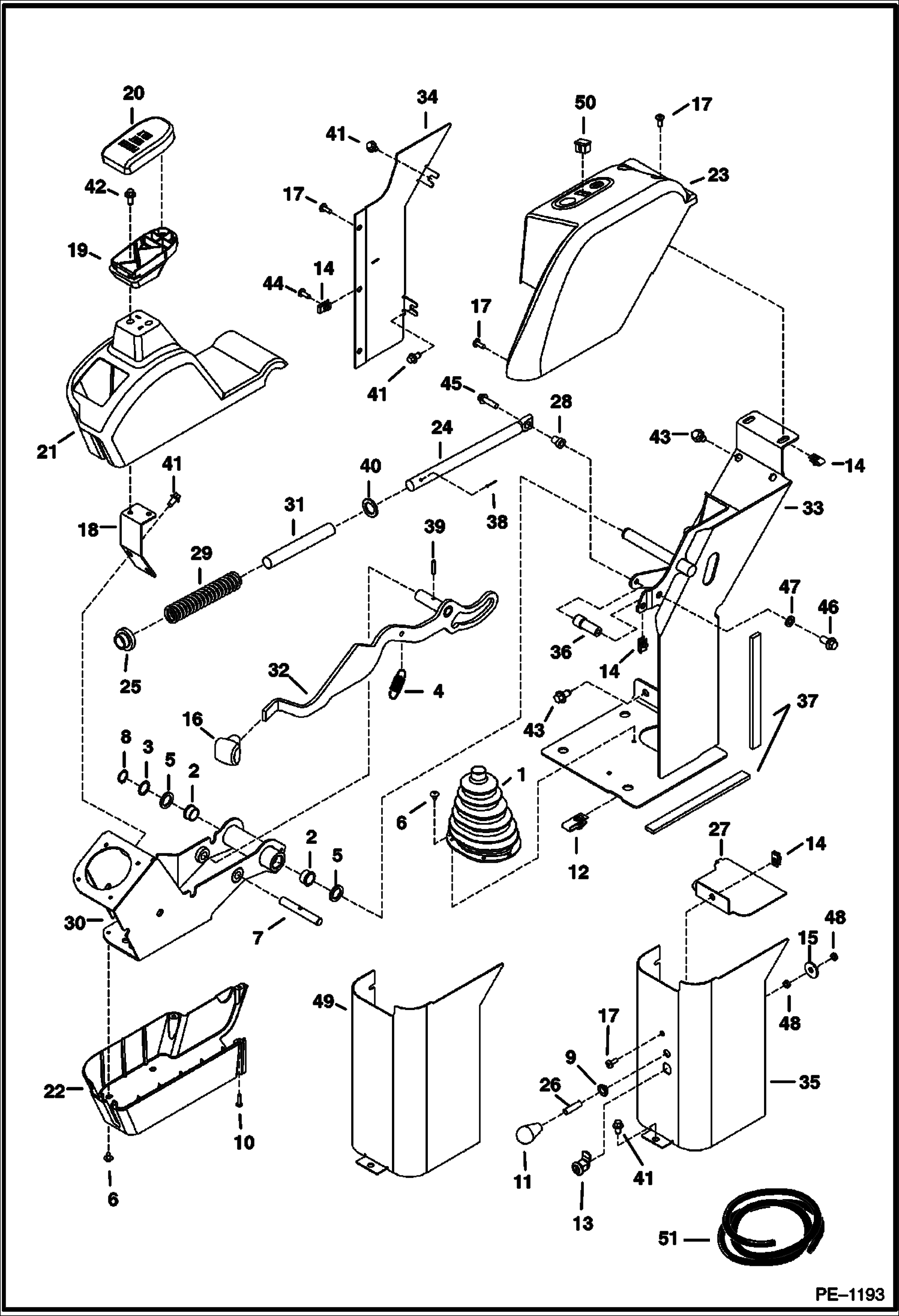

Запчасти Bobcat 328 L.H. CONSOLE CONTROLS

1

6532127

BOOT

1

6532127

BOOT

1

6810671

BOOT

1

6810671

BOOT

2

6536801

BUSHING

3

6536802

WASHER

4

6563128

SPRING

5

6587481

WASHER

6

6589675

SCREW

6

6589675

SCREW

6

6589675

SCREW

6

6589675

SCREW

7

6597977

PIN

8

6651530

SNAP RING

9

6660975

GROMMET

10

6669224

BOLT

11

6672326

COVER handle

11

6672326

COVER

12

6675722

NUT

13

6675723

LOCK W/nuts, W/O keys

13

6675723

LOCK W/nuts, W/O keys

14

6676026

NUT clip

15

6701174

WASHER flat

16

6803199

HANDLE

17

6803202

SCREW Was 6803203 - D

18

6807362

SUPPORT console

19

6807982

MOUNT

20

6807983

COVER armrest

21

7177242

COVER, CONSOLE LH - upper - Was 6807984 - A

22

6807985

COVER LH - lower

23

6807989

CONSOLE rear - L.H.

24

SHAFT NLA - order 6810455 & Ref. 25, 31 & 40

24

6810455

SHAFT

25

BUSHING NLA - order 6810456 & Ref. 24, 31 & 40

25

6810456

BUSHING

26

6808419

SPACER tube

26

6808419

SPACER

27

6808435

SHIELD angle

27

6808435

SHIELD

28

6808749

BUSHING

29

6808840

SPRING

30

6809293

CONSOLE

31

6809325

SPACER tube - order 6810454 & Ref. 24, 31 & 40

31

6810454

TUBE

32

6809680

HANDLE

33

6809694

CONSOLE L.H.

34

6809698

COVER

35

6809699

COVER lower - L.H.

36

6809906

BEARING

37

INSULATION NLA - use 9 in. of Ref. 51 - Was 6809702 - A

38

13JM20025

COTTERPIN cotter

39

14J1816

PIN ROLL straight

40

15EM200

WASHERS

41

26GM8016

SCREW

41

15EM160

WASHERS

42

26GM8020

SCREW

43

26GM10020

BOLT

44

29CM616

BOLT

45

29CM835

BOLT

46

29CM1020

BOLT

47

6EM100

WASHER

48

7D4

NUT

49

6810922

COVER lower - L.H.

50

6675181

PLUG

51

7001454

SEAL, BULK/FT bulk - sold per foot - Was 6803188 - A
