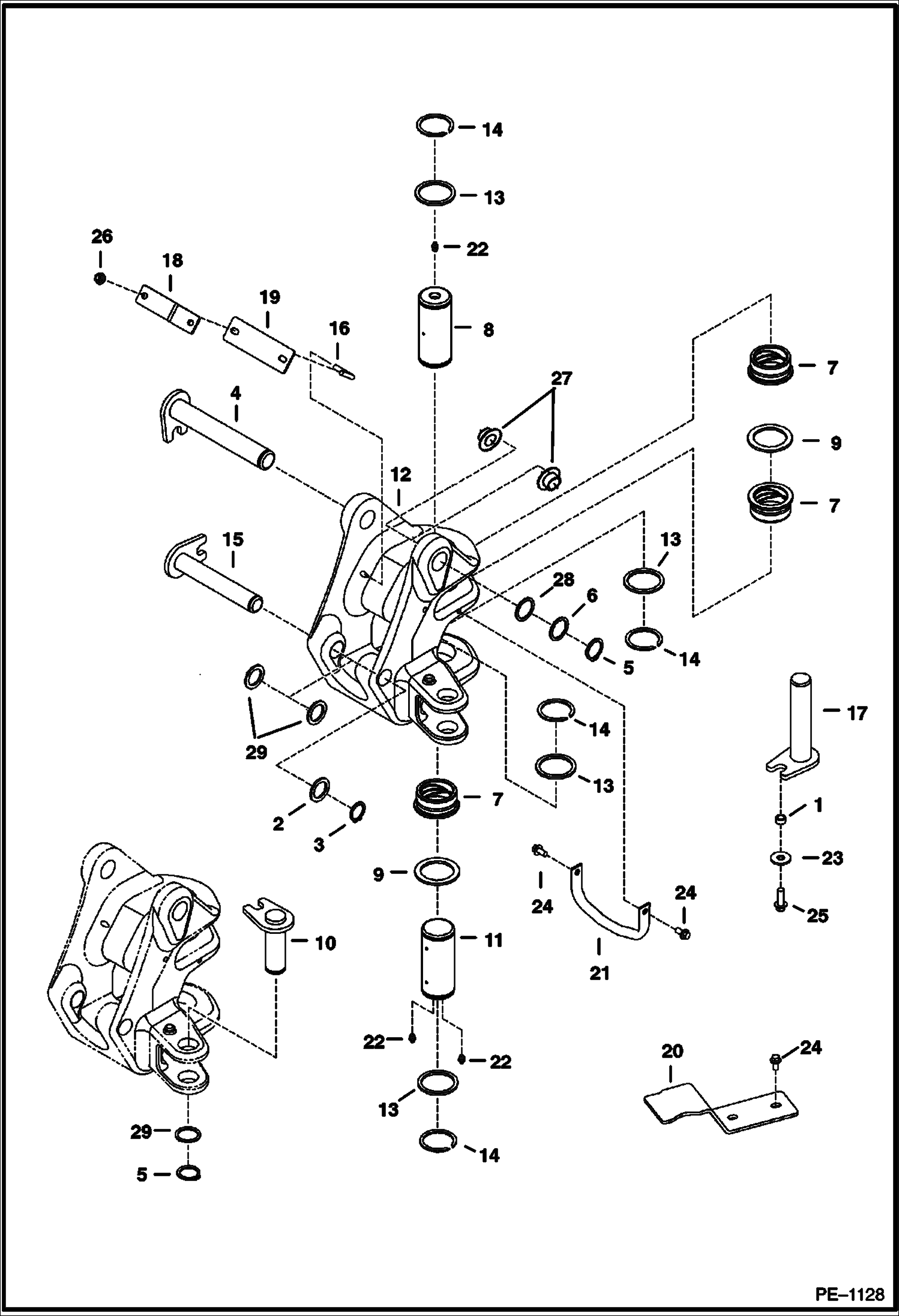

Запчасти Bobcat 328 SWING FRAME WORK EQUIPMENT

1

6503451

SPACER

2

6534111

WASHER

3

6534154

RING

4

6589323

PIN

5

6665618

RING

6

6666549

WASHER

7

6807956

BUSHING

8

PIN NLA - Order 7135322 - Was 6807961 - A

8

7135322

PIN Do not use Ref. 13 on bottom side with this pin.

9

6807962

WASHER

10

6807964

PIN

11

PIN NLA - Order 7135321 - Was 6807965 - A

11

7135321

PIN Do not use Ref. 13 on bottom side with this pin.

12

FRAME NLA - order 6810691 & Ref. 27 (2) - Was 6807967 - A

12

6810691

FRAME

12

6810691

FRAME

13

6808174

WASHER

14

6808175

RING

15

6808203

PIN

16

6808211

BOLT angle

17

6808267

PIN

18

6808600

BRACKET

19

6808751

SHIELD

20

6808984

BRACKET

21

6809796

SUPPORT tube - Was 6809252 - A

22

10H25

FITTING, GREASE 5

23

17EM120

WASHER

24

29CM1020

BOLT

24

26GM10020

BOLT

25

29CM1235

BOLT

26

51DM10

NUT Was 43DM00010B - A

27

6810581

BUSHING

27

6810581

BUSHING

28

6810704

SNAP RING

29

6811636

SPACER Use as required
