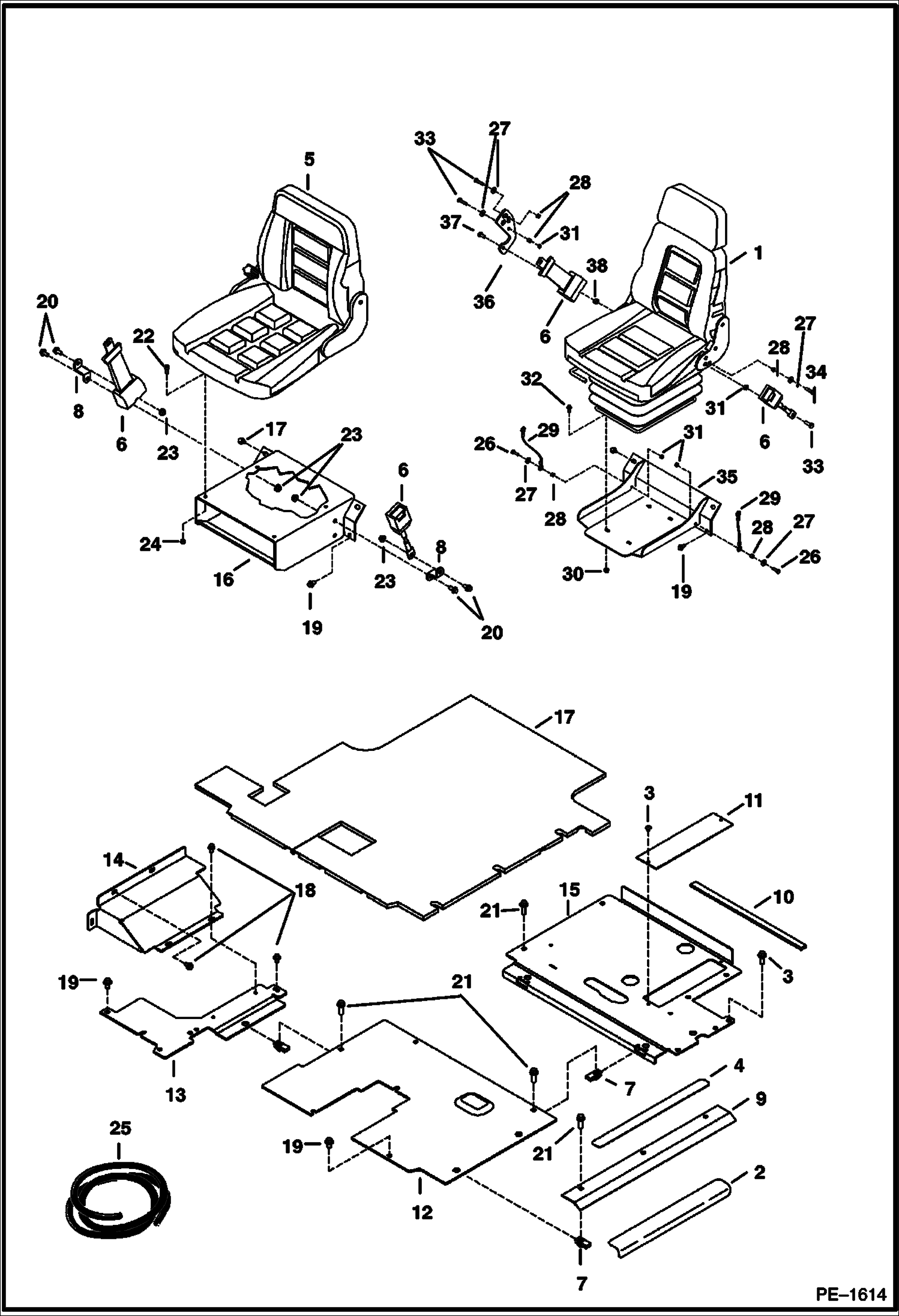

Запчасти Bobcat 328 OPERATORS AREA & SEAT MAIN FRAME

1

SEAT See Illustration SEAT/ E2458 NLA - vinyl - Order 6685657 & redrill mounting holes as required - Was 6672520 - A

2

6588953

TREAD

3

6589675

SCREW

3

6589675

SCREW

4

6593245

TREAD

5

6632388

SEAT See Illustration SEAT/ B5562 Also Order 7100355 mount (1)

6

6670865

SEAT BELT assy.

7

6675722

NUT

8

6803375

BRACKET

9

6808077

ANGLE

10

SEAL NLA - use 12'' (305mm) of Ref. 25

11

6808416

COVER

11

6808416

COVER

12

6815988

PLATE floor - Was 6808933 - A

13

6808934

PLATE floor

14

6808937

COVER swing motor

15

6809693

PLATE floor - Was 6808968 - A

15

6809916

PLATE floor

15

6809916

PLATE

16

7100355

MOUNT seat - Was 6809007 - A

17

6809136

MAT floor, canopy

18

26GM8016

SCREW

19

26GM10020

BOLT

20

29CM1020

BOLT

21

29CM1045

BOLT Was 29CM01030B - B

22

3GM820

SCREW

23

43DM10

NUT

24

4DM8

NUT

25

6646705

SEAL bulk - sold per foot

26

1CM825

BOLT 328D only

27

25E16

WSHR 328D only

28

6802539

SPACER 328D only

29

6589689

TETHERS 328D only

30

51DM8

NUT 328D only

31

53DM8

NUT 328D only

32

29CM820

SCREW 328D only

33

1CM1030

BOLT 328D only

34

1CM835

BOLT 328D only

35

6809224

MOUNT 328D only

36

6803068

BRACKET 328D only

37

1CM1020

BOLT 328D only

38

53DM10

NUT 328D only
