Запчасти Bobcat 328 ISO/STD CONVERSION KIT (S/N 514013001-514014899) ACCESSORIES & OPTIONS

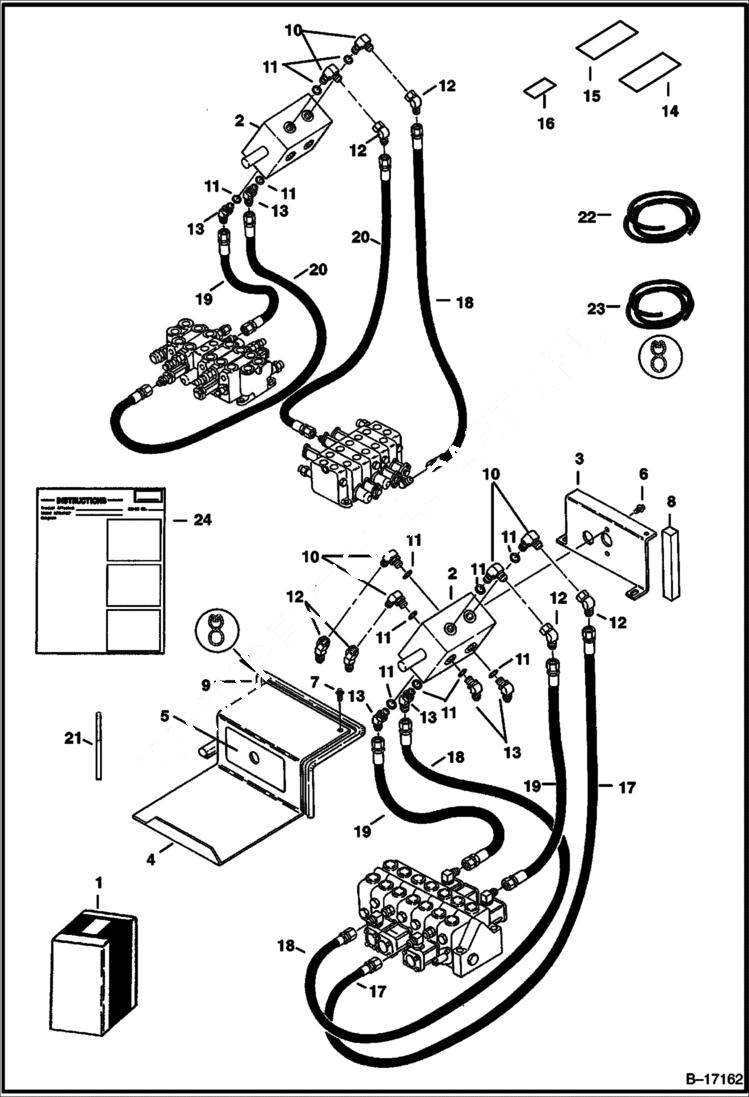

Схема запчастей Bobcat 328 - ISO/STD CONVERSION KIT (S/N 514013001-514014899) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6801070

KIT ISO/STD - Conversion - W/Refs. 2-23

2

6805257

VALVE ASSY See Illustration SELECTOR VALVE ASSY/ TS1353 Selector - Was 6597401 - A

3

6801055

BRACKET

4

6800906

COVER

5

6800907

DECAL

6

29CM812

BOLT

7

26GM8016

SCREW

8

FOAM NLA - 6'' (152,4 mm) - Order Ref. 22

9

SEAL NLA - 24'' (609,6 mm) - Order Ref. 23

10

17K3

ELBOW W/Ref. 11

11

79K4

O RING 10

12

12K3

ADAPTER

13

18K3

ELBOW W/Ref. 11

14

6800908

DECAL LH

15

6800909

DECAL RH

16

6537634

DECAL

17

6530901

HOSE

18

6597811

HOSE

19

6706228

HOSE

20

6800669

HOSE

21

6597403

HANDLE Straight

22

6554274

INSULATION Bulk - Sold Per Foot

23

6513152

SEAL bulk - sold per foot

24

6724637

INSTRUCTIONS

Выбрано товаров: 24
