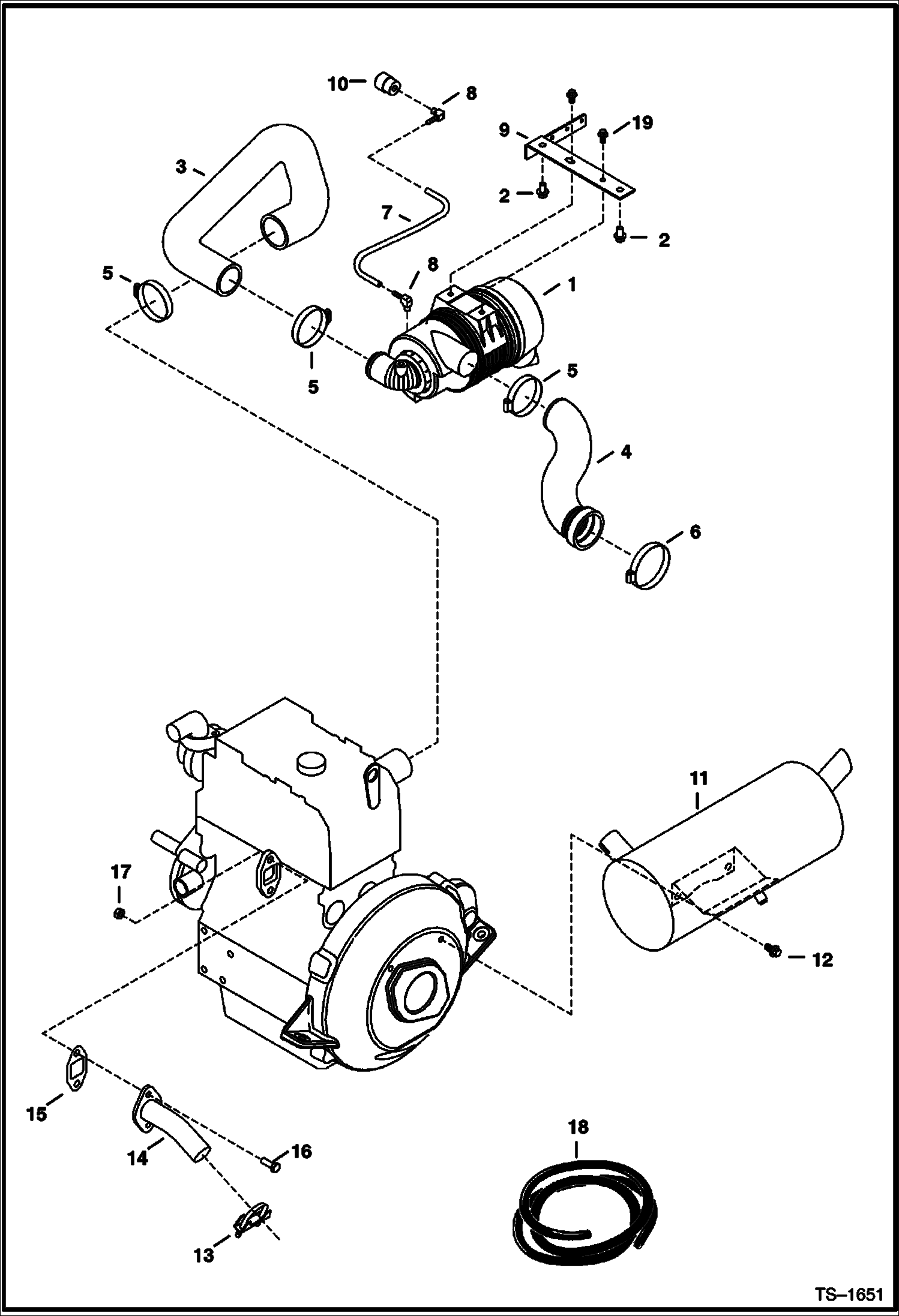

Запчасти Bobcat 328 AIR CLEANER & MUFFLER MOUNTING (S/N 514014900 & Above & 516611001 & Above) POWER UNIT

1

6670851

AIR CLEANER See Illustration AIR CLEANER/ C3490 ASSY.,

2

26GM10020

BOLT

3

6803465

HOSE

4

6803466

HOSE

5

42H40

HOSECLAM5

6

42H48

CLAMP 5

7

HOSE NLA - 11'' (280mm) long - Order Ref. 18

8

6515156

CONNECTOR

9

6628487

BRACKET

10

6515007

GAUGE Air filter condition

11

6673713

MUFFLER Factory Installed - Was 6666648 - A

11

6673908

MUFFLER, PURIFIER Field Installed Only - Was 6667416 - A

12

29CM1020

BOLT

13

710706

CLAMP Assy.

14

6666649

TUBE Exhaust

15

3974507

GASKET

16

1CM1030

BOLT

17

4DM10

NUT

18

6557720

HOSE Bulk - sold per foot

19

29CM816

SCREW
