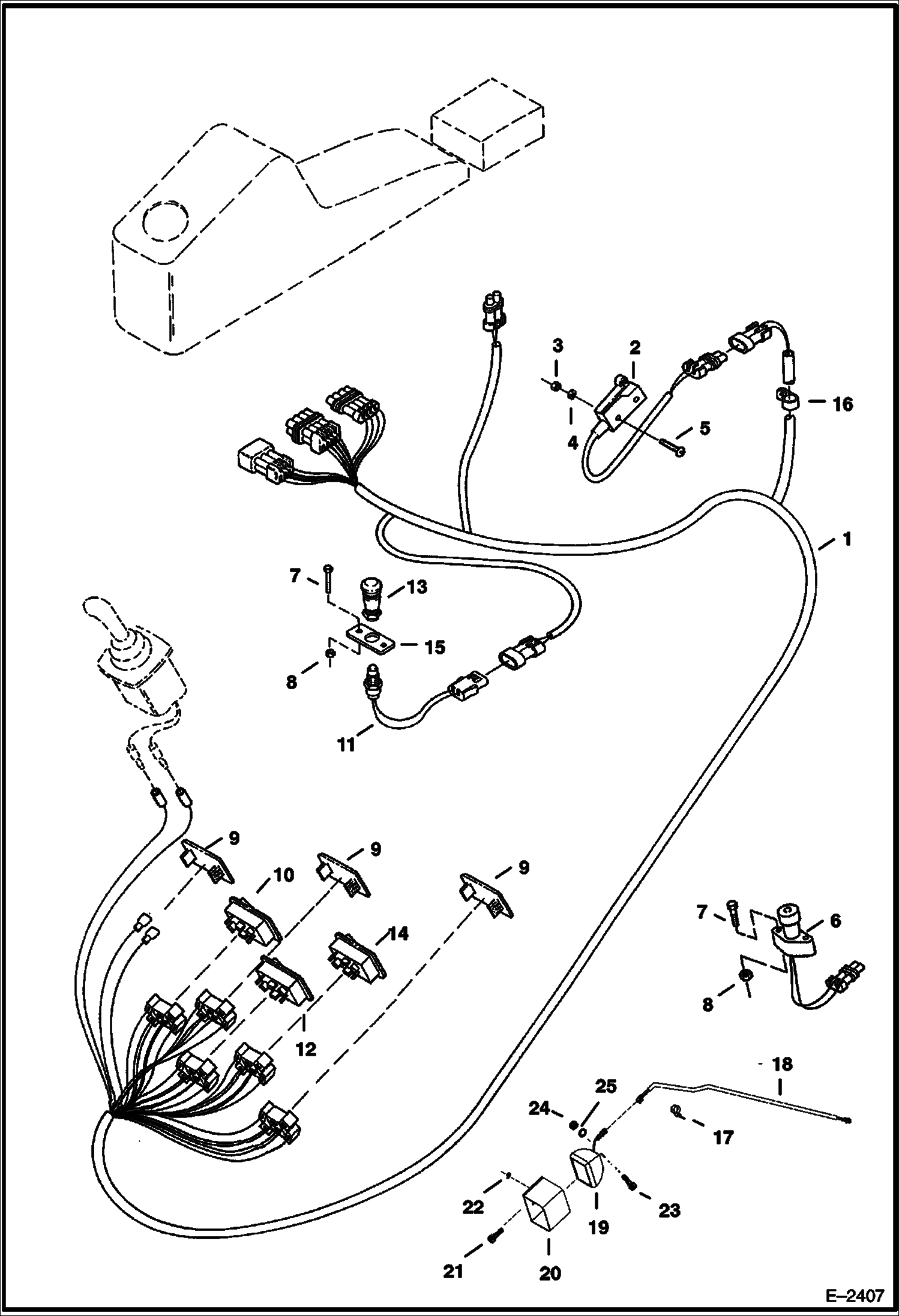

Запчасти Bobcat 328 ELECTRICAL SYSTEM (Left Hand Console) (S/N 514014900 & Above and 516611001 & Above) ELECTRICAL SYSTEM

1

6802683

HARNESS L.H. Console

2

6661150

SWITCH, ROLLER MICRO Micro - Console Lock-out

3

12D6

NUT 10

4

12E6

WASHER

5

85G616

SCREW 10

6

NLA - Two Speed - Order Refs. 11, 13 & 15 - Was 6667705 - A

7

1CM625

BOLT

8

1DM6

NUT

9

6665314

PLUG Switch Hole

10

6665315

SWITCH Light

11

6673973

SWITCH Two speed

12

6671113

SWITCH if equipped - wiper/washer

13

6673974

ACTUATOR Two speed

14

6668816

SWITCH if equipped - beacon light

15

6804965

BRACKET For adapting old style switch to new style two speed switch - not factory installed

16

30H50

CLIP Was 31H000042B - B

17

6610510

TIE Was 1715312 - A

18

7135896

HARNESS Was 6808415 - A

19

6675938

LIGHT

19

6667938

BEARING

19

17C532

BOLT 5

20

6808258

HOUSING

21

29CM825

BOLT

22

6675859

RETAINER

23

17C532

BOLT 5

24

61D8

NUT 5

25

25E21

WASHER 5
